Description

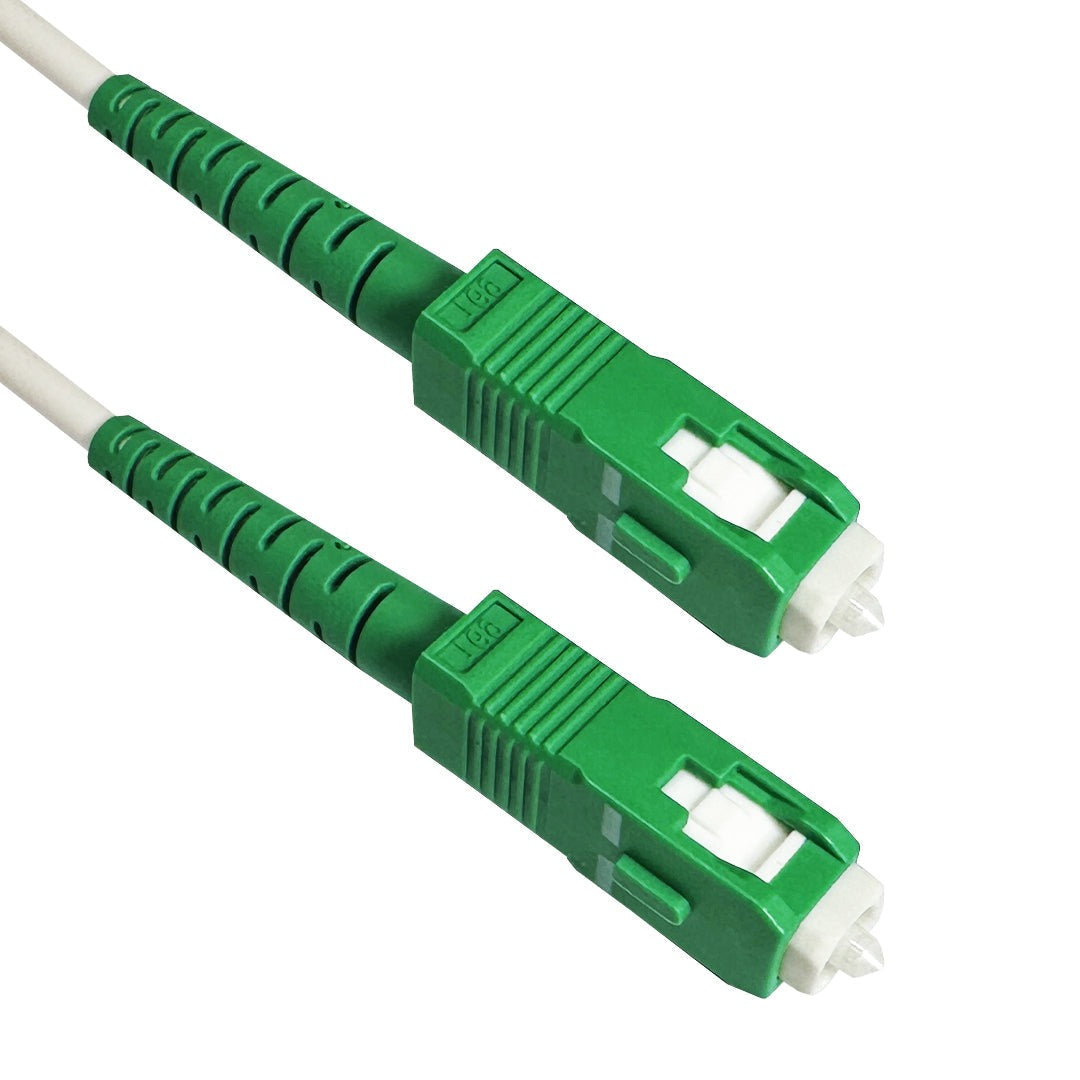

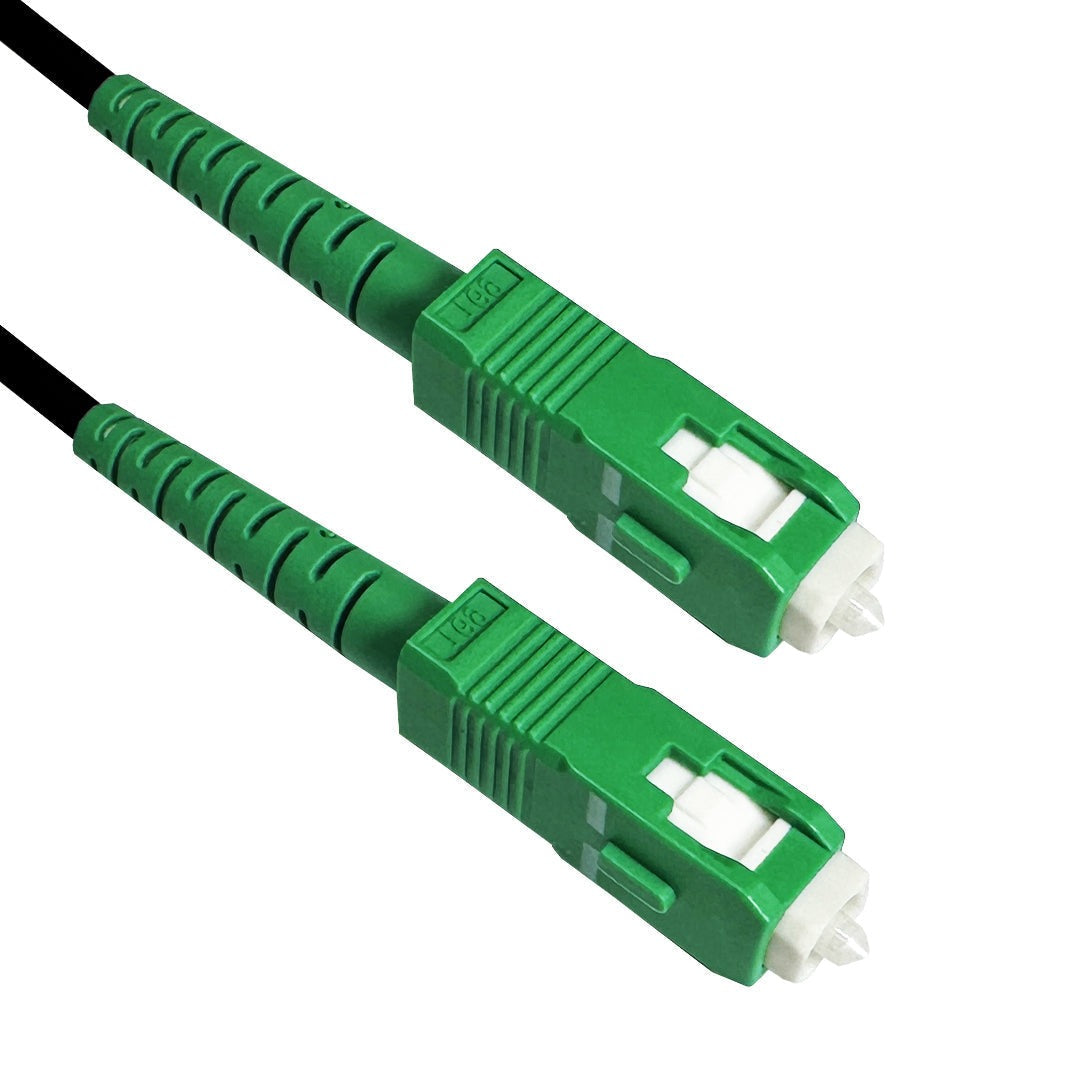

These 9 micron SC/APC fiber optic cables are made with Glass (G657B3) fiber. They are constructed with a 3mm PVC OFNR riser indoor/outdoor rated jacket. They are tested to provide the optimum data transmission and network stability. They’re typically used to connect from a service provider’s fiber outlet to the router. Compatible with Bell, Google Fiber, UniFi Dream machine and more FTTH networks & hardware.
|
Physical Characteristics
|
|
|---|---|
| Color | Black/ White |
| Cable Diameter | 3mm |
| Fiber Size | 9/125 micron |
| Fiber Type | Singlemode |
| Glass Type | Glass (G657B3) |
| Connector Ferrules | Ceramic |
| Jacket Rating | Riser (OFNR) & Indoor/Outdoor |
| Max. Tensile |
Short Time : 150N Long Time : 50N |
| Bending Radius |
Dynamic : 10D Static : 20D |
| Temperature |
Installation : -20°C ~ +50°C Storage : -40°C ~ +70°C Operating : -40°C ~ +70°C |
|
Connector(s)
|
|

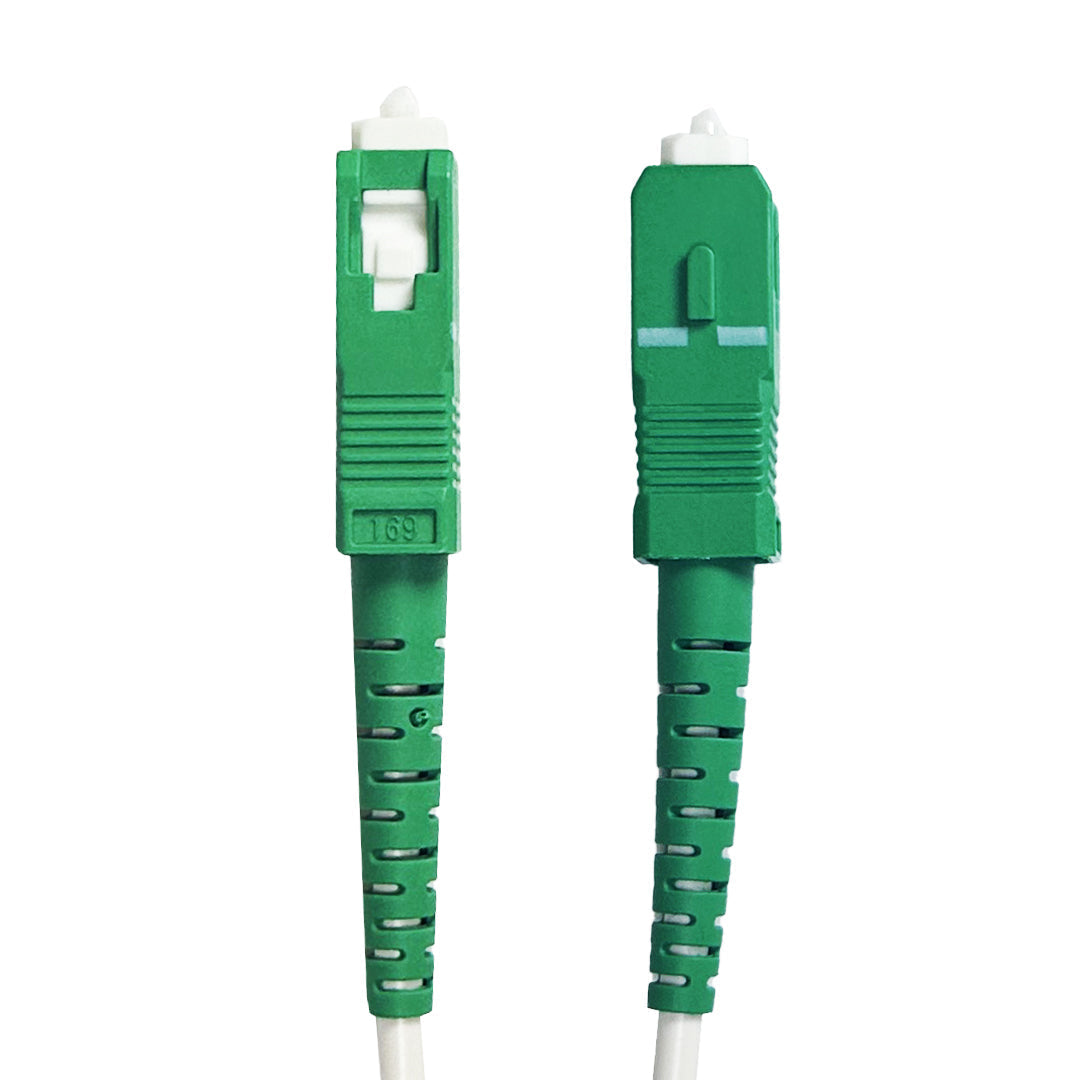

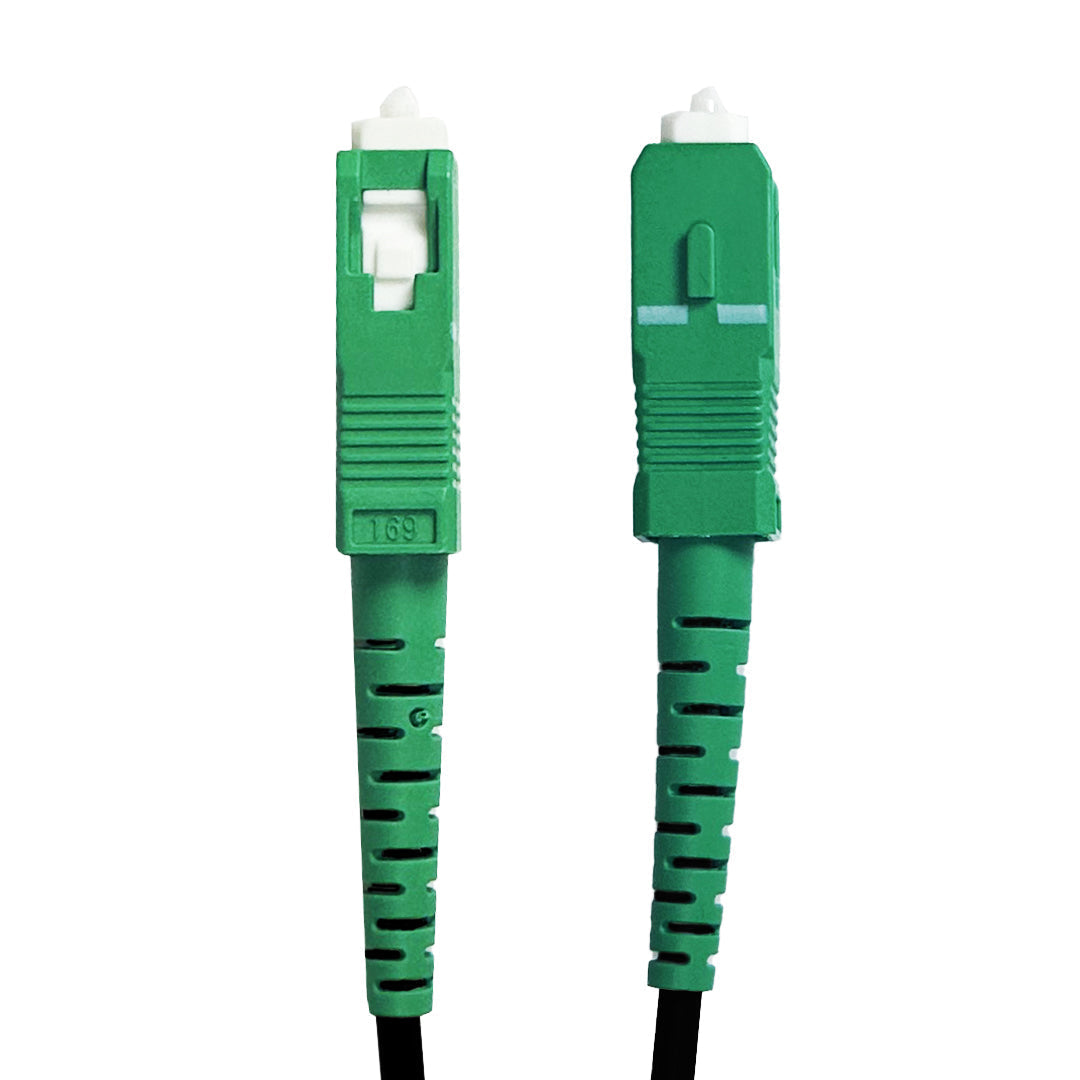

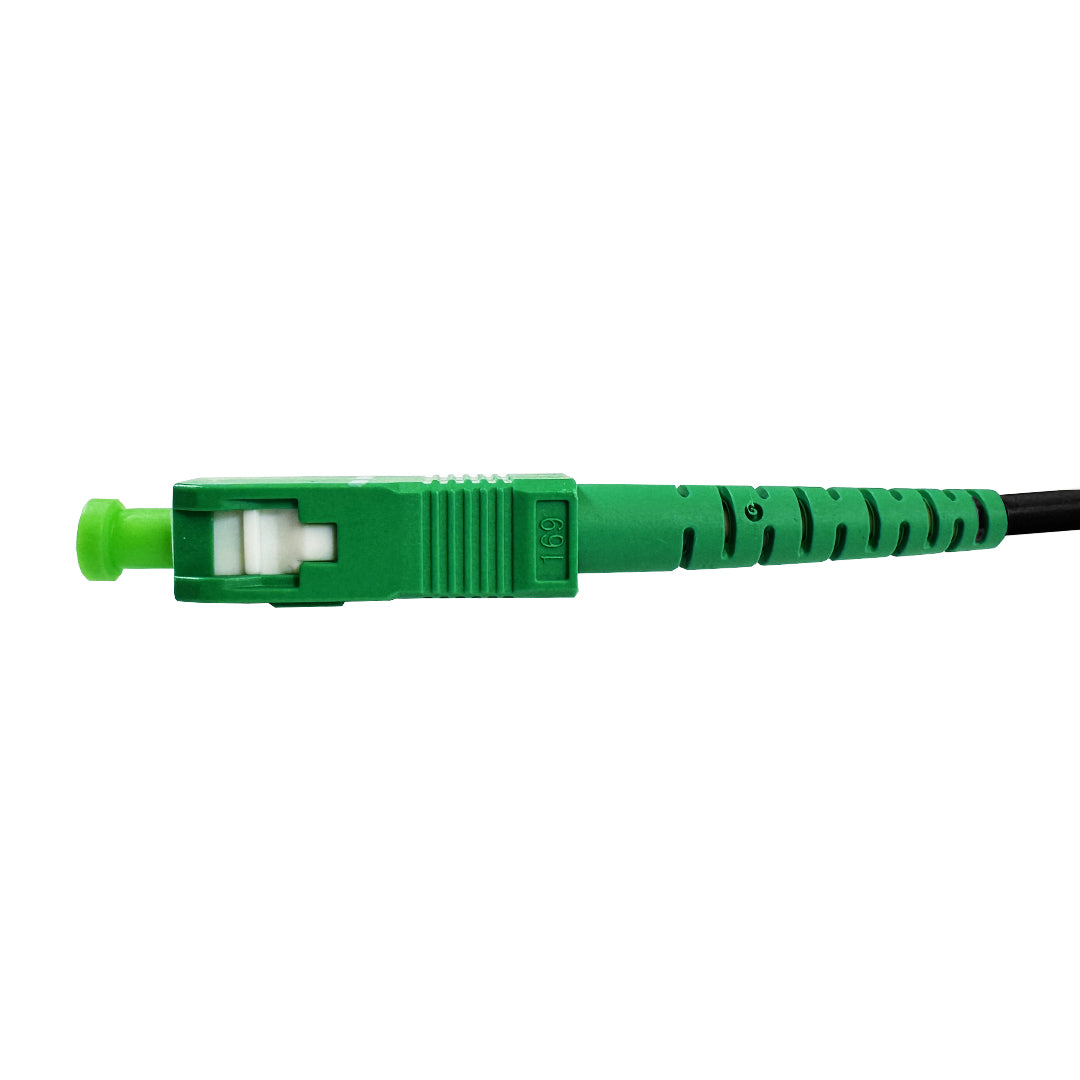

| Connector A | SC/APC Simplex Male |
| Connector B | SC/APC Simplex Male |
|
Optical Characteristics
|
|
| Mode Field Diameter |
@1310nm : 8.6±0.4?m @1550nm : 9.65±0.5?m |
| Cladding Diameter |
125.0±0.7um |
| Cladding Non-Circularity |
≤0.7% |
| Core-Cladding Concentricity Error |
≤0.5um |
| Coating Non-Circularity |
≤6.0% |
| Cladding-Coating Concentricity Error |
≤12.0um |
| Attenuation(max.) |
@1310nm : ≤0.4dB @1550nm : ≤0.3dB |
| Macro-Bending Loss |
@1550nm (1 turn x 5mm radius) : ≤0.1dB |
|
Performance
|
|
| Insertion Loss | ≤0.2 dB |
| Return Loss | ≥60 dB |
| Speed | 10 Gbps |
|
Approval
|
|
| UL, c(UL), IEC | Compliant |
|
Environmental
|
|
| RoHS | Compliant |
| Conflict Minerals | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
| 3ft – 1m | 6ft – 2m | 10ft – 3m | 15ft – 5m | 23ft – 7m | 30ft – 10m | 40ft – 12m | 50ft – 15m | 65ft – 20m | 80ft – 25m | 100ft – 30m | 131ft – 40m | 164ft – 50m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.04 lbs | 0.05 lbs | 0.06 lbs | 0.09 lbs | 0.16 lbs | 0.20 lbs | 0.21 lbs | 0.22 lbs | 0.33 lbs | 0.40 lbs | 0.49 lbs | 0.66 lbs | 0.78 lbs |
