Description
Overview

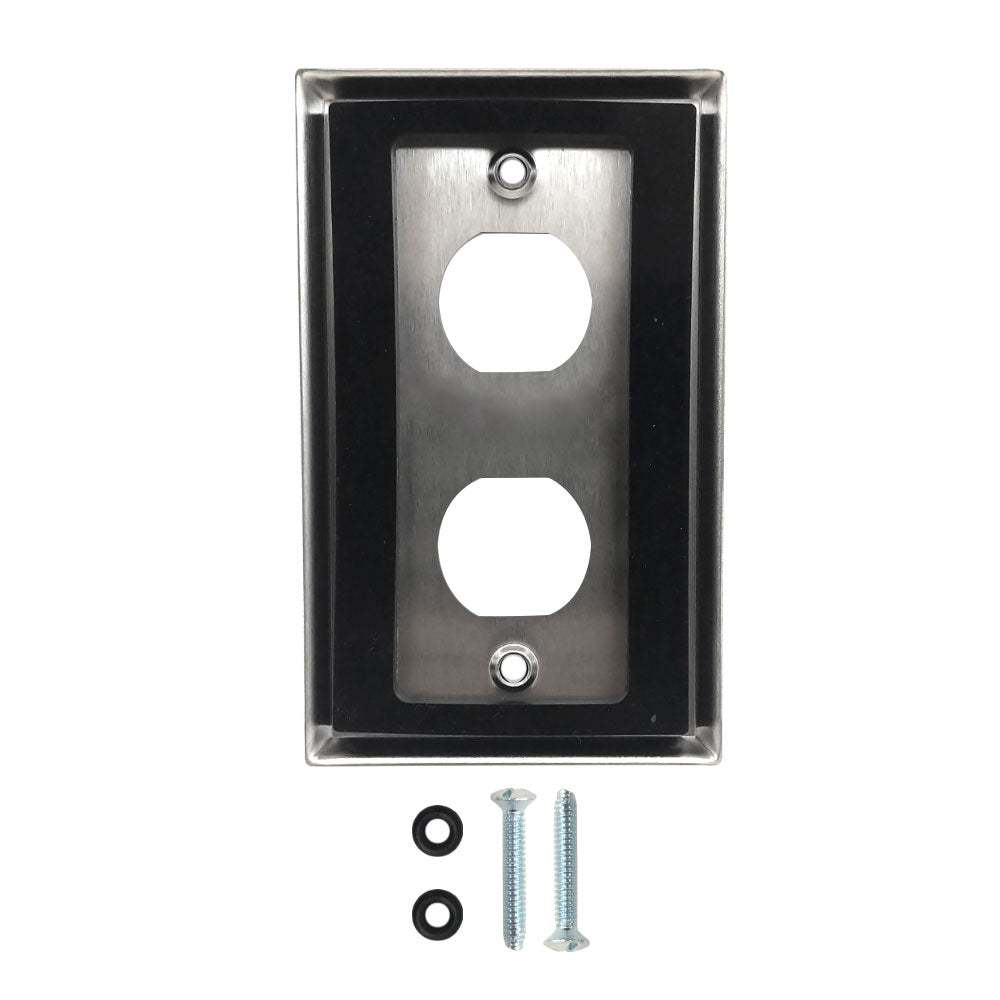

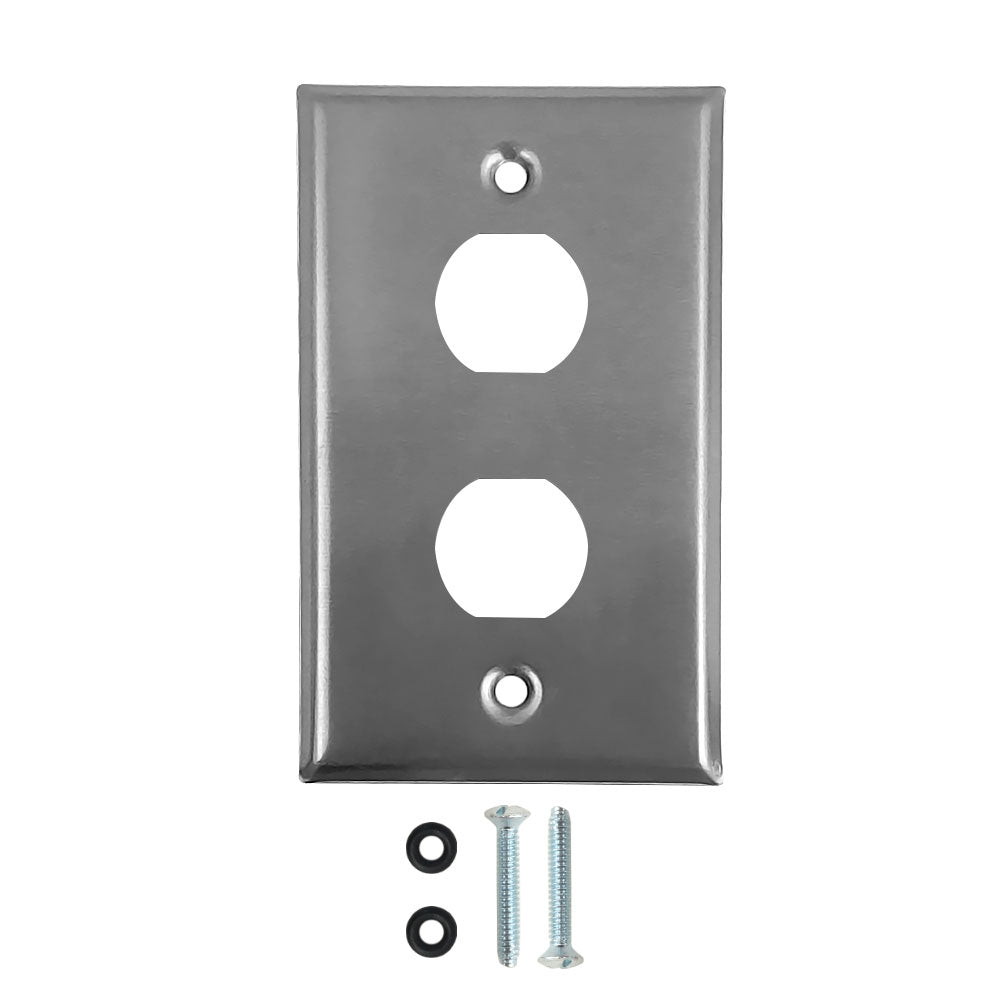

This single gang wall plate has two Ethernet
bulkhead cut-outs. It is a standard North American wall plate which
accepts bulkhead jacks and couplers. It is IP44 rated to protect network parts
from material greater than 1mm in diameter and water damage.
|
IP44 CompliantThis
Use as Part of a
|
Specifications
|
Physical Characteristics
|
||
|---|---|---|
| Color | Stainless Steel | |
| Plate Size | Single Gang | |
| Material | Stainless Steel | |
| Back Gasket | Rubber | |
| Dimensions | 115×70.6×6.65 mm (4.52×2.77×0.26 inch) | |
| Operating Temperature | -10°C to 60°C | |
| Storage Temperature | -40°C to 68°C | |
| Humidity | 10% ~ 90% RH | |
|
Cut-outs
|
||
| Ethernet Bulkhead Hole | 2 | |
|
Compatible Items
|
||
| CN-C5E-FFS-IP68 | Cat5e RJ45 Female to RJ45 Female Shielded Bulkhead Coupler – Waterproof IP68 Rated – Black | |
| CN-C6-FFS-IP68 | Cat6 RJ45 Female to RJ45 Female Shielded Bulkhead Coupler – Waterproof IP68 Rated – Black | |
| CN-C6A-FFS-IP68 | Cat6A RJ45 Female to RJ45 Female Shielded Bulkhead Coupler – Waterproof IP68 Rated – Black | |
| JK-C5P-SBK-IP68 | Cat5e RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler – Waterproof IP68 Rated – Black | |
| JK-C6P-SBK-IP68 | Cat6 RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler – Waterproof IP68 Rated – Black | |
|
Environmental
|
||
| IP Rating |
IP44 Rated when used in conjunction with waterproof coupler |
|
| RoHS | Yes | |
|
Packaging Information
|
||
| Product Weight | 0.15 lbs [0.07 kg] |
|
| Included in Package |
1 – Wall Plate |
|
