Description
Overview

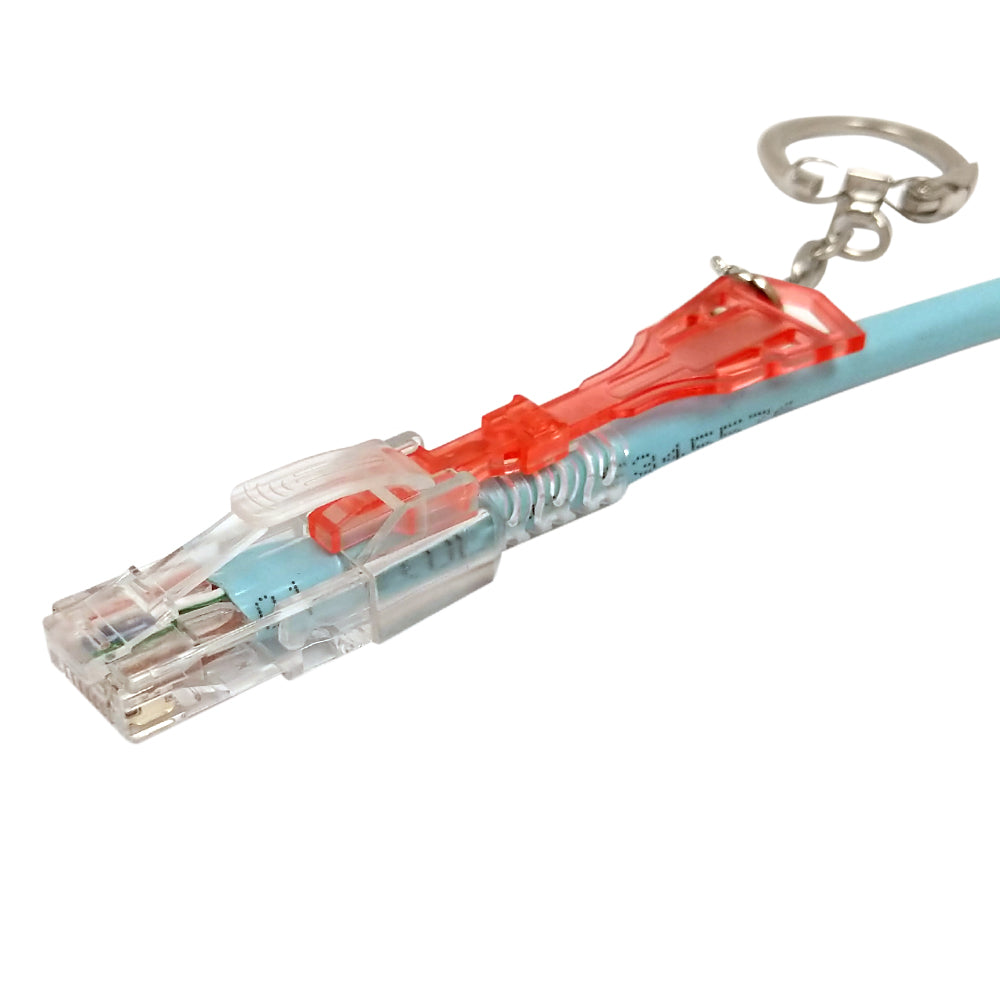

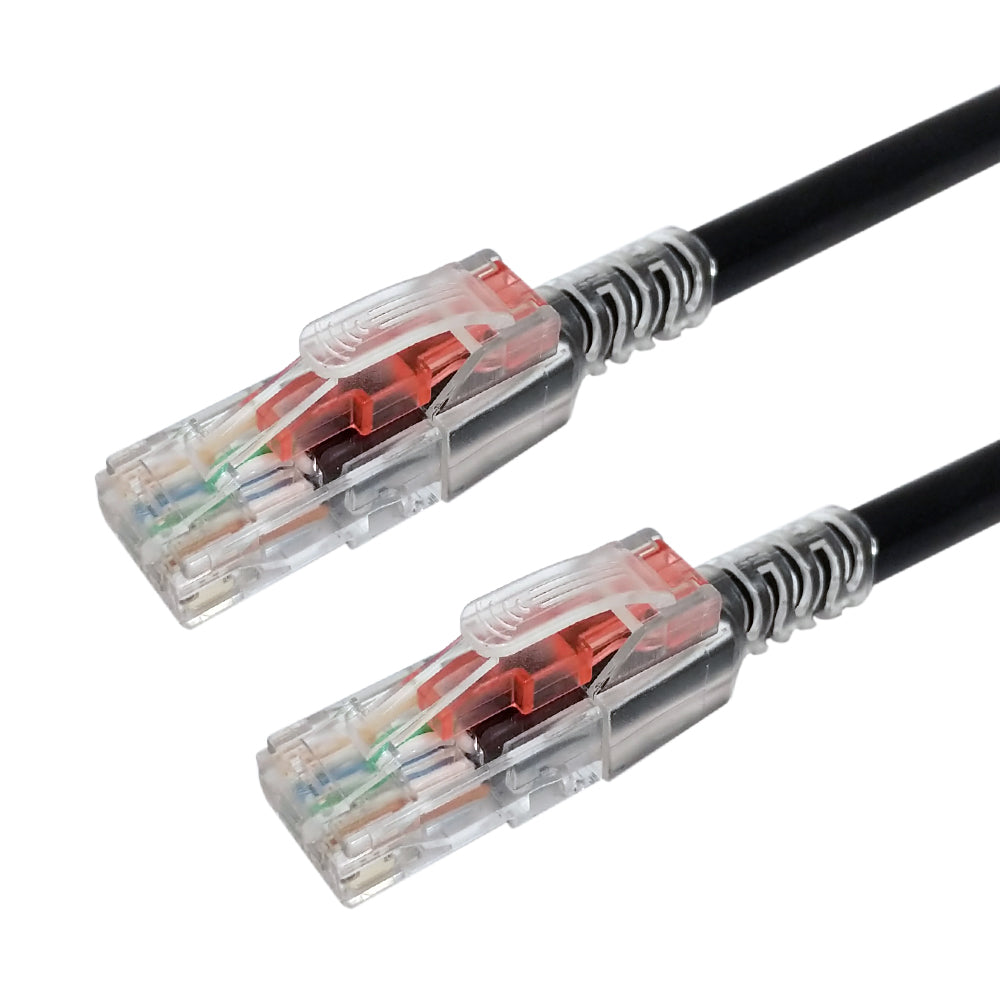

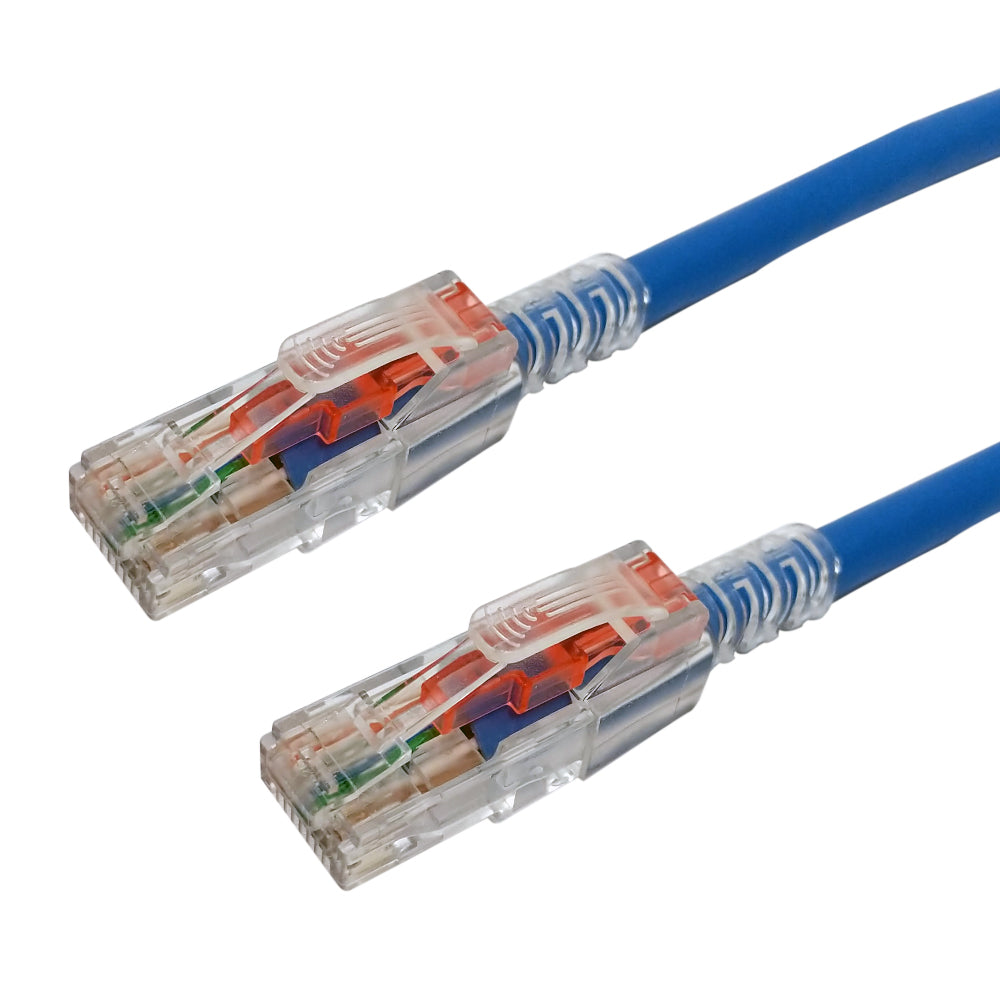

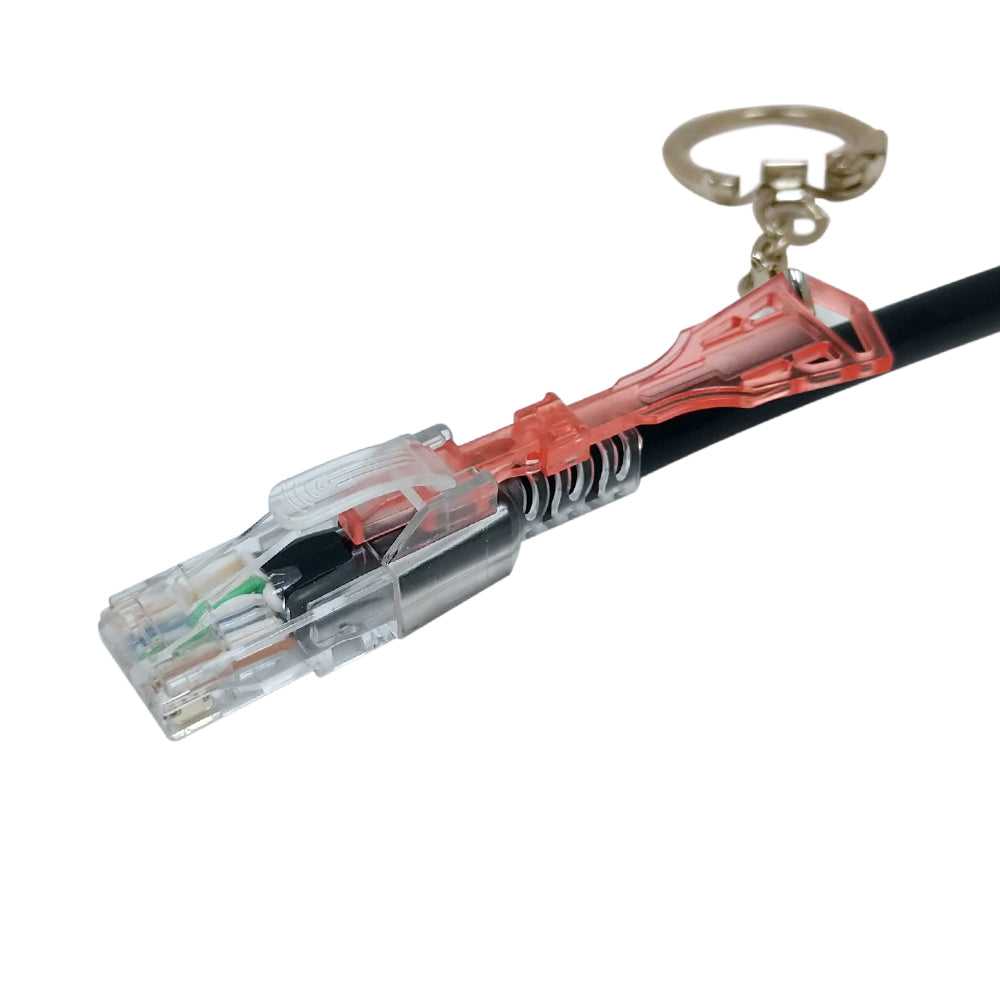

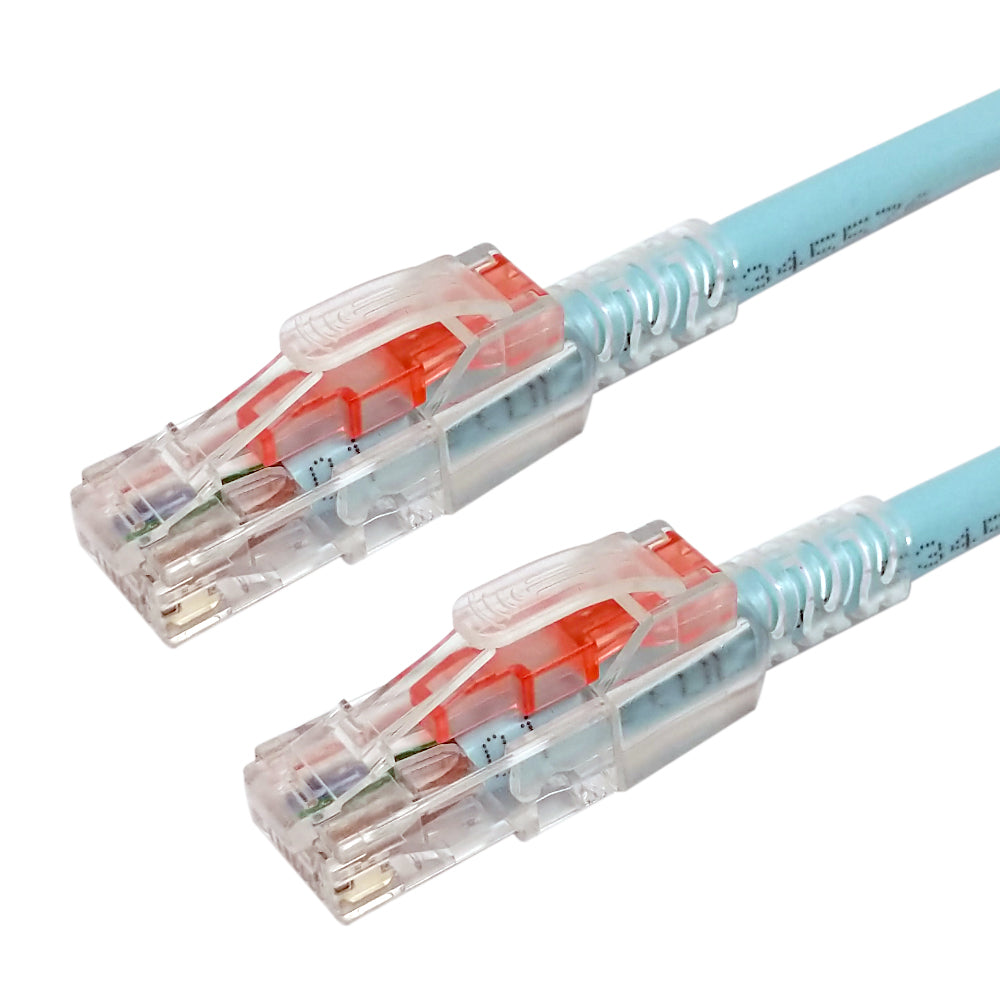

This custom Cat6a ethernet cable consists of a locking style RJ45 male on both ends. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. The plug has a push-in locking tab which helps prevent accidental disconnects for critical networking applications. Each cable comes with a key which is required to easily unlock the connector.
TERMS: non-cancelable & non-returnable
Application
Specifications
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 50 µ-inches |
| Cable Diameter | 6.2mm |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Color Code | 568B |
| Temperature Rating | 75 Deg C |
| Jacket Type | PVC |
|
Connectors
|
|
| Connector A | RJ45 Long Body Male (Locking Style) |
| Connector B | RJ45 Long Body Male (Locking Style) |
| Performance | |
| Frequency | 550 MHz |
| Speed | 10Gb |
| Approvals | |
| c(UL)us | Compliant – Cable |
| ETL Verified | Compliant |
| ANSI/TIA – 568 – C.2 | Compliant |
| ISO/IEC 11801 | Compliant |
| EN 50173-1 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Materials | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
Reviews
There are no reviews yet.
