Description
Overview

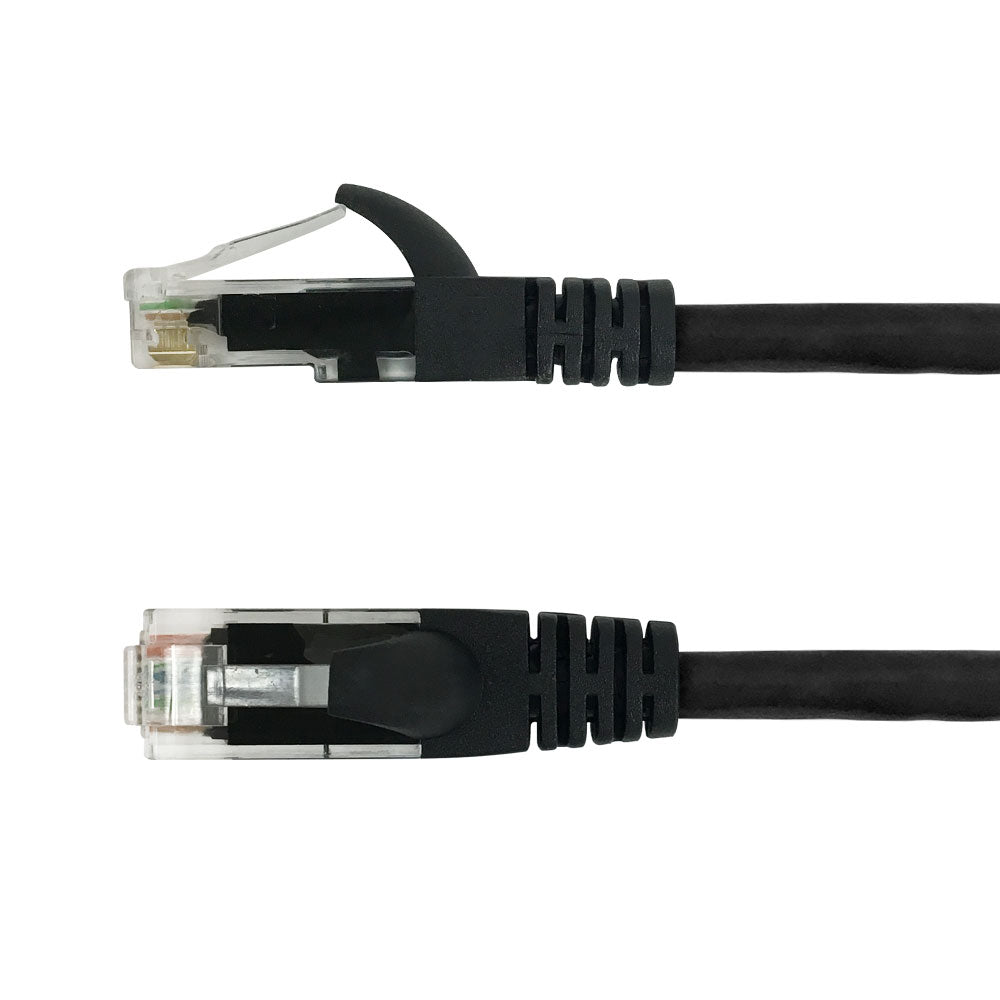

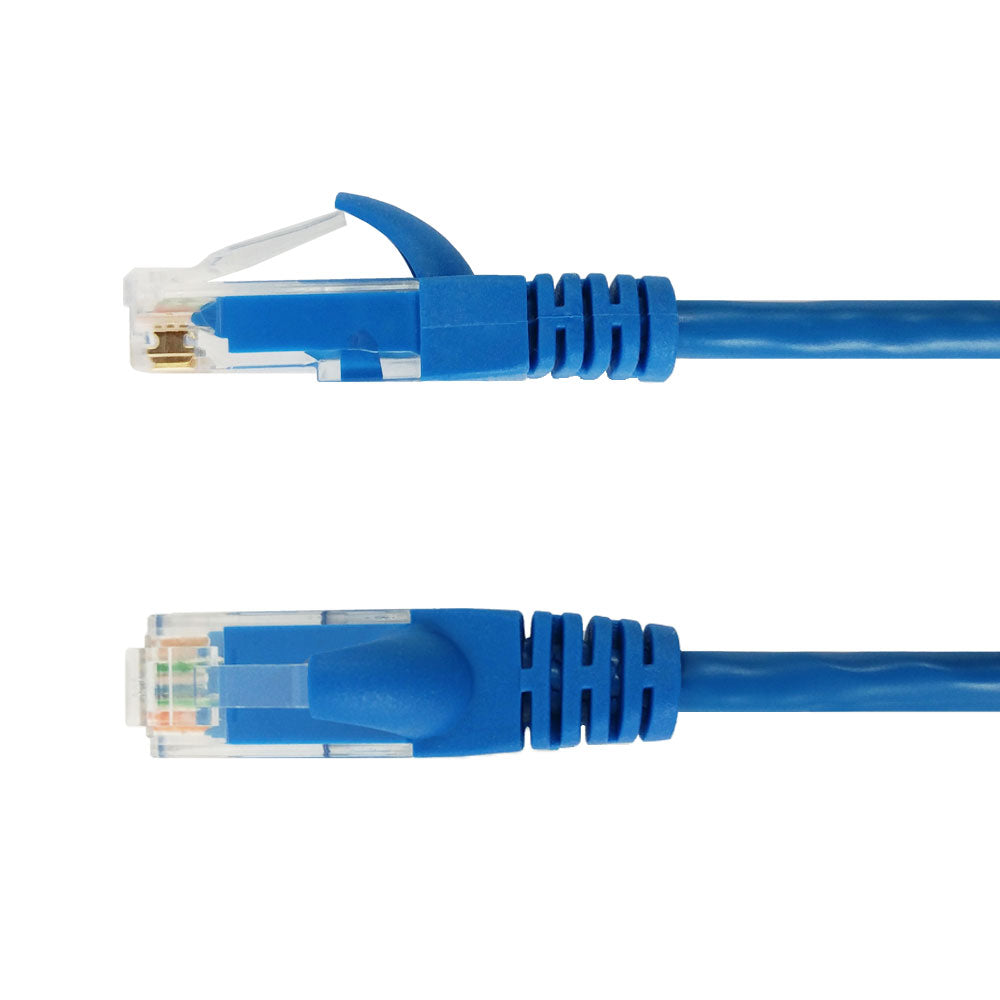

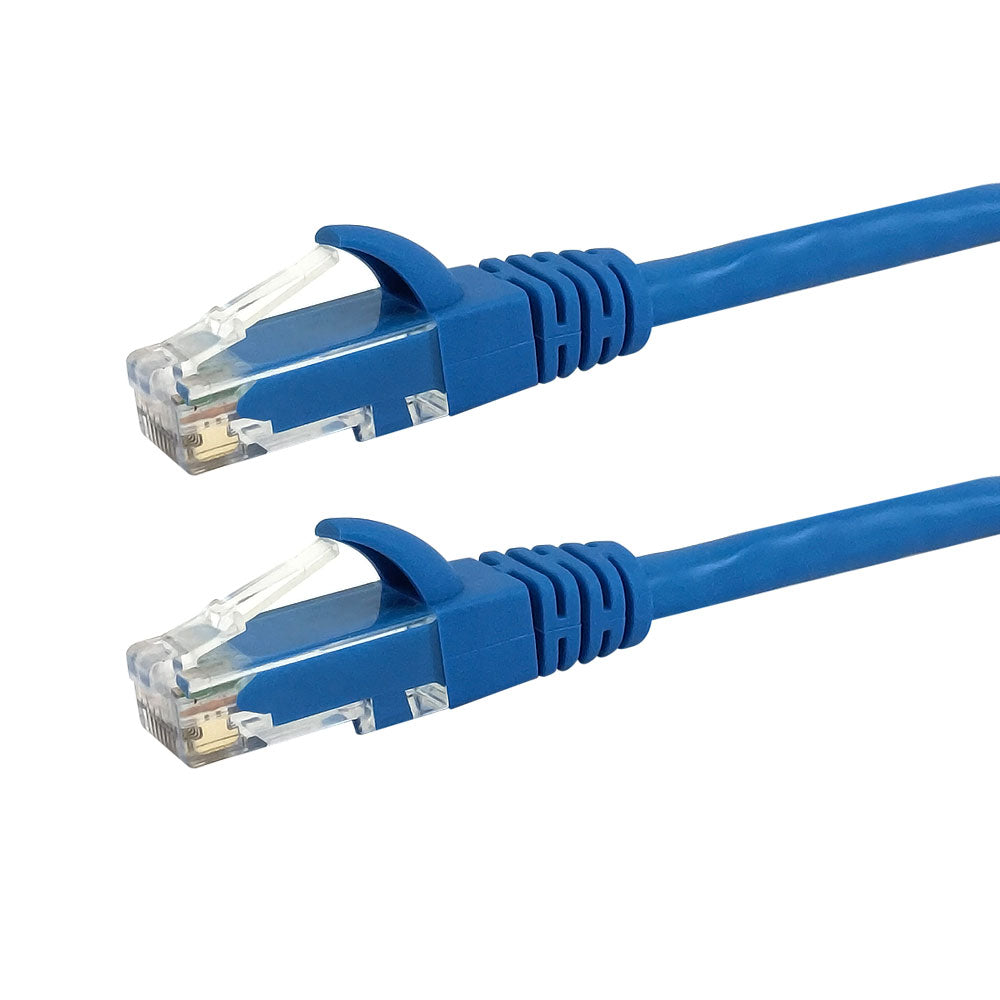

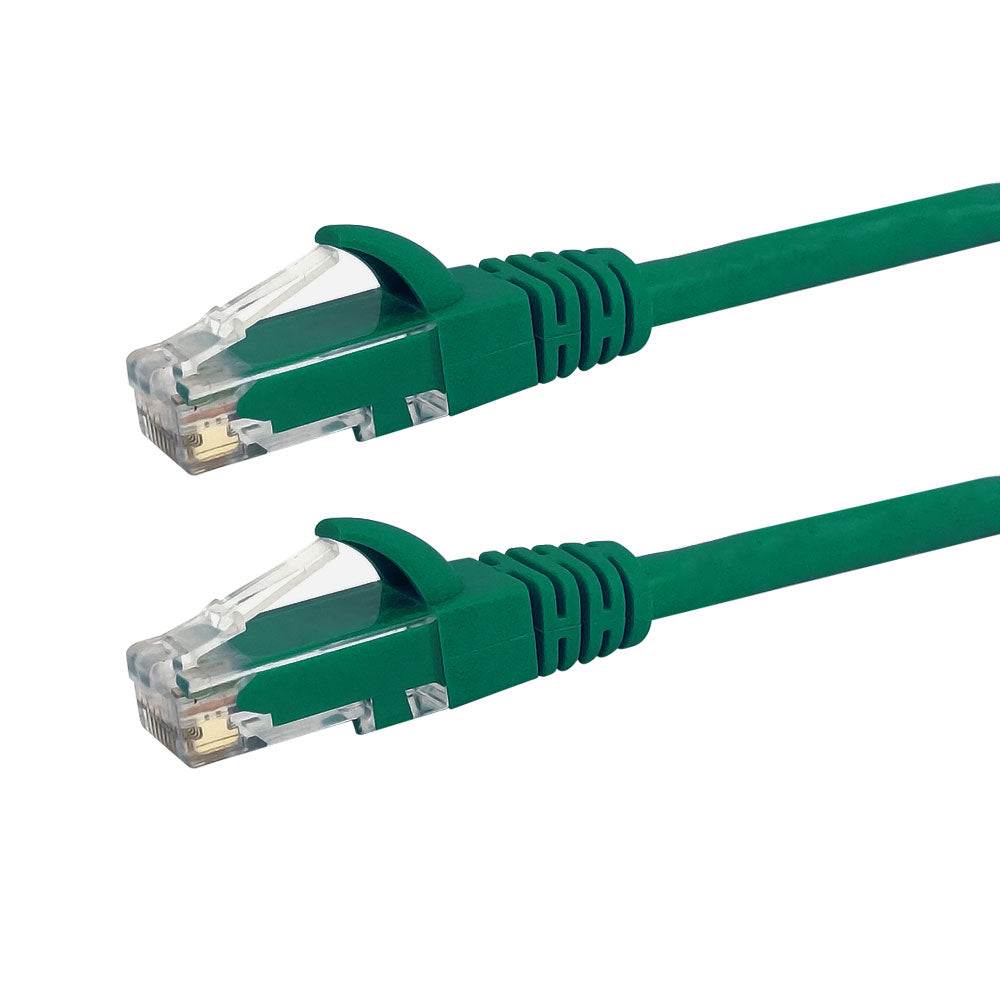

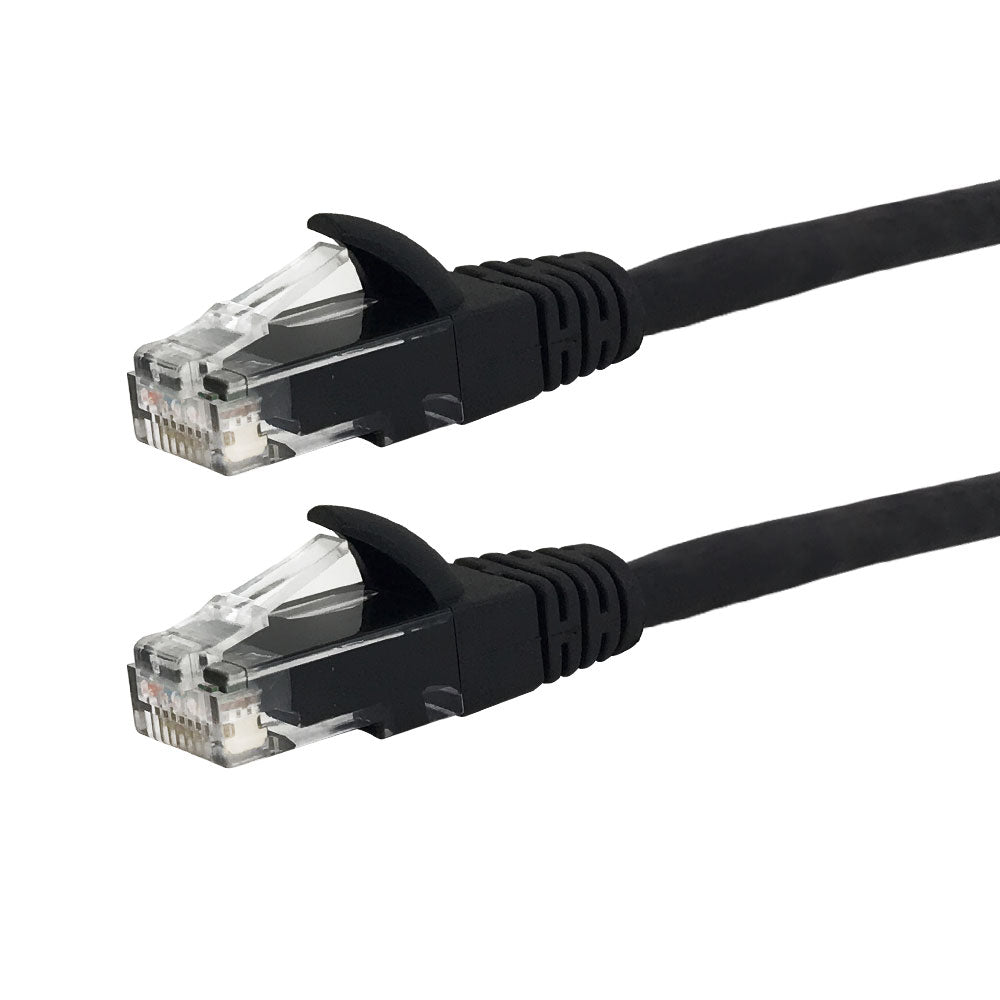

This Cat5e ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. These cables are Fluke® Cat5e patch cable certified and come with an individual test report. The cable jacket is also CMR (riser) fire rated.
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50µ-in Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Fluke® Patch Cable CertifiedOur cables are 100% tested to pass a Fluke® CAT5e patch cable test.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black/Blue/Green/Grey/Orange/Pink/Purple/Red/White/Yellow |
| Connector Plating | Gold Plated 50 µ-inches |
| Cable Diameter | 5.5mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Color Code | 568B |
| Molding | Molded Tab Style Strain Relief |
| Jacket Temperature Rating | -10C to +75C |
| Jacket Type | PVC |
|
Connectors
|
|
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Fluke® CAT5e Patch Cable Test | Compliant |
| Frequency | 350 MHz |
| Approvals | |
| c(UL)us | Compliant – Cable |
| ETL Verified | Compliant |
| ANSI/TIA – 568 – C.2 | Compliant |
| ISO/IEC 11801 | Compliant |
| EN 50173-1 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Materials | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
