Description

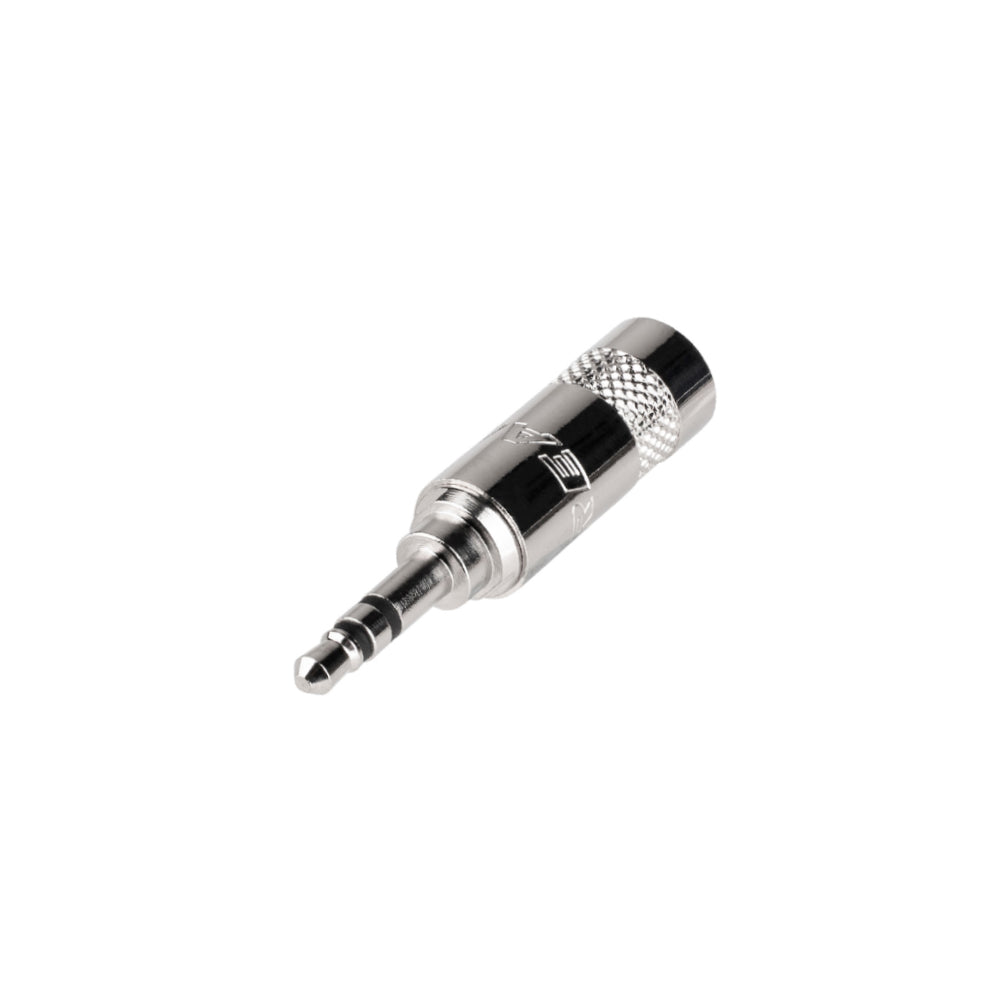

This heavy duty professional plug is typically used for guitar applications, audio cables, snakes, speakers, amplifiers and mixing decks.

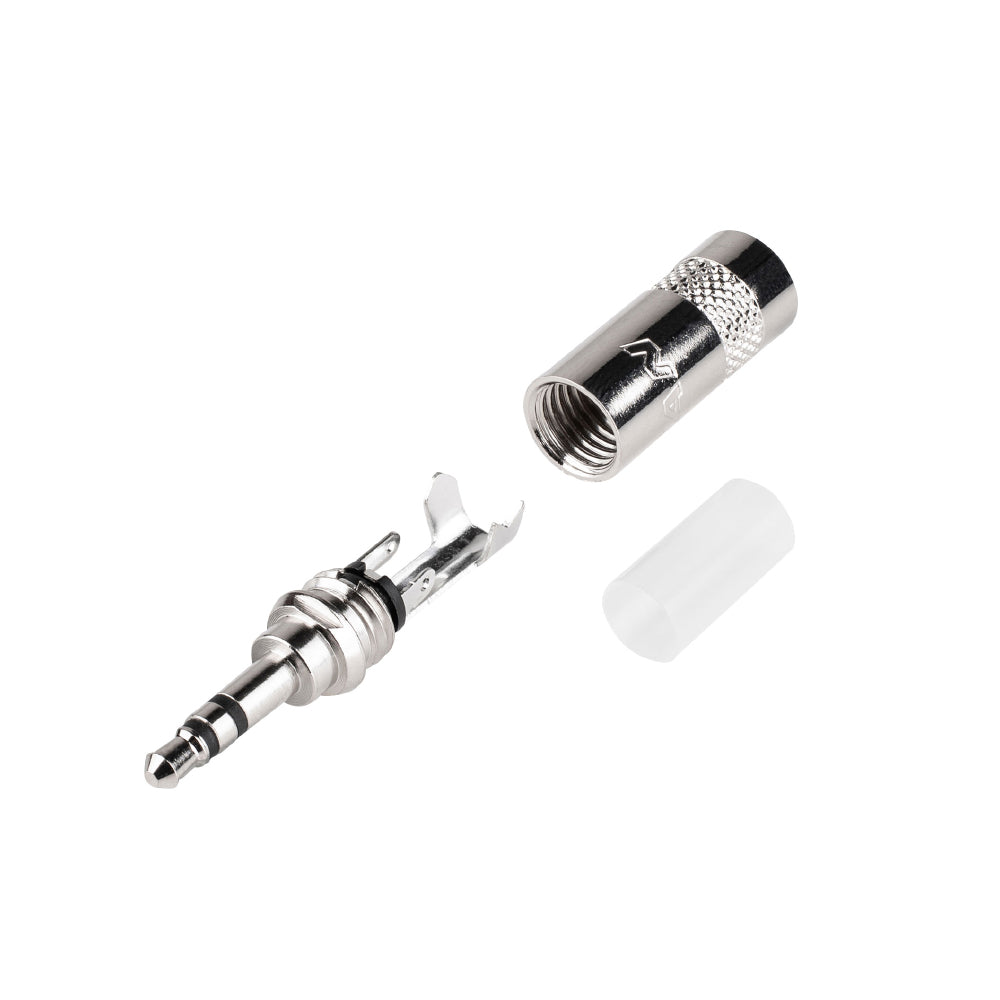

| Physical Characteristics | |
|---|---|
| Plug Finger | Brass |
| Plug Finger Plating | Nickel |
| Sleeve | Zinc |
| Sleeve Plating | Nickel |
| Soldering Contact | Phosphor Bronze |
| Soldering Contact Plating | Tin |
| Cable Clamp | Steel |
| Cable Clamp Plating | Tin |
| Housing | Zinc |
| Housing Plating | Nickel |
| Retainer Ring | PA66+30%GF |
| Insulation | PP |
| Temperature Rating | -25℃ to +70℃ |
| Electrical Characteristics | |
| Contact Resistance | ≤ 10 mΩ |
| Dielectric Strength | 0.5 KVdc 50HZ |
| Insulation Resistance | > 200 MΩ (initial) |
| Mechanical Characteristics | |
| Cable O.D. | Max 4.5 mm for standard outlet Max 6.4 mm for large outlet ( * L) Max 8.5 mm for large outlet ( * LL) |
| Lifetime | > 5000 Mating Cycles |
| Insertion and Withdrawal Force | 5 – 40 N |
| Environmental | |
| Solderability | Complies with IEC 68-2-20 |
| Manufacturer Information | |
| Neutrik Part Number | NYS231 |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
