Description

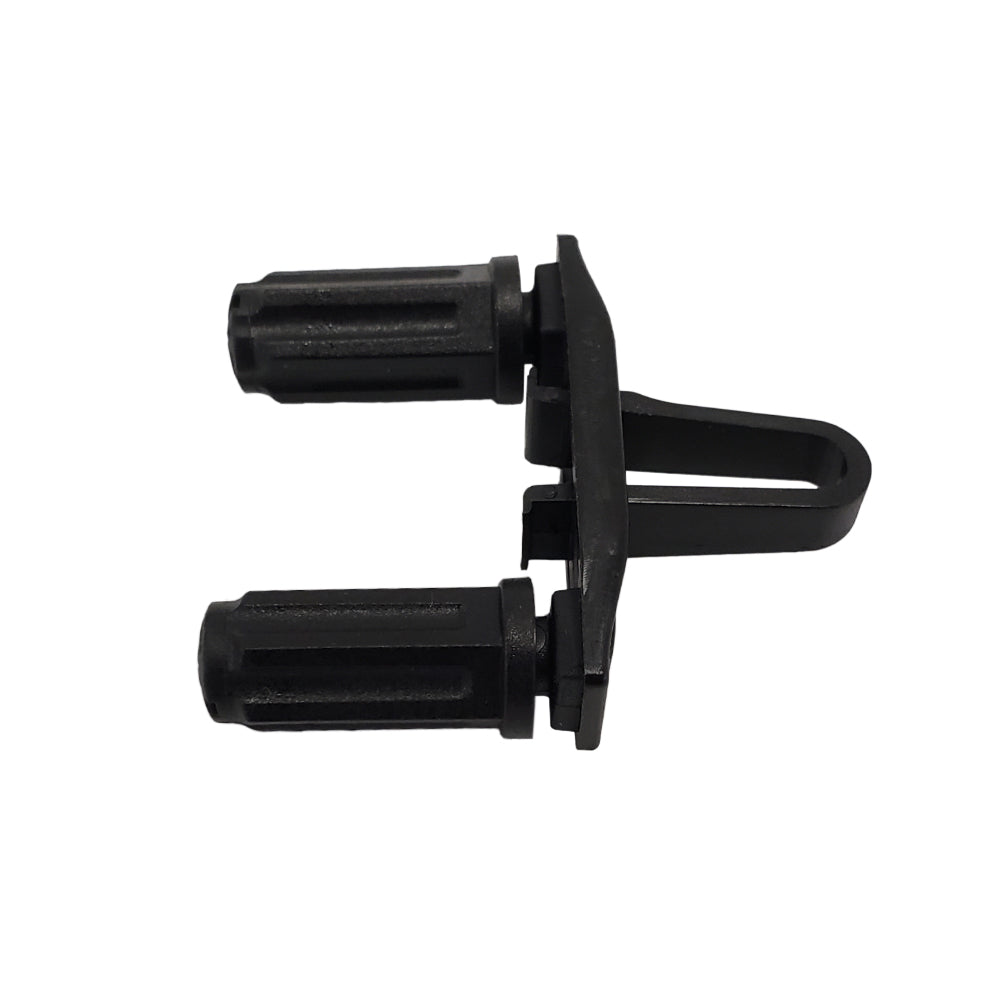

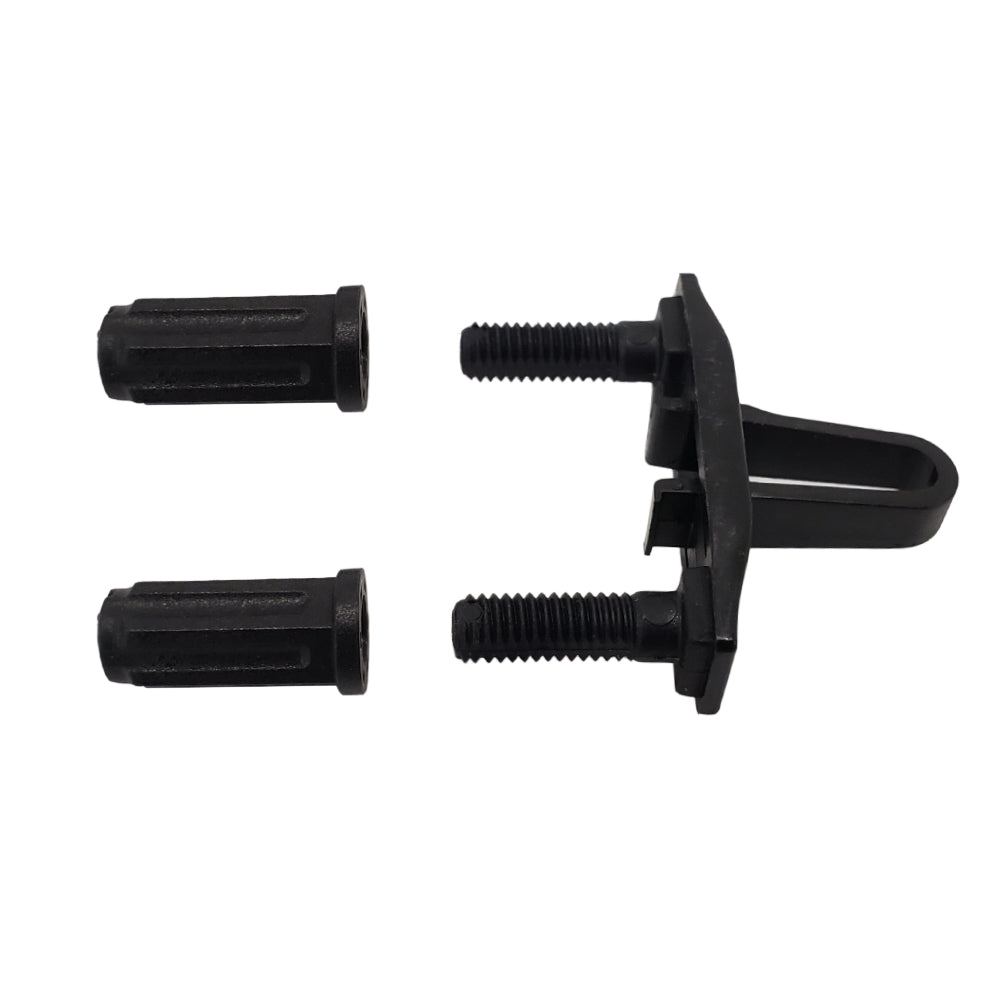

This Rackstud is an alternative to cage nuts and occupies 1U of rack space. It is typically used to mount IT, Pro A/V, Security and Telco equipment in 19 inch racks. Mounting 1U equipment is three times faster than cage nuts and washers are not needed for installation.
Features:
- Universal 1U replacement for cage nuts
- Installs 3x faster
- Only 2 required. No washers needed
- All the benefits of the Series II design
- New nut with PZ2 screwdriver slot
| Physical Characteristics | |
|---|---|
| Color | Black |
| Vertical Rail Hole | EIIA-310 requirement: 9.50mm (0.374″) Rackstuds DUO: 9.2 to 9.89mm (0.362″ to 0.389″) |
| Vertical Rail Thickness | EIA-310: Not defined Rackstuds DUO: 2.0mm to 3.2mm (0.787″ to 0.125″) |
| Maximum Equipment Weight | 20kg (44lbs) |
| Approvals | |
| CE | Compliant |
| Packaging Information | |
| Package Quantity | 50 – DUO studs 100 – Gen5 nuts |
| Product Weight | 0.98 lbs [0.44kg] |
