Description

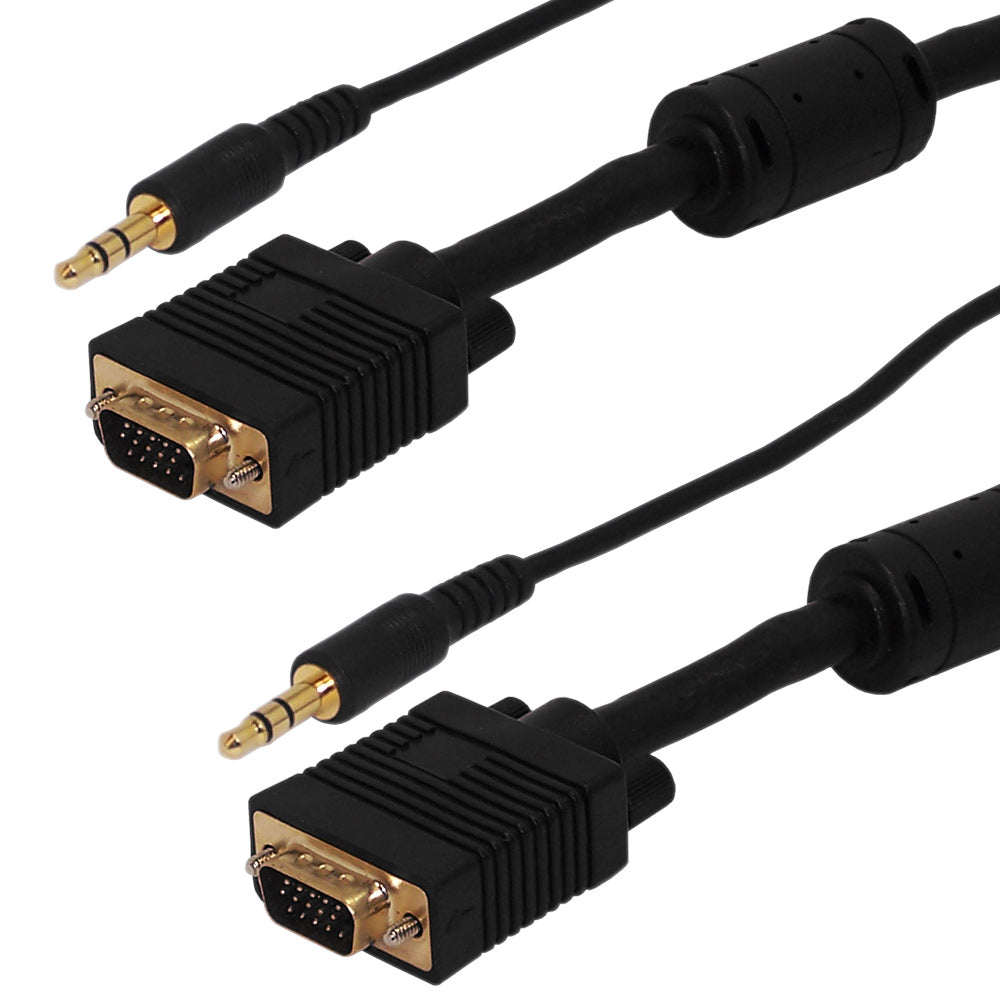

This SVGA cable consists of a HD15 male plus 3.5mm male on one end and a HD15 male plus 3.5mm male on the other end. It is typically used to connect VGA outputs such as computers/laptops to VGA inputs such as a VGA monitor.
- Constructed of a combination of 3 mini coax cables and 9 conductors for optimal SVGA video quality
- This premium double shielded construction is designed to minimize any signal loss or ghosting that may appear with lesser quality cables
- Ferrite cores placed at either end of the cable further enhance the video quality
- Fully CL2/FT4 fire rated for in-wall use
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Wire Gauge – Coax | 3 – 28AWG Mini-Coax |
| Wire Gauge – Conductors | 4.5 – 24AWG Pairs |
| Wire Gauge – Audio | 2C – 24AWG Conductors |
| Cable Diameter | 9.0 mm |
| Shielding | 85% Copper Braid, 100% Mylar Foil, Ferrite Cores |
| Jacket Fire Rating | CL2/FT4 |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
|
Connector(s)
|
|
| Connector A | 1 – SVGA HD15 Male 1 – 3.5mm Male |
| Connector B | 1 – SVGA HD15 Male 1 – 3.5mm Male |
|
Performance
|
|
| Resolution | 1600 x 1200px |
| Impedance | 75 ohm |
|
Approvals
|
|
| c(UL)us | Approved Cable |
|
Environmental
|
|
| RoHS | Compliant |
| Reach | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 – Cable |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
