Description

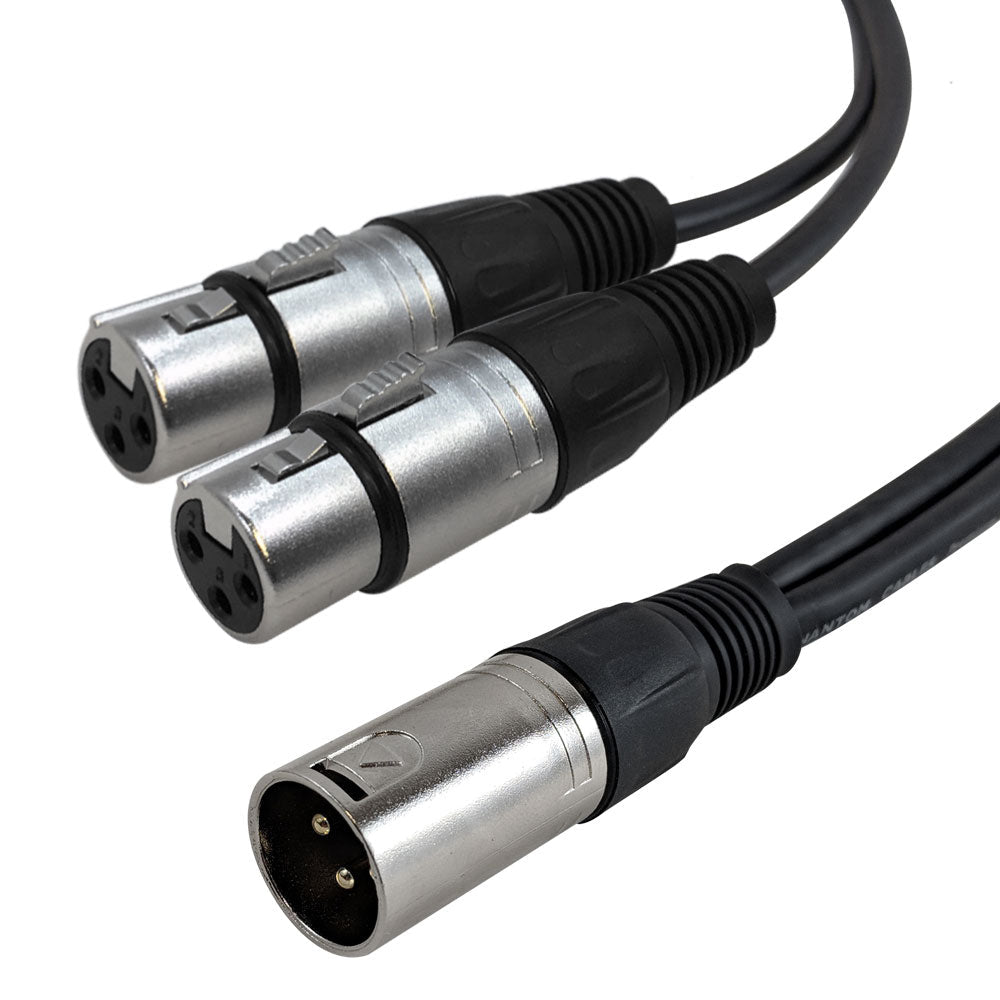

This splitter cable has an XLR male on one end and two XLR females on the other. It is typically used to split a microphone or XLR output into two duplicate balanced channels.
- Two separate 24AWG cables breakout directly from the source connector
- Breakout begins directly from the source connector
- Hi-flex balanced cable is used to capture all highs & lows for optimum audio performance
- Braided shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors and a durable cable jacket is ultra-flexible to maximize mobility
- FT4 riser fire rated jacket for in-wall use
- Lead-free solder is used in order to reduce loss and maximize conductivity
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Cable Diameter | 5.0mm |
| Wire Gauge | 24AWG |
| Jacket Material | PVC – Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 90% Bare Copper Braid, 100% Aluminum Mylar Foil |
| Strain Relief | Metal Shell |
|
Connectors
|
|
| Connector A | XLR Male |
| Connector B | XLR Female |
| Connector C | XLR Female |
|
Approvals
|
|
| cUL | Compliant – Cable |
|
Environmental
|
|
| RoHS | Compliant |
|
Package Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
