Description

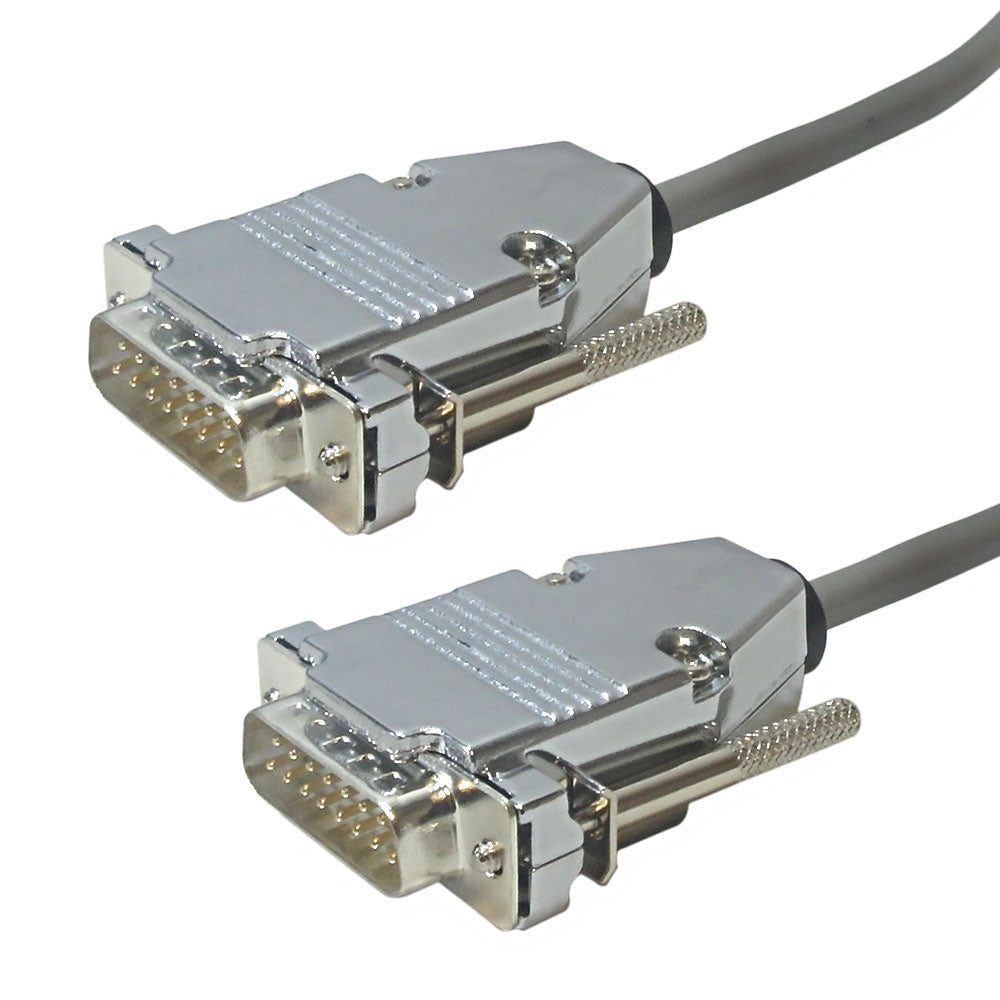

This T1 cable is constructed using two pair shielded T1 rated cable and consists of DB15 male connector on both ends. It is designed to be used specifically for T1 telecommunication applications where straight through wiring is required.
| Physical Characteristics |
| Color |
Grey |
| Shielded |
Compliant |
| Cable Rating |
T1 |
| Wire Gauge |
24 AWG |
| Impedance |
100 Ohm |
| Wiring |
Straight Through |
| Connectors |
| Connector A |
DB15 male |
| Connector B |
DB15 male |
| Pin-outs |
|
DB15 Male
|
|
DB15 Male
|
|
11
|
Black
|
11
|
|
3
|
White
|
3
|
|
4
|
Drain W/B
|
4
|
|
9
|
Red
|
9
|
|
1
|
Green
|
1
|
|
2
|
Drain R/G
|
2
|
|
| Environmental |
| RoHS |
Compliant |
| Packaging Information |
| Package Quantity |
1 |
| Warranty Information |
| Warranty |
Limited Lifetime |
Cable Weights
| 3ft |
7ft |
10ft |
15ft |
25ft |
50ft |
75ft |
100ft |
125ft |
150ft |
| 0.20lbs |
0.50lbs |
0.70lbs |
0.90lbs |
1.60lbs |
3.20lbs |
4.80lbs |
6.40lbs |
8.00lbs |
9.60lbs |
