Description

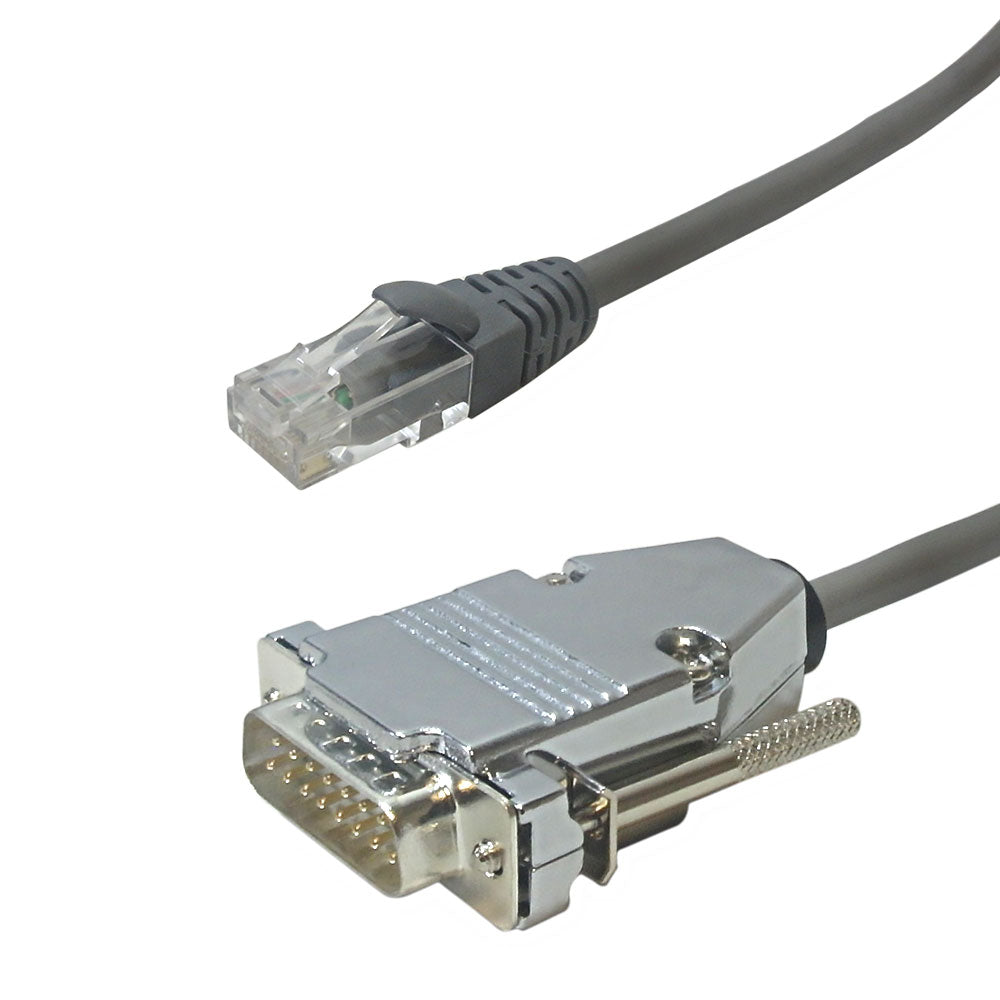

This T1 cable is constructed using two pair shielded T1 rated cable and consists of a RJ48C male connector on one end and a DB15 male connector on the other. It is designed to be used specifically for T1 telecommunication applications where cross-over wiring is required.
| Physical Characteristics |
| Color |
Grey |
| Shielded |
Compliant |
| Cable Rating |
T1 |
| Wire Gauge |
24 AWG |
| Impedance |
100 Ohm |
| Wiring |
Cross-Over |
| Connectors |
| Connector A |
RJ48C male |
| Connector B |
DB15 male |
| Pin-outs |
|
RJ48C
|
|
DB15
|
|
1
|
Black
|
9
|
|
2
|
White
|
1
|
|
3
|
Drain W/B
|
4
|
|
4
|
Red
|
11
|
|
5
|
Green
|
3
|
|
6
|
Drain R/G
|
2
|
|
| Environmental |
| RoHS |
Compliant |
| Packaging Information |
| Package Quantity |
1 |
| Warranty Information |
| Warranty |
Limited Lifetime |
Cable Weights
| 3ft |
7ft |
10ft |
15ft |
25ft |
50ft |
75ft |
100ft |
125ft |
150ft |
| 0.20lbs |
0.50lbs |
0.70lbs |
0.90lbs |
1.60lbs |
3.20lbs |
4.80lbs |
6.40lbs |
8.00lbs |
9.60lbs |
