Description

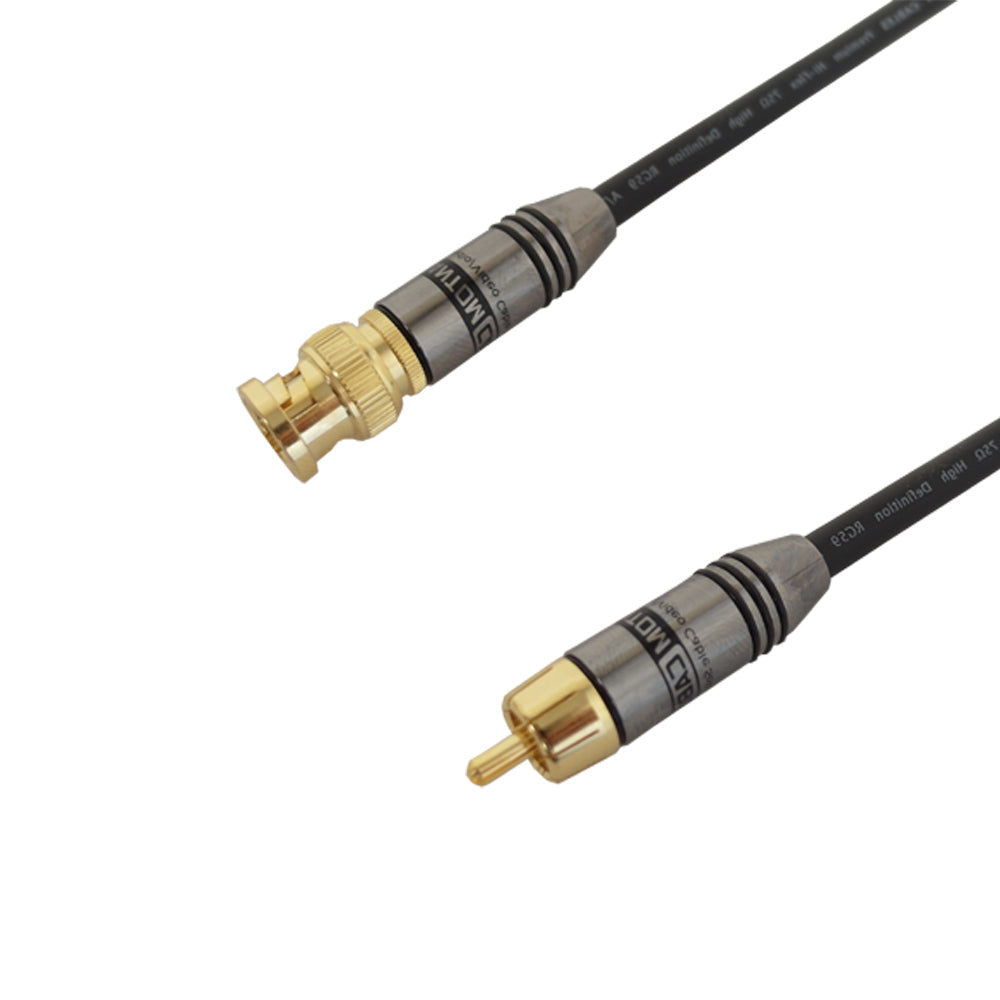

This premium cable consists of a RCA male connector on one end and a BNC connector on the other end. It is used to connect a professional video camera to a video display.
- Constructed of low-loss, High Definition 75 ohm multi-stranded, heavy gauge cable for premium performance and maximum flexibility
- FPE dielectric insulation allows for a stable velocity of propagation therefore minimizing possible timing delays
- Cables nominal capacitance is an exceptional 18.6 pf/ft and has a nominal attenuation of 3.00 dB/100ft
- Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
- Durable cable jacket is ultra flexible to maximize mobility
- High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
- The connector backshells are made of a durable, zinc plated metal alloy
- Lead-free solder is used in order to reduce loss and maximize conductivity
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 22AWG Stranded |
| Cable Type | RG59 |
| Jacket Material | PVC – Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 95% Bare Copper Braid, 100% Aluminum Mylar Foil |
| Insulation | Foam Polyethylene |
| Strain Relief | Metal Shell |
|
Performance
|
|
| Impedance | 75 Ohm |
| Velocity of Propagation | 78% |
| Capacitance | 18.6 PF/FT |
|
Connector(s)
|
|
| Connector A | 1 – RCA Male |
| Connector B | 1 – BNC Male |
|
Approvals
|
|
| c(UL)us | Compliant – Cable |
|
Environmental
|
|
| RoHS | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 – Cable |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
