Description

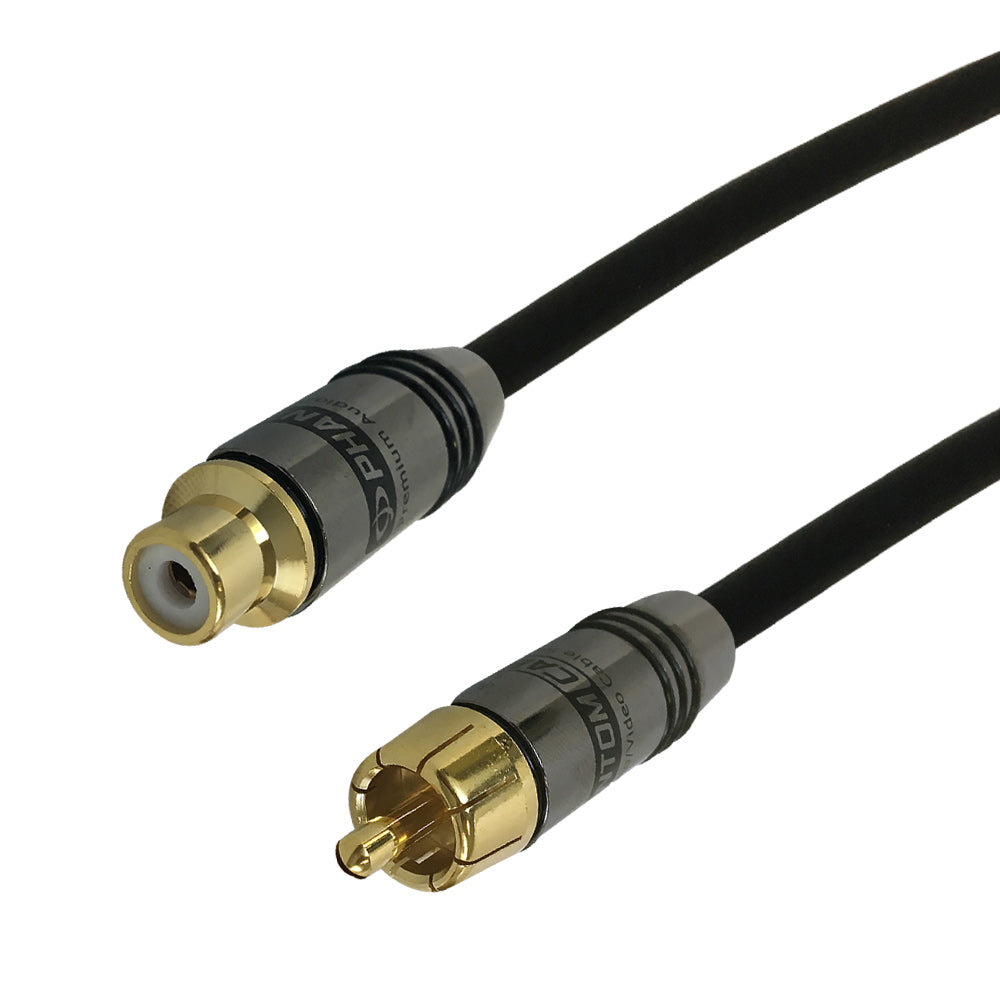

This cable consists of RCA male connector on one end, and a RCA female connector on the other end. It is typically used to extend a composite video cable.
- Constructed of low-loss, High Definition 75 ohm multi-stranded, heavy gauge cable for premium performance and maximum flexibility
- FPE dielectric insulation allows for a stable velocity of propagation therefore minimizing possible timing delays
- Cables nominal capacitance is an exceptional 18.6 pf/ft and has a nominal attenuation of 3.00 dB/100ft
- Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
- Durable bonded cable jacket is ultra flexible to maximize mobility
- High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
- The connector backshells are made of a durable, zinc plated metal alloy
- Lead-free solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 22AWG Stranded |
| Cable Type | RG59 |
| Jacket Material | PVC – Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 95% Bare Copper Braid, 100% Aluminum Mylar Foil |
| Insulation | Foam Polyethylene |
| Strain Relief | Metal Shell |
| Performance | |
| Impedance | 75 Ohm |
| Velocity of Propagation | 78% |
| Capacitance | 18.6 PF/FT |
| Connector(s) | |
| Connector A | 1 – RCA Male |
| Connector B | 1 – RCA Female |
| Approvals | |
| c(UL)us | Compliant – Cable |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 – Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
