Description

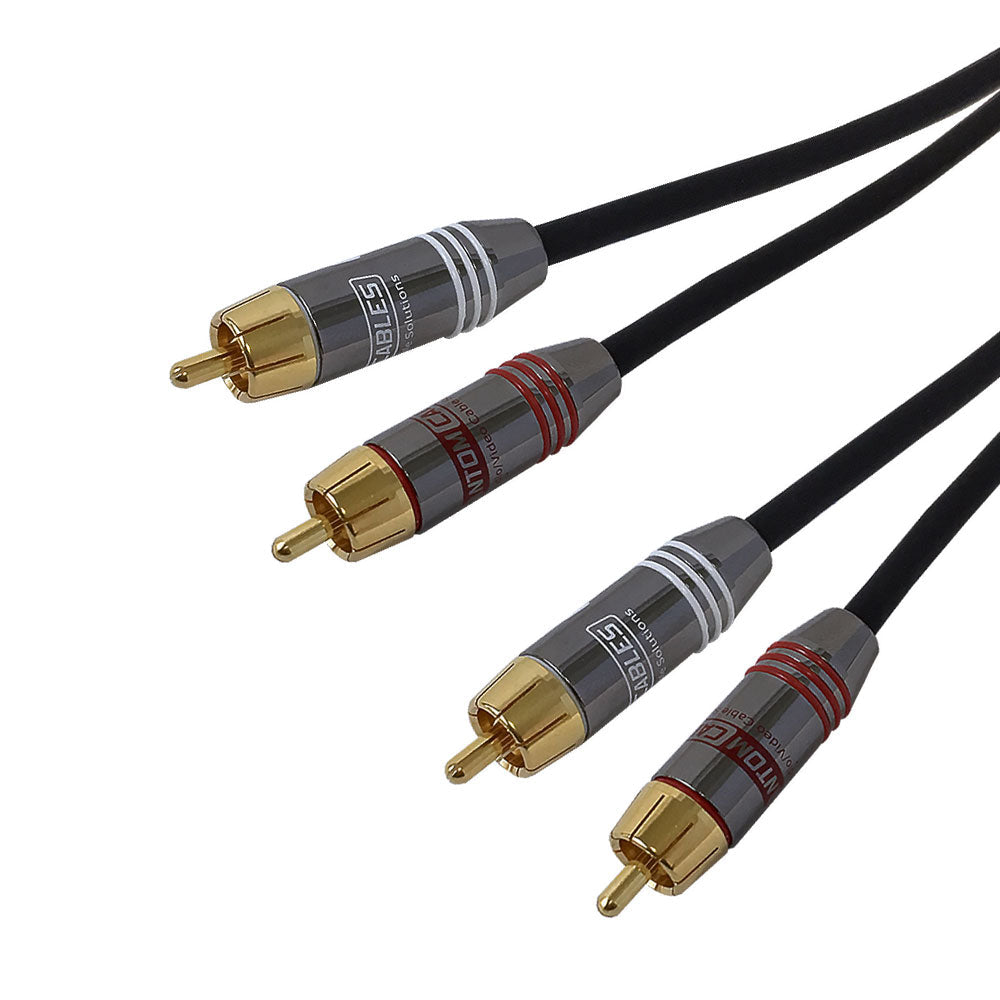

This cable has RCA red and white male connectors on each end. It is typically used to connect left/right analog audio channels from a source to an output speaker.
- 22 gauge, heavy duty cable is used to capture all highs & lows for optimum audio performance
- Constructed of “Siamese” cable for easy installation of left and right audio
- Constructed of low-loss, stranded 22 gauge OFHC (Oxygen Free Copper) with a foam polyethylene insulation around center conductors
- 95% braided copper shield surrounds dielectric for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors allows for extra flexible cables
- High quality, 24K gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead-free solder is used in order to reduce loss and maximize conductivity
|
Physical Characteristics
|
|
|---|---|
| Color | Red/White |
| Connector Plating | Gold |
| Cable Diameter | 5.00mm x 10.0mm |
| Wire Gauge | 22AWG |
| Jacket Material | PVC – Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 95% Bare Copper Braid |
| Strain Relief | Metal Shell |
|
Connectors
|
|
| Connector A | RCA Red/White Male |
| Connector B | RCA Red/White Male |
|
Environmental
|
|
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Materials | Compliant |
|
Package Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
