Description

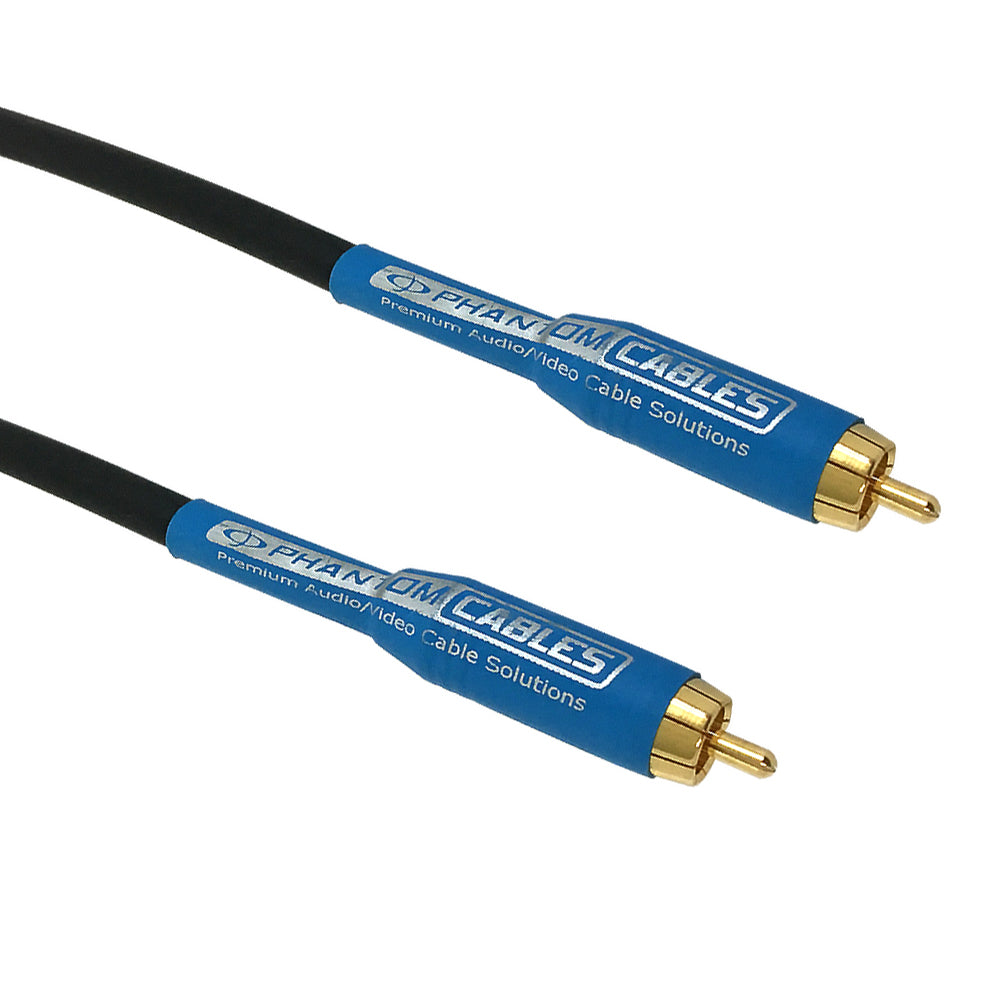

This digital audio coaxial cable has a RCA male on one end and a RCA male on the other. It is typically used to connect audio equipment which requires a S/PDIF digital signal but can also be used as a composite video cable as well.
- Constructed of double shielded, 75 ohm, RG6, 18 awg, digital coax cable for ultra crisp sounding digital audio
- FPE dielectric insulation allows for a stable velocity of propagation therefore minimizing possible timing delays
- Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
- Cables nominal capacitance is an exceptional 17.3 pf/ft and has a nominal attenuation of 3.10 dB/100ft @ 200Mhz
- High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
- The connector backshells are made of a durable, zinc plated metal alloy
- FT4 riser fire rated jacket for in-wall use
- Lead-free solder is used in order to reduce loss and maximize conductivity
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Type | RG6 |
| Cable Diameter | 6.86mm |
| Wire Gauge | 18AWG |
| Jacket Material | PVC – Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | Dual Shielding 100% aluminum/mylar foil, plus a 95% tinned copper braid |
|
Connectors
|
|
| Connector A | RCA Male |
| Connector B | RCA Male |
| Connector A Diameter | 12.7 mm |
| Connector B Diameter | 12.7 mm |
|
Approvals
|
|
| cUL | Compliant – Cable |
|
Environmental
|
|
| RoHS | Compliant |
|
Package Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
