Description

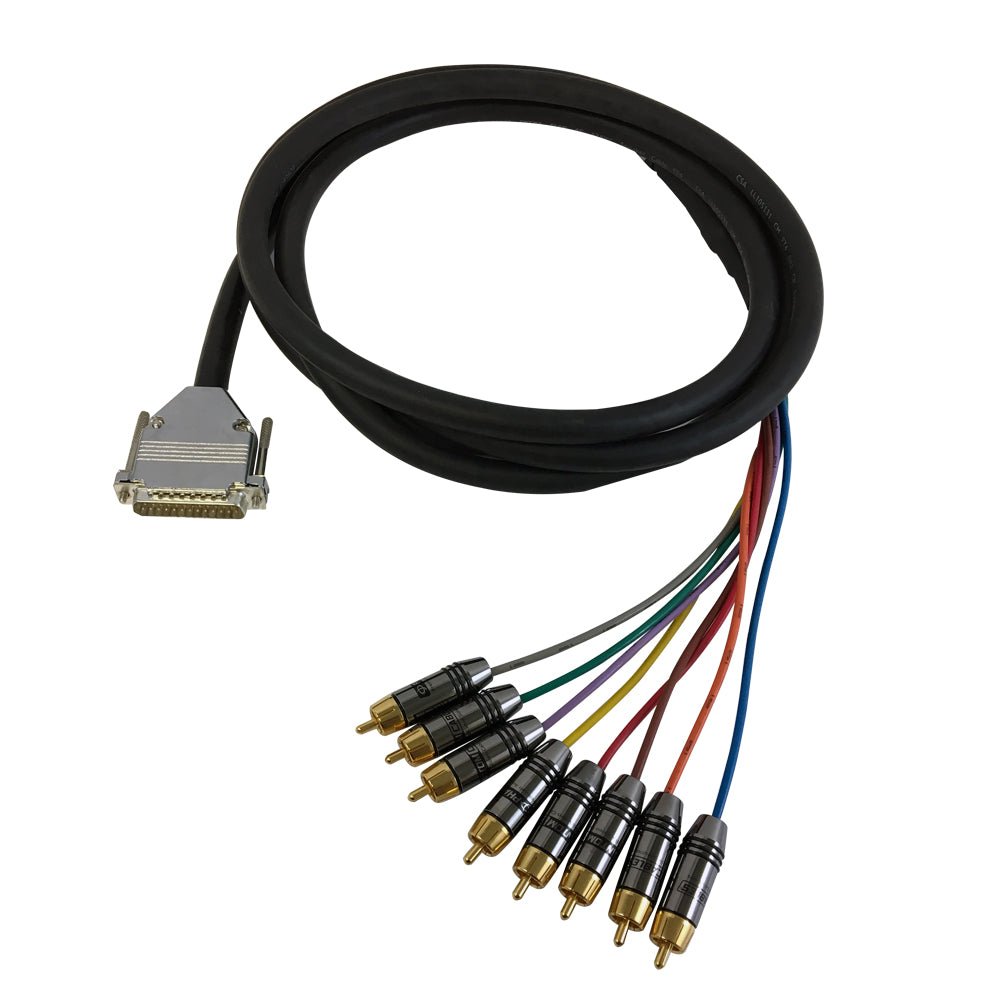

This audio snake cable has a DB25 male on one end and eight RCA males on the other. It has a TASCAM pinout and is typically used to connect a 7.1 surround sound source to a preamp or receiver.
- Premium twisted 24 awg Oxygen Free copper conductor (OFHC) cable is used to capture all highs & lows for optimum audio performance
- Dual 100% aluminum Mylar foil shields maximize EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- High quality, gold plated shielded connectors allow for optimum connectivity and maintain a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead-free solder is used in order to reduce loss and maximize conductivity
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Contact Plating (DB25) | Gold |
| Connector Plating | Gold |
| Cable Shielding | Overall Foil Shielded plus Individually Shielded Pairs with Aluminum-Polyester Foil |
| Wire Gauge | 24AWG |
| Pinout | TASCAM |
|
Connectors
|
|
| Connector A | 1 – DB25 Male |
| Connector B | 8 – RCA Male |
|
Environmental
|
|
| RoHS | Compliant |
|
Package Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
