Description
Overview

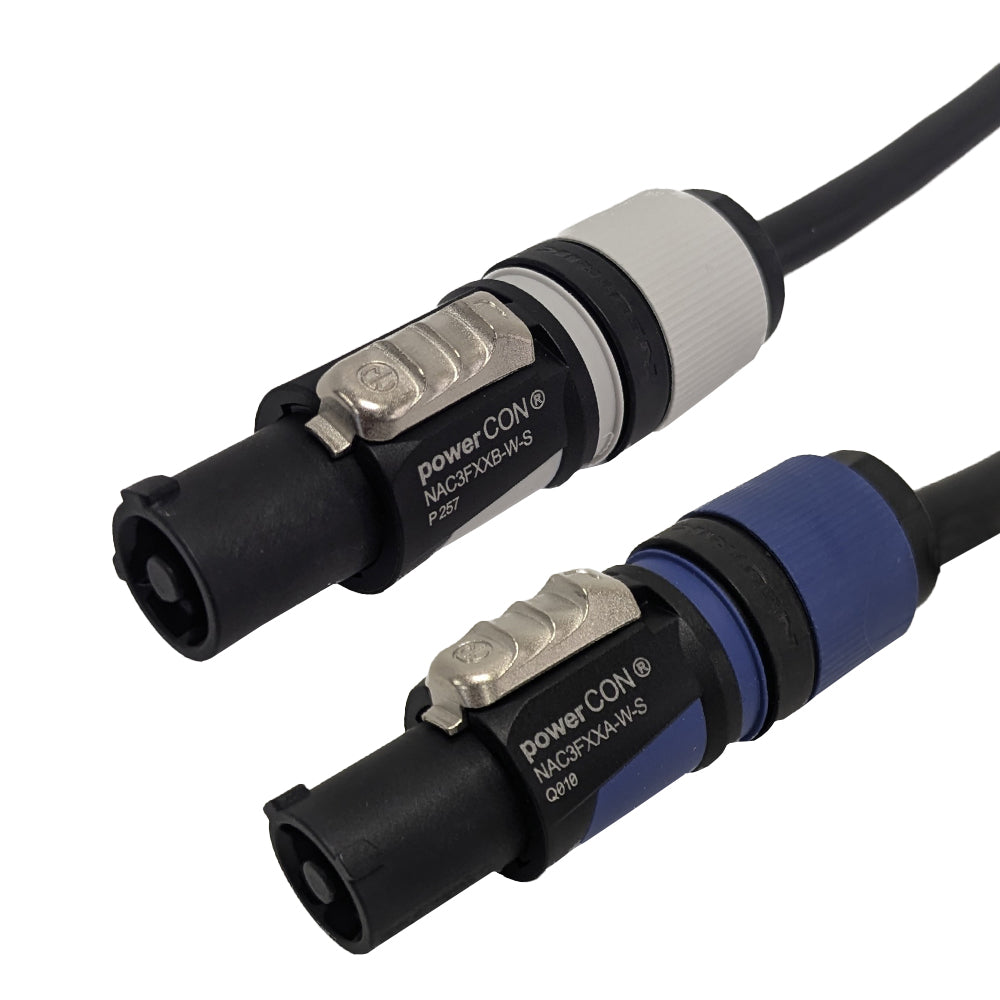

This power cord consists of a powerCON grey AC power-out on one end and a powerCON blue AC power-in on the other end. It is typically used for power connection in Pro AV lighting and display applications.
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 14AWG |
| Jacket | SJOW |
| Jacket Material | 100% Virgin PVC – Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -33 °C to +80 °C |
|
Connector(s)
|
|
| Connector A | powerCON Blue AC Power-out (Grey) |
| Connector B | powerCON Blue AC Power-in (Blue) |
|
Performance
|
|
| Power Rating | 15 Amp / 125 Volt (14AWG) |
|
Approvals
|
|
| powerCON AC Power-in | c(UL)us |
| Cable | c(UL)us |
| powerCON AC Power-in | VDE |
|
Environmental
|
|
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
