Description
This bulk OM4 fiber cable is indoor/outdoor plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun.
Features

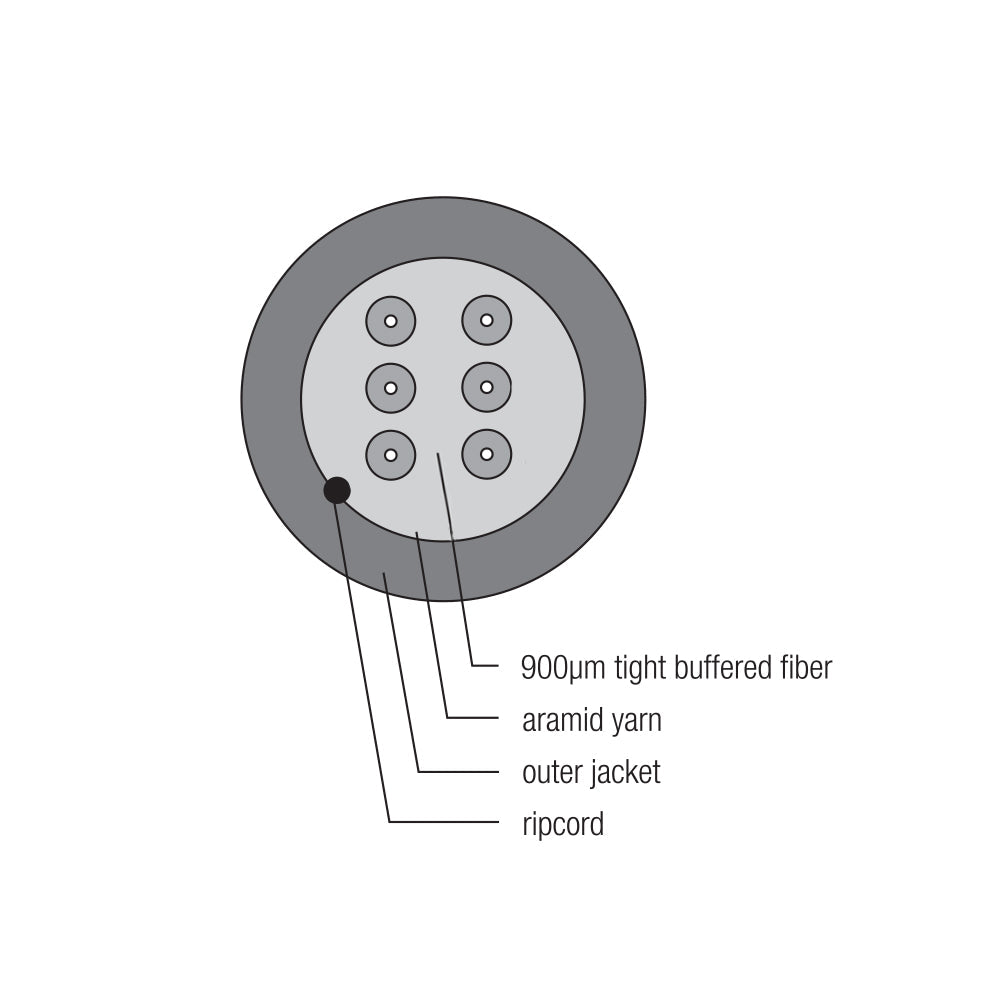

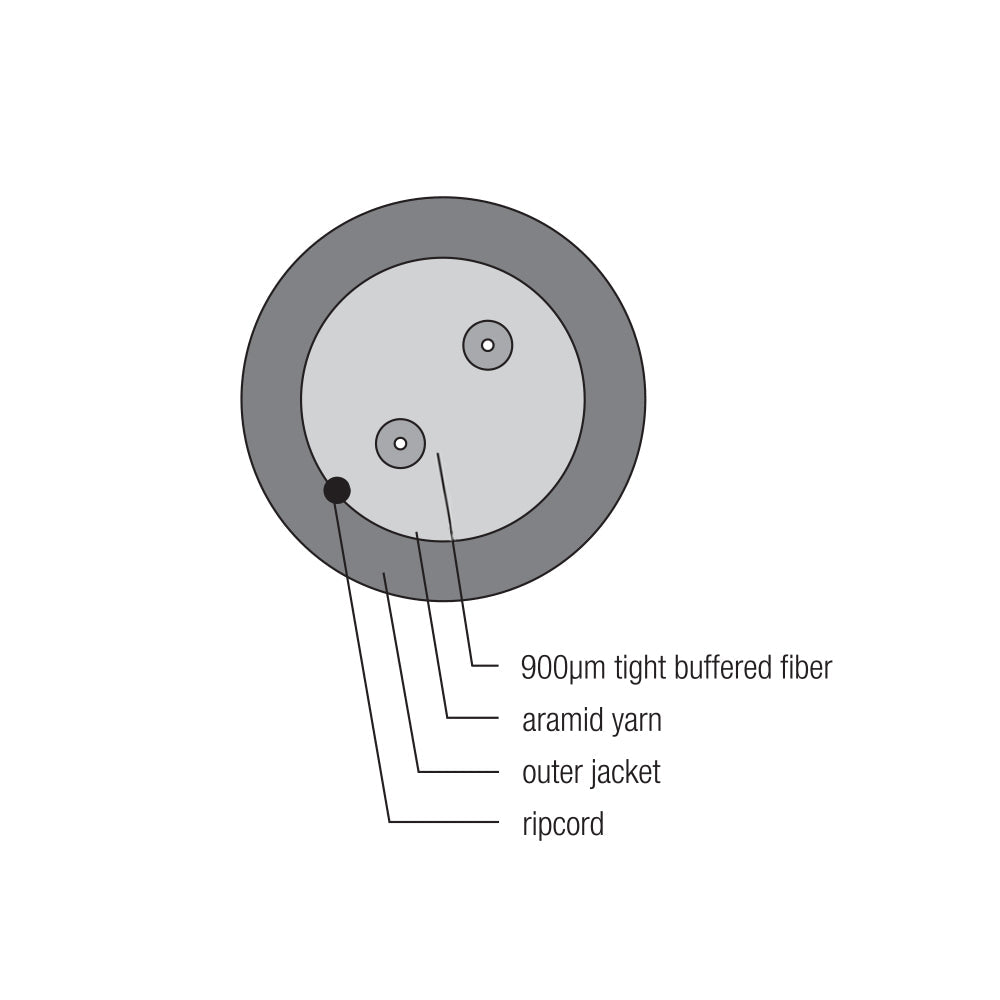

- 900µm Tight Buffers
- Water blocking aramid yarn strength members
- UV resistant jacket, OFNP rated construction
- Corning ClearCurve OM4 optical fibers
- Jacket print ensures product identification and fiber compatibility
- Durable jacket offers added protection during installation and in rugged use applications
Specifications
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Fiber Optic Type | OM4 50 micron Multimode OFNP Plenum Indoor/Outdoor Tight Buffered Cable |
| Fiber Count |
2-Strand/ 6-Strand/ 12-Strand |
| Glass Fiber | Corning ClearCurve |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter |
2-Strand : 4.4mm 6-Strand : 4.8mm 12-Strand : 5.8mm |
| Bending Radius (Installation) |
2-Strand : 6.6cm 6-Strand : 7.2cm 12-Strand : 8.7cm |
| Bending Radius (Operation) |
2-Strand : 4.4cm 6-Strand : 4.8cm 12-Strand : 5.8cm |
| Pulling tension |
300lbs |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
|
Performance
|
|
| Wavelength | 850nm / 1300nm |
| Attenuation Max. | 3.0dB/km @850nm 1.0dB/km @1300nm |
| Link Length |
550m (10Gbps @850nm) |
| Bandwidth (EMB High Performance) | 4700MHz.km @850nm |
| Fire Rating | OFNP Plenum |
|
Certification(s)
|
|
| UL | Compliant |
|
Product Support
|
|
| RoHS | Compliant |
| Country of Origin | USA |
