Description
This bulk OM4 fiber cable is indoor/outdoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications.
Features
- Cables are water blocked and exceed water penetration requirements of GR-20-CORE.
- Outer jacket is moisture-resistant, fungus-resistant and UV resistant for outdoor use.
- With a riser rating, this cable can be used in all environments: riser, general inside plant and outside plant.
- Tested to meet or exceed EIA/TIA 568-A / GR-409-CORE and ICEA-S-104-696.
- Approved for mining applications.
- RoHS/REACH Compliant.
|
Physical Characteristics
|
|
|---|---|
| Color | Black |

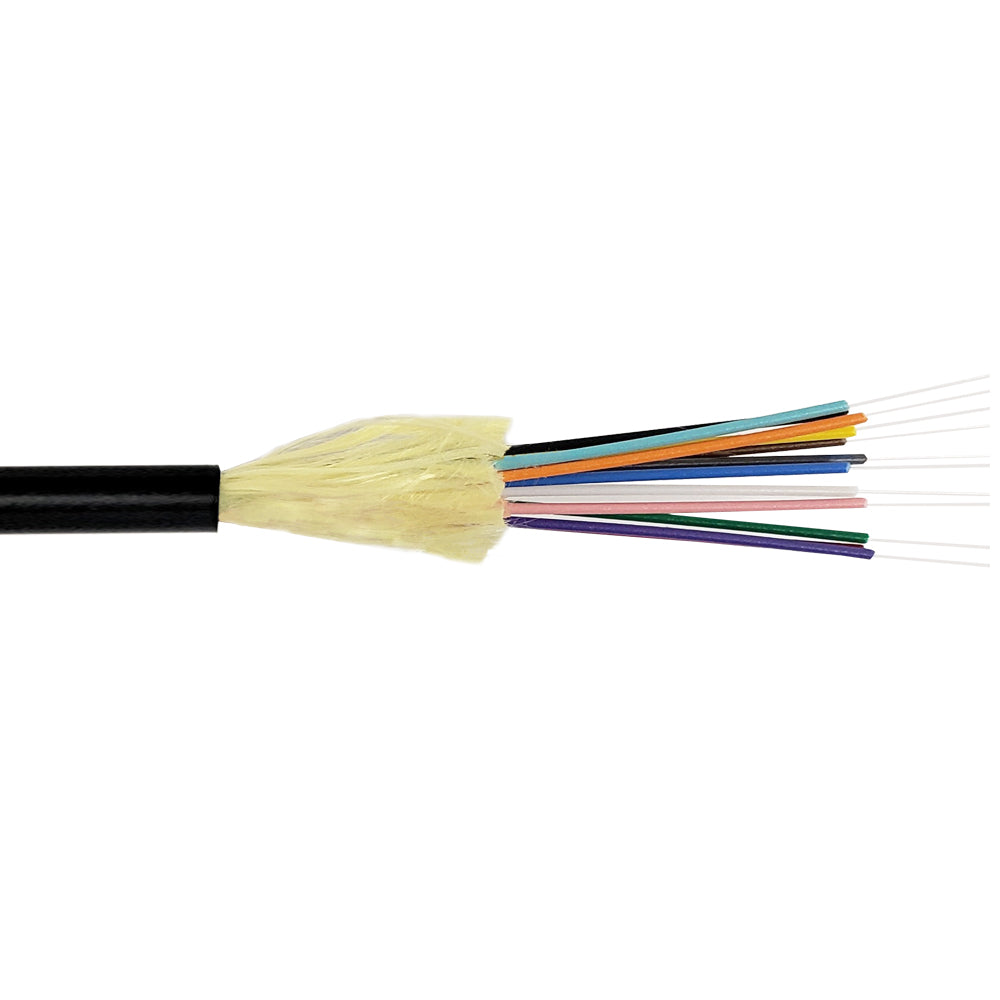

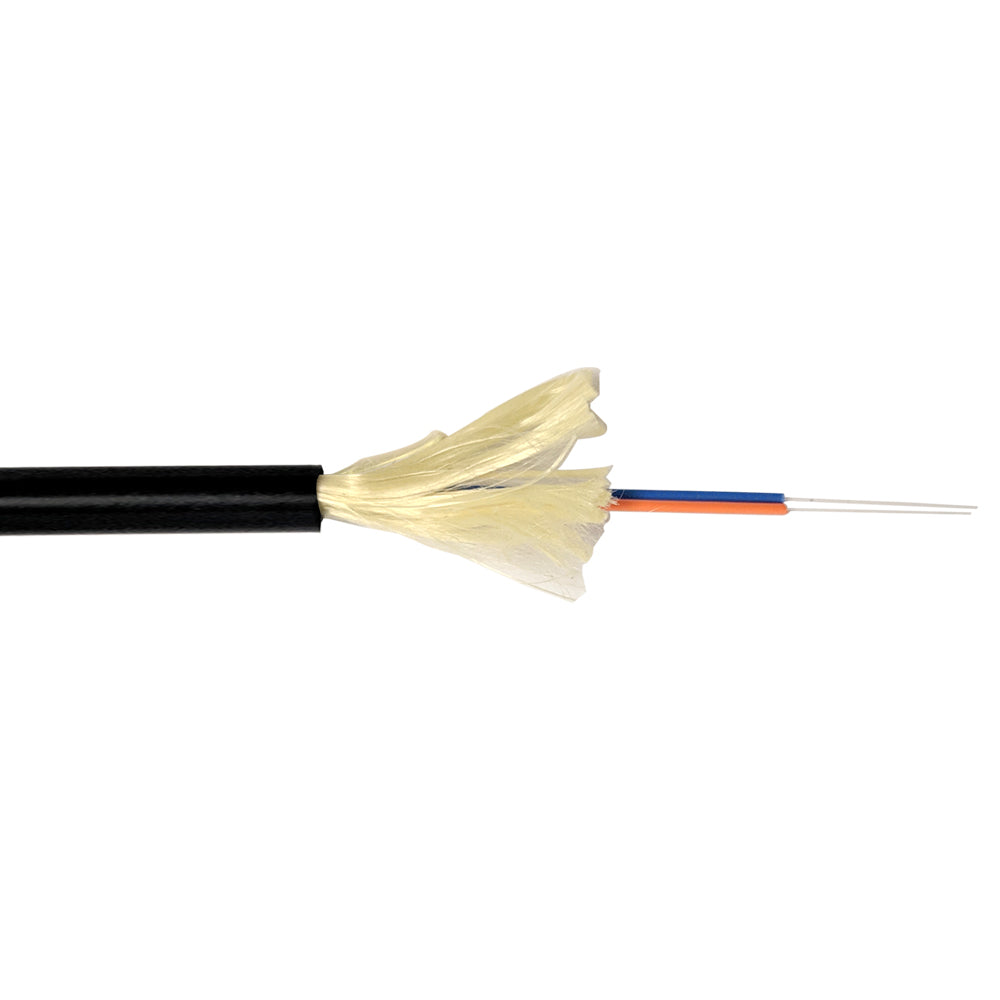

| Fiber Optic Type | OM4 50 micron Multimode Riser Indoor/Outdoor Tight Buffered Cable |
| Fiber Count | 2-Strand / 12-Strand |
| Glass Fiber | Corning ClearCurve |

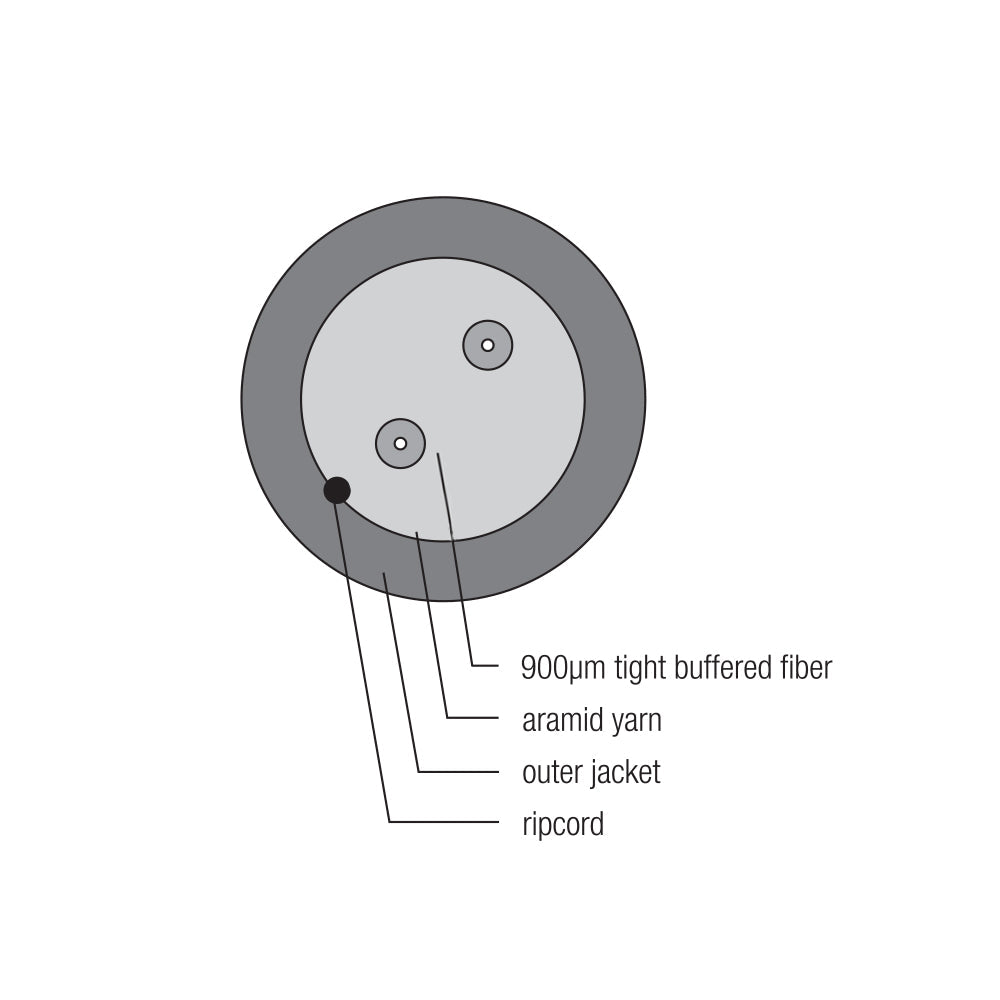

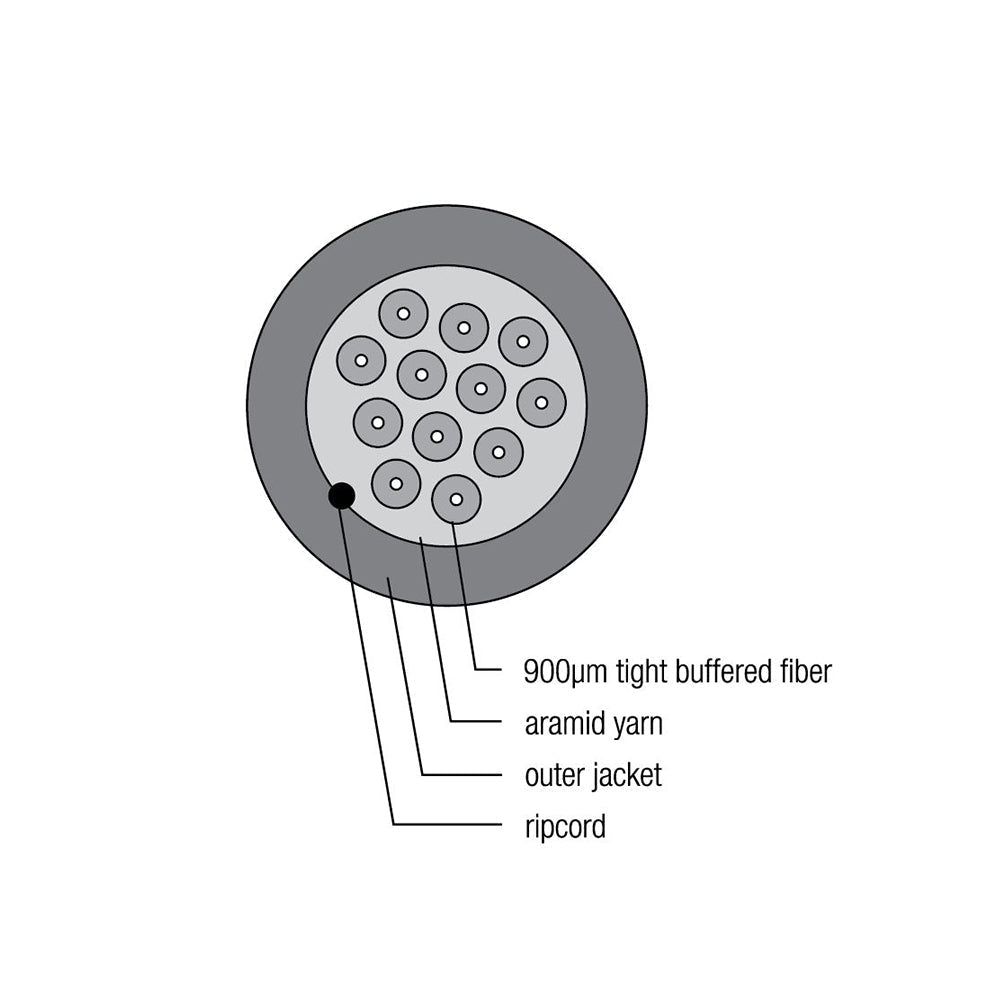

| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 4.8mm (2-Strand) 6.5mm (12-Strand) |
| Tension(Installation) | 150 lbs (2-Strand / 12-Strand) |
| Tension(Long Term) | 45 lbs (2-Strand / 12-Strand) |
| Bending Radius(Installation) | 7.2cm (2-Strand) 9.0cm (12-Strand) |
| Bending Radius(Long Term) | 4.8cm (2-Strand) 6.5cm (12-Strand) |
| Operating Temperature | -40°C ~ +75°C |
| Storage Temperature | -40°C ~ +75°C |
| Installation | -20°C ~ +75°C |
| Attenuation Range | @850nm 3.0dB/km @1300nm 1.2dB/km |
| Bandwidth Range | @850nm > 3500 MHz/km @1300nm > 550 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 1040 1300nm = 550 |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 550 |
| Fire Rating | OFNR |
| UV Stabilizer | Compliant |
| Anti-Fungus Protection | Compliant |
|
Certification(s)
|
|
| ETL | Compliant |
| c(ETL) | Compliant |
|
Product Support
|
|
| RoHS | Compliant |
| Country of Origin | USA |
