Description

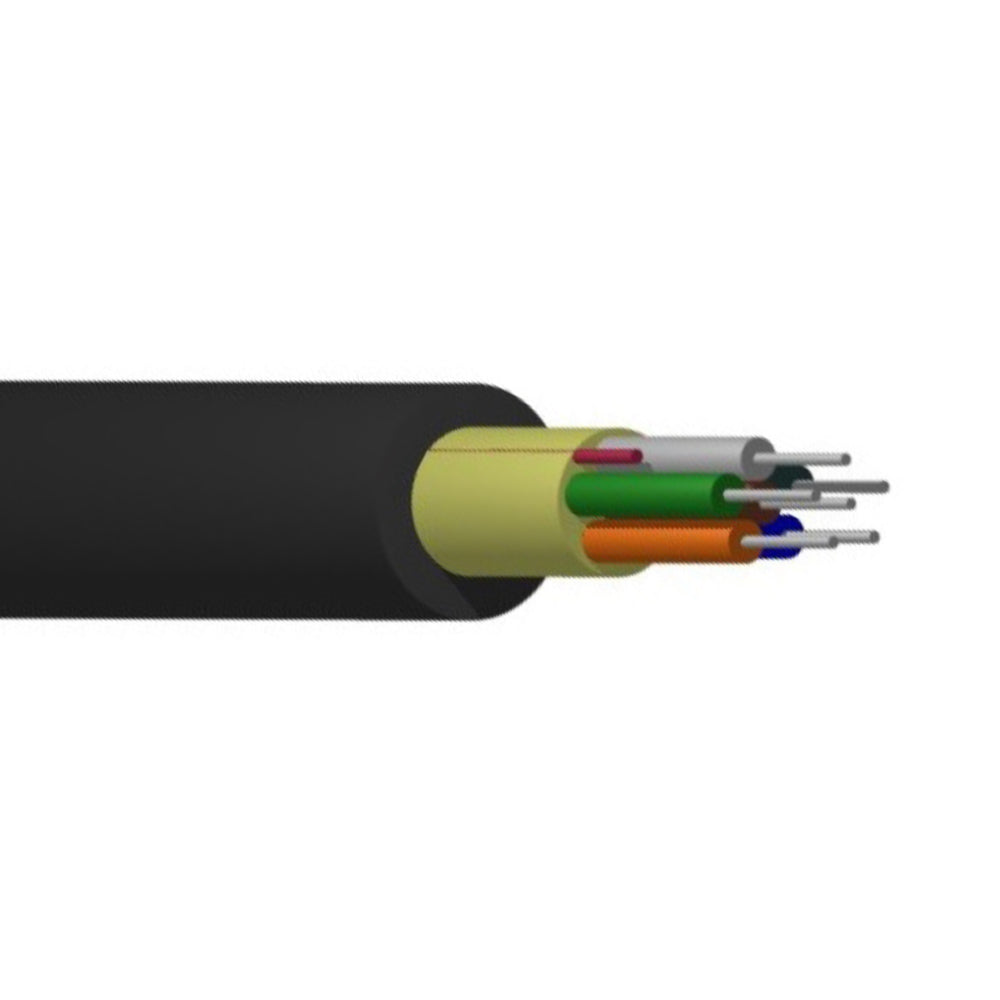

This bulk OM3 fiber cable is indoor/outdoor plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside/outside plant environments.
Features

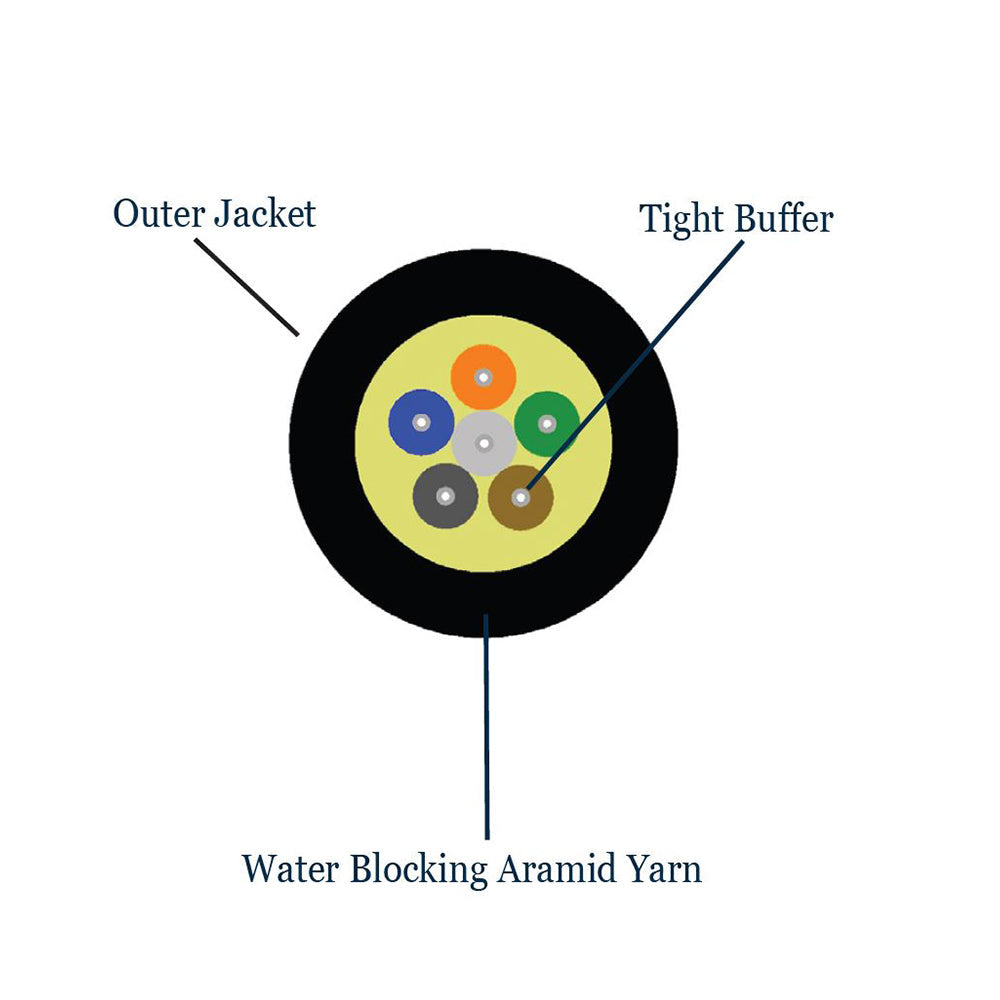

- 900μm Tight Buffers
- Aramid yarn strength members
- Exclusive use of Corning® optical fibers
- Jacket print ensures product identification and fiber compatibility
- Durable jacket offers added protection during installation and in rugged use applications
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Fiber Optic Type | OM3 50 micron Multimode Plenum Indoor/Outdoor Tight Buffered Cable |
| Fiber Count | 2-Strand / 6-Strand / 12-Strand |
| Glass Fiber | Corning ClearCurve |
| Sub Unit Diameter | 900 Micron |
| Strength Member | Aramid Yarn |
| Inner and Overall Jacket Material | PVC |
| Nominal Diameter |
2-Strand : 4.4mm 6-Strand : 4.8mm 12-Strand : 5.8mm |
| Min. Bending Radius (Installation) |
2-Strand : 6.6cm 6-Strand : 7.2cm 12-Strand : 8.7cm |
| Min. Bending Radius (Operation) |
2-Strand : 4.4cm 6-Strand : 4.8cm 12-Strand : 5.8cm |
| Operating Temperature |
Indoor : -40°C ~ +70°C |
| Storage Temperature | Indoor: -40°C ~ +70°C |
|
Performance
|
|
| Wavelength | 850 / 1300nm |
| Max Attenuation | @850nm 3.0dB/km @1300nm 1.0dB/km |
| Link Length | 300m (10Gb/s@850nm) |
| Bandwidth (EMB High Performance) |
@850 – 2000MHz.km |
| Fire Rating | OFNP |
|
Certification(s)
|
|
| UL, TIA Standard | Compliant |
|
Product Support
|
|
| RoHS | Compliant |
| Country of Origin | USA |
