Description

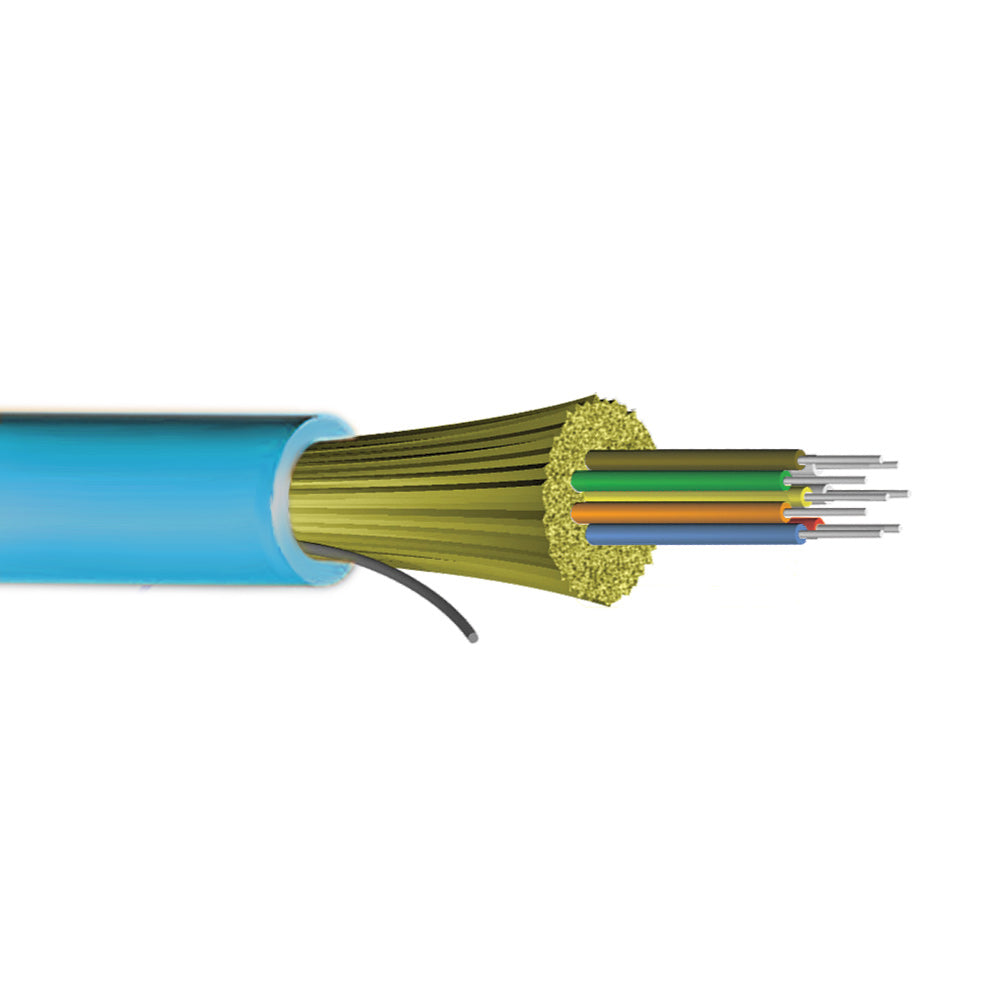

This bulk 24-strand OM3 fiber cable is indoor/outdoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications.
This cable can be used in all environments: riser, general inside plant and outside plant.
- Tested to meet or exceed EIA/TIA 568-A / GR-409-CORE and ICEA-S-104-696.
- Approved for mining applications.
- RoHS/REACH Compliant.
| Physical Characteristics | |
|---|---|
| Color | Aqua |
| Fiber Optic Type | OM3 50 micron Multimode Riser Indoor/Outdoor Tight Buffered Cable |
| Fiber Count | 24-Strand |
| Glass Fiber | Corning ClearCurve |

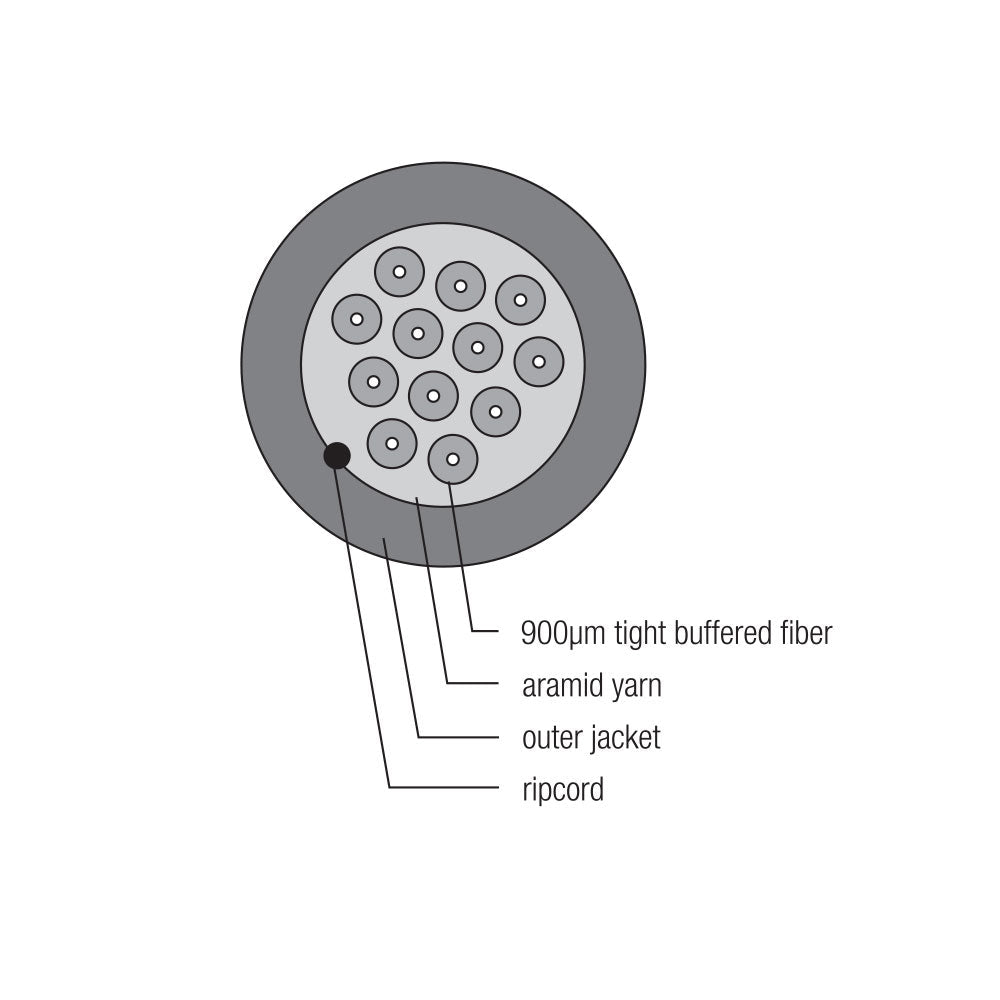

| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 8.7mm |
| Tension(Installation) | 300 lbs |
| Tension(Long Term) | 90 lbs |
| Bending Radius(Installation) | 13.1cm |
| Bending Radius(Long Term) | 8.7cm |
| Operating Temperature | -40℃ ~ +75℃ |
| Storage Temperature | -40℃ ~ +75℃ |
| Installation | -20℃ ~ +75℃ |
| Attenuation Range | @850nm 3.0dB/km @1300nm 1.2dB/km |
| Bandwidth Range | @850nm > 1500 MHz/km @1300nm > 500 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 1000 1300nm = 500 |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 300 |
| Fire Rating | OFNR |
| UV Stabilizer | Compliant |
| Anti-Fungus Protection | Compliant |
| Certification(s) | |
| ETL | Compliant |
| c(ETL) | Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | USA |
