Description
This cable is primarily used in the assembly of duplex fiber patch cords used in server rooms, data centers and other point to point indoor applications.
| Physical Characteristics | |
|---|---|
| Color | Aqua |

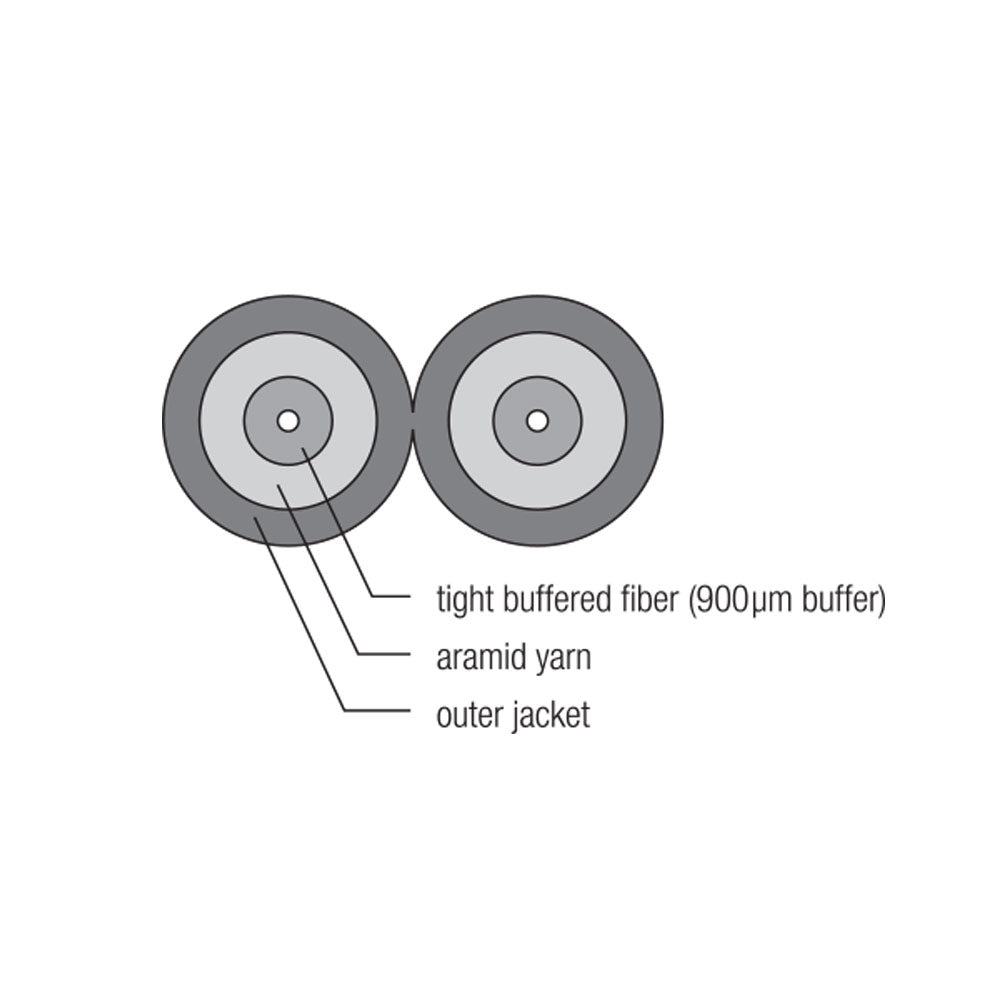

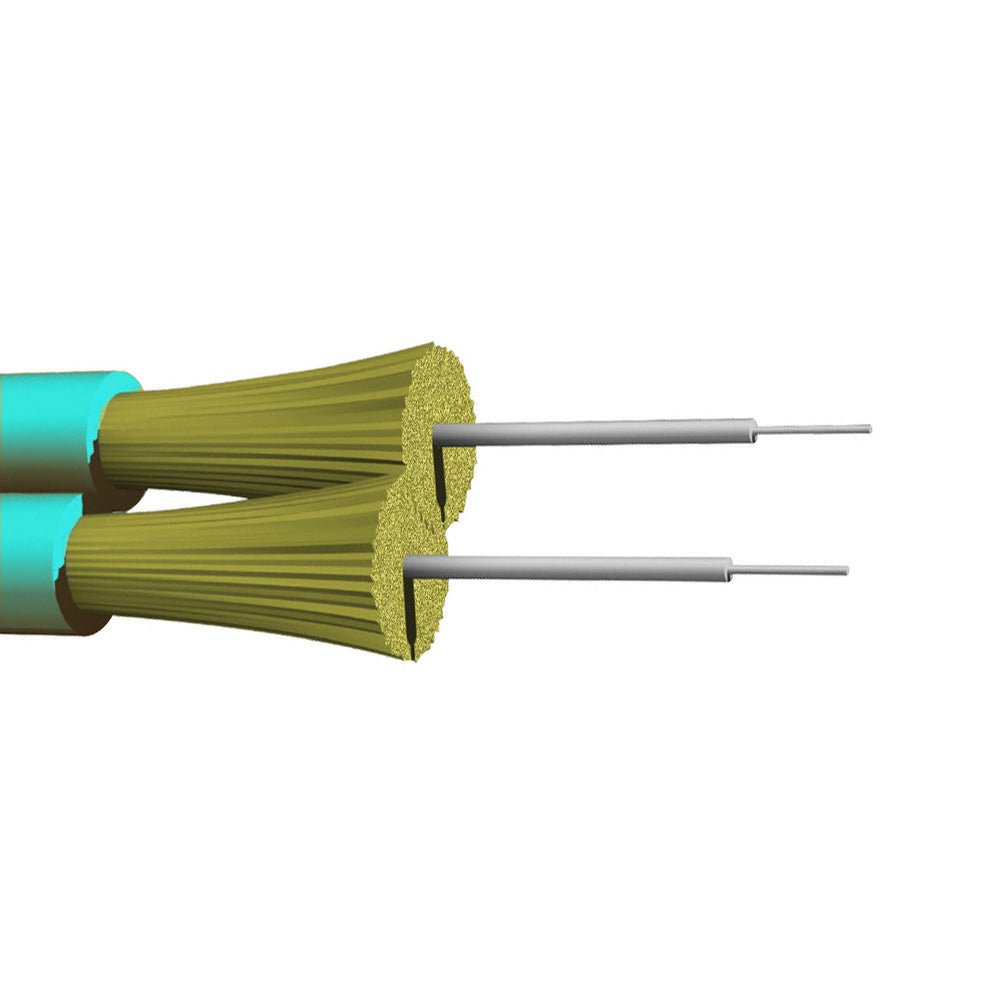

| Fiber Optic Type | OM3 Plenum Zipcord 2.0 Multimode Duplex 50/125 micron |
| Fiber Core Diameter | 50 micron ± 2.0 micron |
| Nominal Diameter | 2.0mm x 4.0mm |
| Tension(Installation) | 22 lbs |
| Tension(Long Term) | 7 lbs |
| Bending Radius(Installation) | 2.0cm |
| Bending Radius(Long Term) | 1.2cm |
| Operating Temperature | 0℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +75℃ |
| Attenuation Range | @850nm 3.0dB/km @1300nm 1.2dB/km |
| Bandwidth Range | @850nm > 1500 MHz/km @1300nm > 500 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 1000 1300nm = 550 |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 300 |
| Fire Rating | OFNP |
| Certification(s) | |
| ETL | Compliant |
| c(ETL) | Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | USA |
