Description

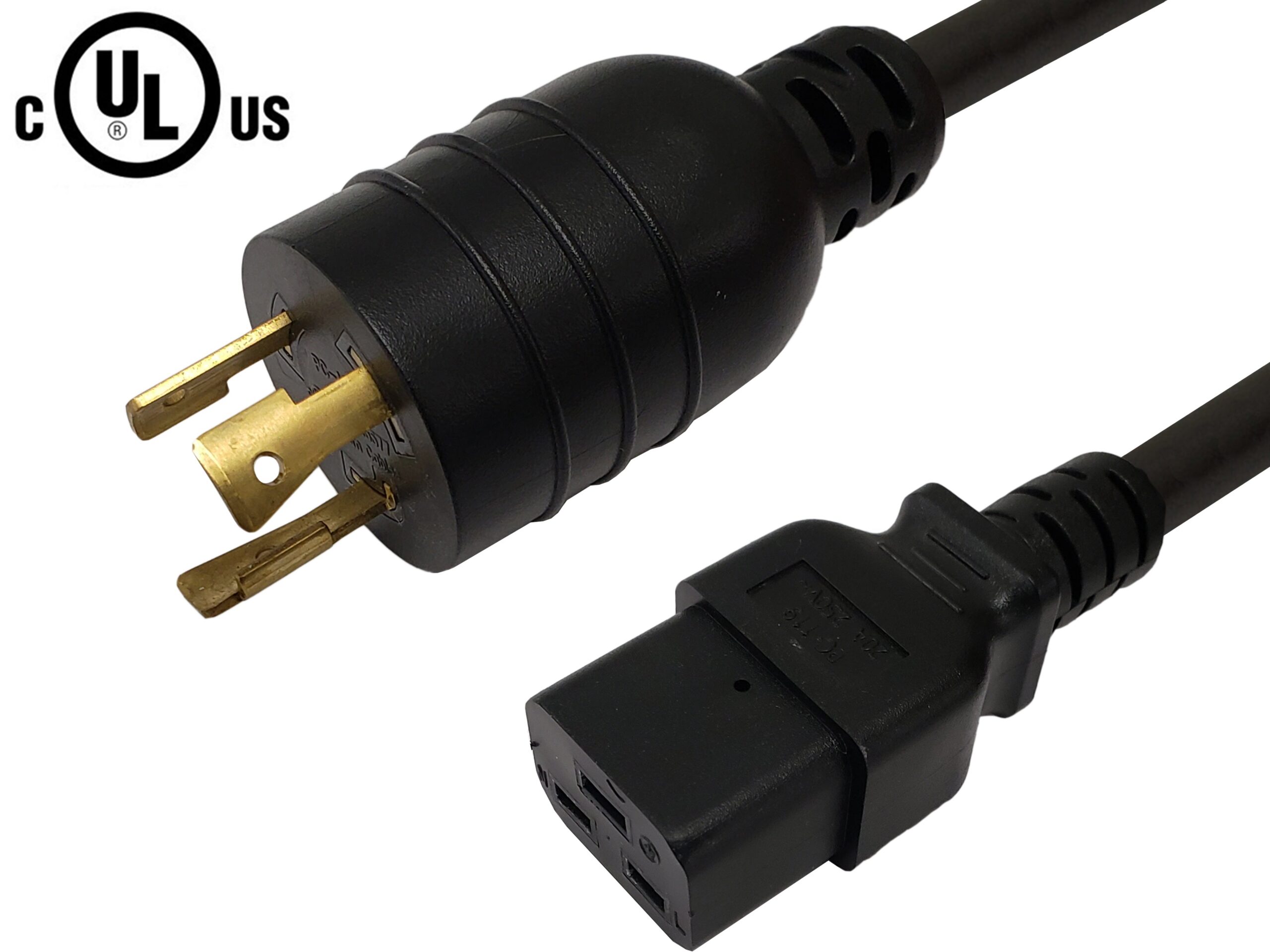

This power cord consists of a L6-20P male on one end and a C19 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. Premium quality connectors are used to ensure a secure fit. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 12 AWG |
| Jacket | Heavy duty SJT |
| Jacket Material | 100% Virgin PVC – Polyvinyl Chloride |
| Jacket Fire Rating | FT2 VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Conductor Material | 100% bare copper |
| Temperature Rating | -20 deg C to 105 deg C |
|
Connector(s)
|
|
| Connector A | NEMA L6-20P |
| Connector B | IEC 60320 C19 |
|
Performance
|
|
| Power Rating | 20 Amp / 250 Volt |
|
Approvals
|
|
| L6-20P | c(UL)us |
| C19 | c(UL)us |
| Cable | c(UL)us, CSA |
| ISO | ISO 9001:2015, ISO 14000 |
|
Environmental
|
|
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
