Name: Menu Wall TV Mounting Bracket - Expandable - Fits TV Sizes 45-55 inches - +10/-20 Degree Tilt - Maximum VESA 600x400
SKU: MT-1552
Price: 105.86 CAD
Availability: InStock

Description

Overview

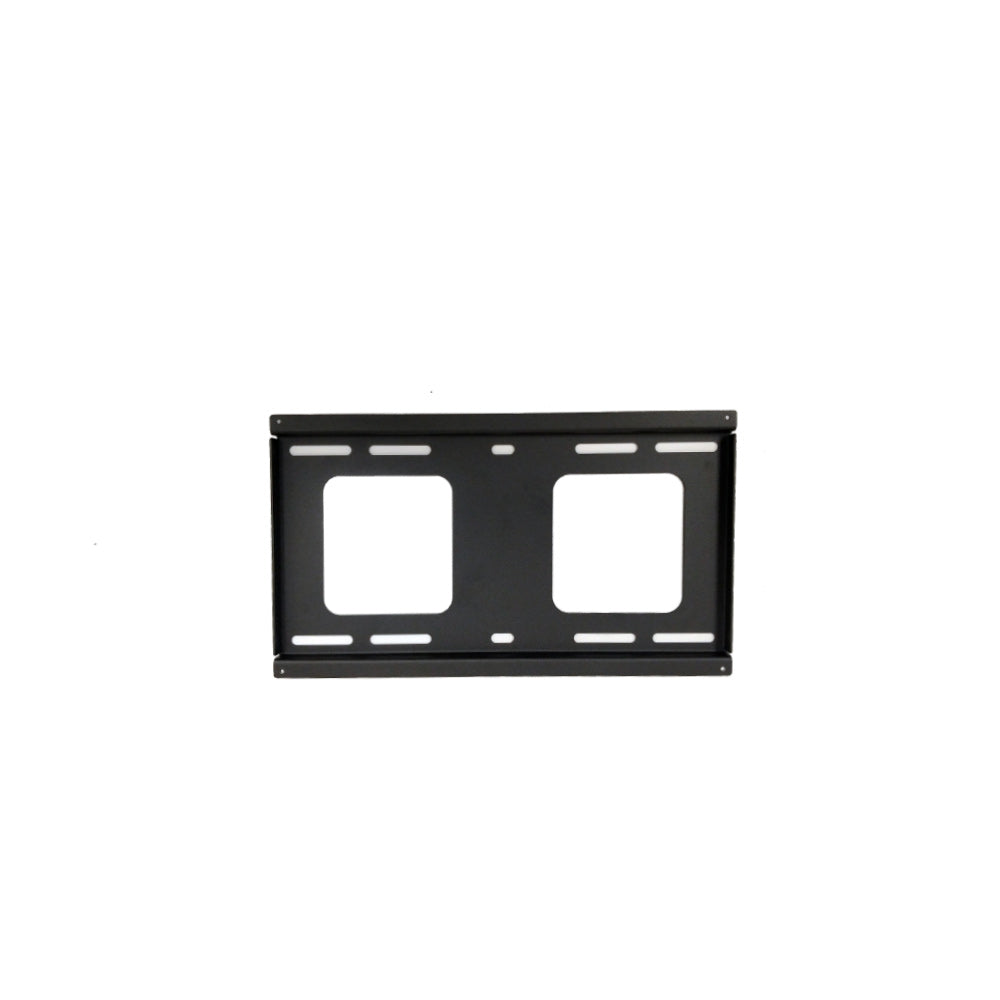

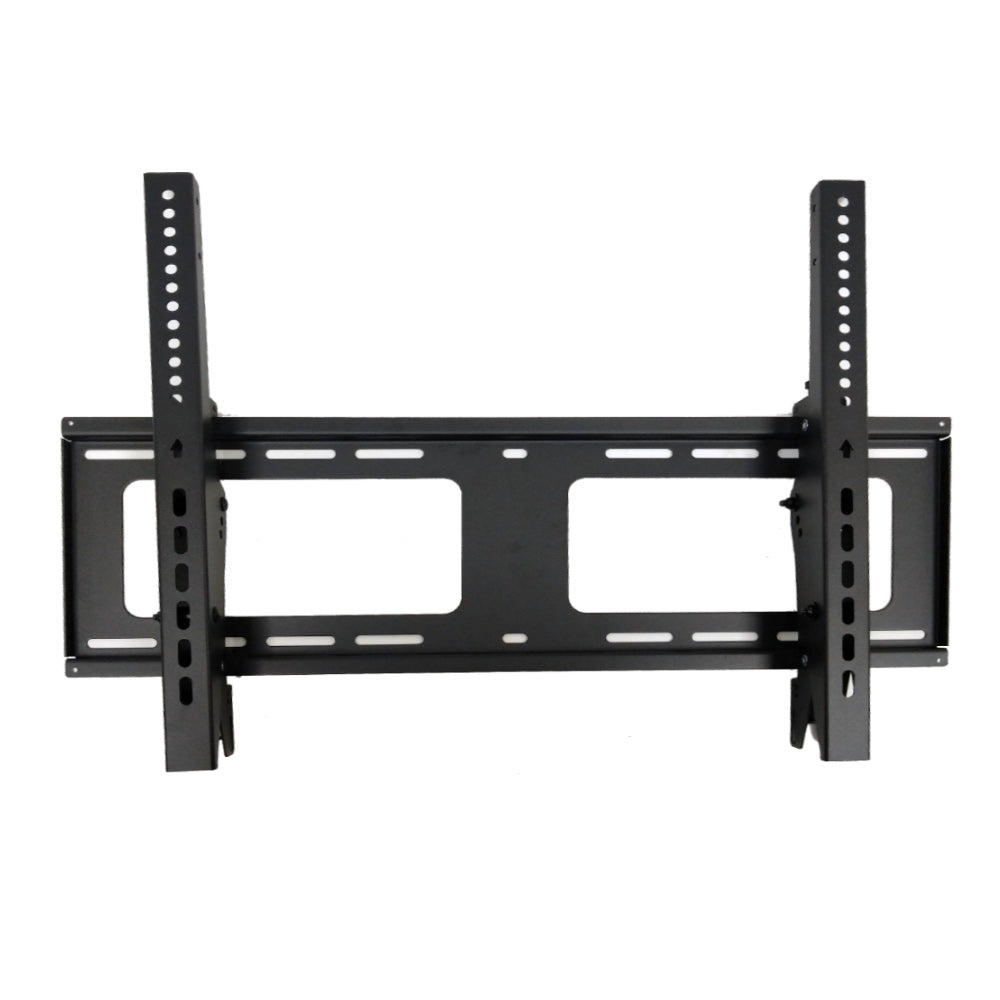

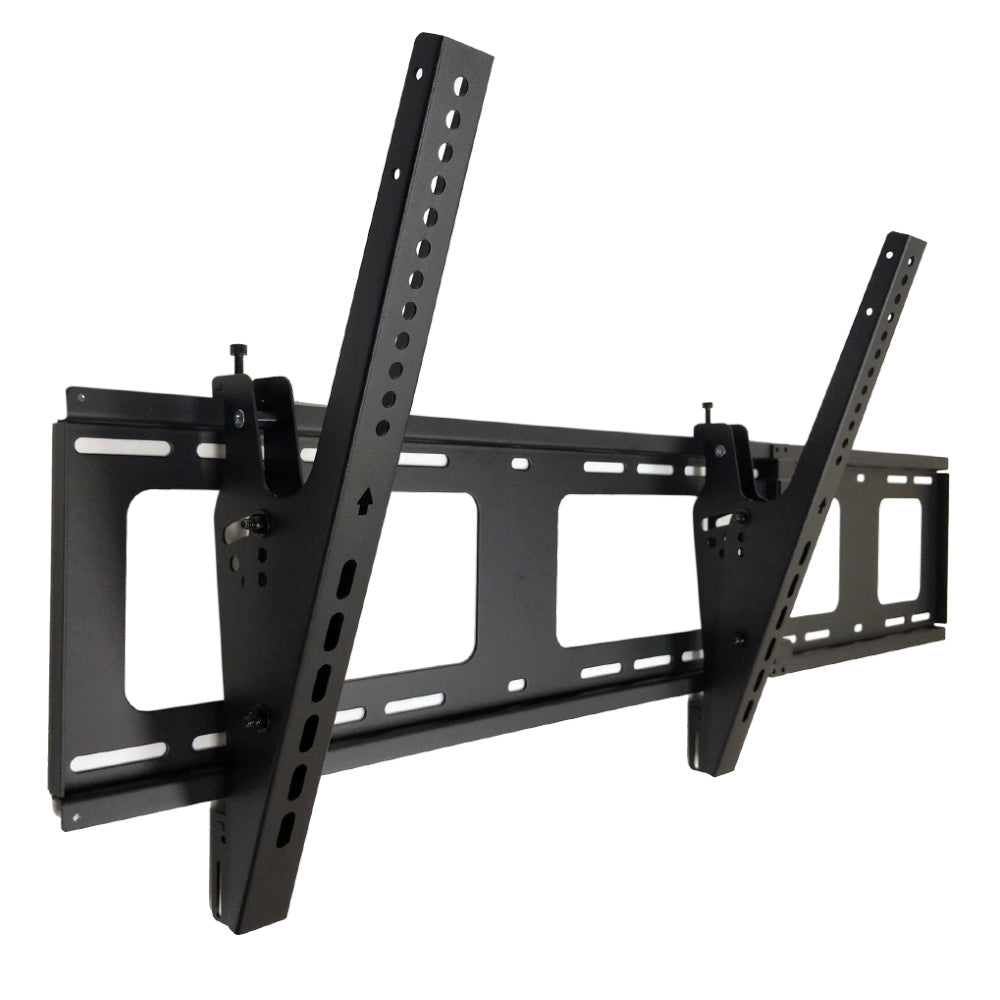

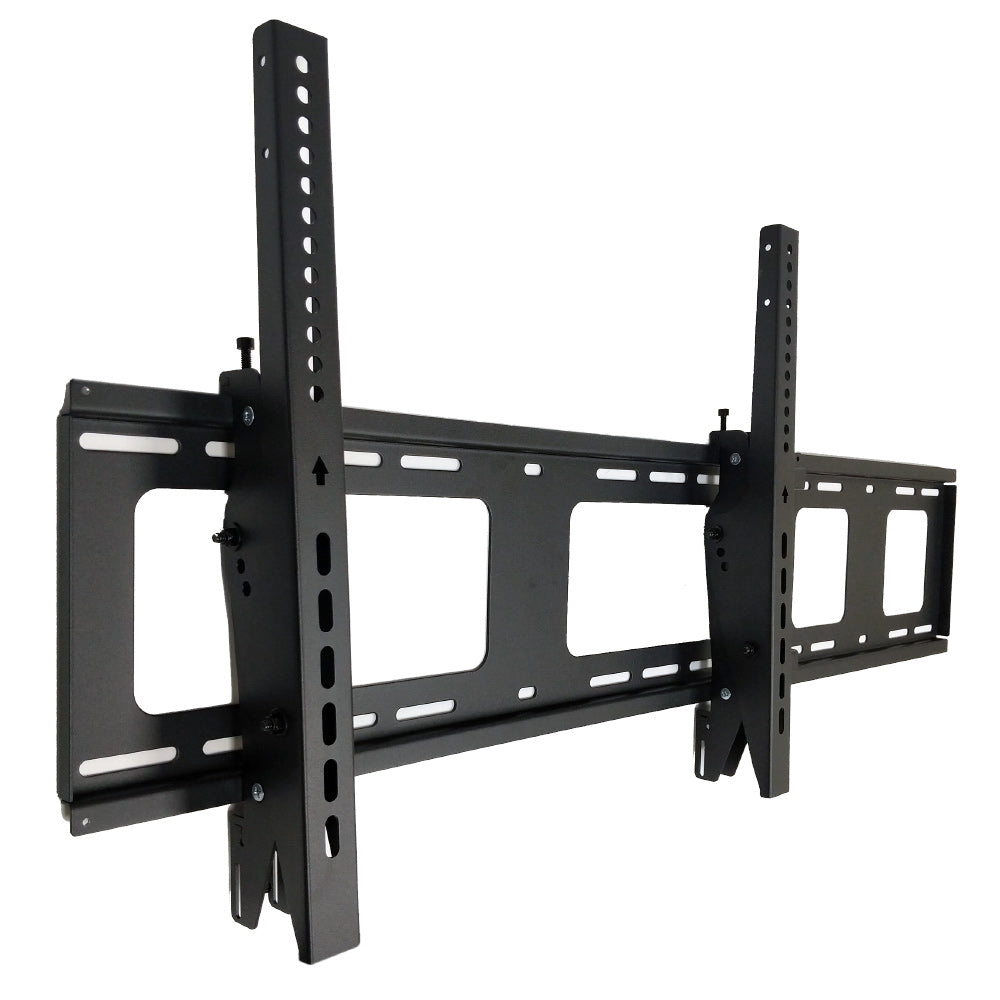

This menu wall TV mounting bracket is designed to hold most 45 inch to 55 inch flat screen displays with a maximum VESA hole pattern of 600×400. It is used to mount a single TV but its modular design allows you to add-on as many TVs as required. Quick and easy installation and designed for use in commercial environments.

Easy Assembly

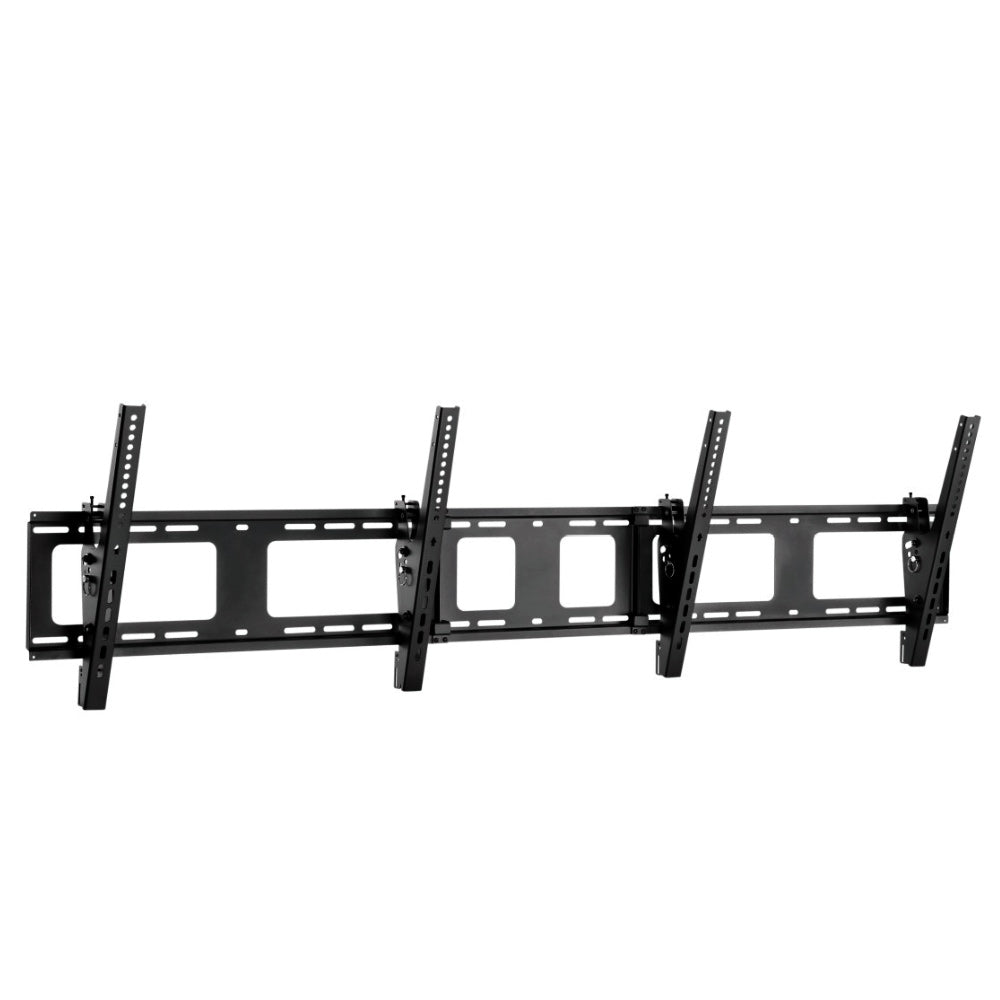

This menu wall mount is expandable to as many TVs as required, one mount simply attaches to the next. No pre-assembly required, the mounts can be joined one at a time directly to the wall.

Effortless Positioning

This menu wall mount has five fixed tilt settings which allows all displays to be tilted at the same angle with ease.

Specifications

Physical Characteristics
Mounting Style	Tilting Wall Mount
Color	Powder Coated Black
Material	Steel
Mounting Pattern	VESA 200×200, 300×200, 300×300, 400×200, 400×300, 400×400, 600×400
Screen Size	45 – 55 inches [114 – 178cm]
Screen Capacity	1 TV (expandable)
Weight Capacity	110lbs [50kg]
Profile	76mm (3″)
Fine Adjustment(Depth/Height)	10mm (0.39″)
Product Size	1800x480x76mm (70.9″x18.9″x3″)
Installation	Solid Wall or Double Stud
Tilt Range	0°/-5°/-10°/-15°/-20°
Screen Level	+3°~-3°
Cable Management	No
Direction Indicator	Compliant
Approvals
RoHS	Compliant
Reach	Compliant
Packaging Information
Package Quantity	1 – TV Mount 1 – Joint Bracket 2 – Clamps 2 – Safety Pin 4 – M4x6 Screws 4 – M5x14 Screws 4 – M6x30 Screws 4 – M8x30 Screws 4 – M8x50 Screws 4 – Rectangular Washers 8 – Small Spacer 8 – Big Spacer 6 – ST6.3×55 Screws 6 – Concrete Anchors 6 – D6 Washers
Product Weight	13.8 lbs [6.3 kg]
