Description
Overview

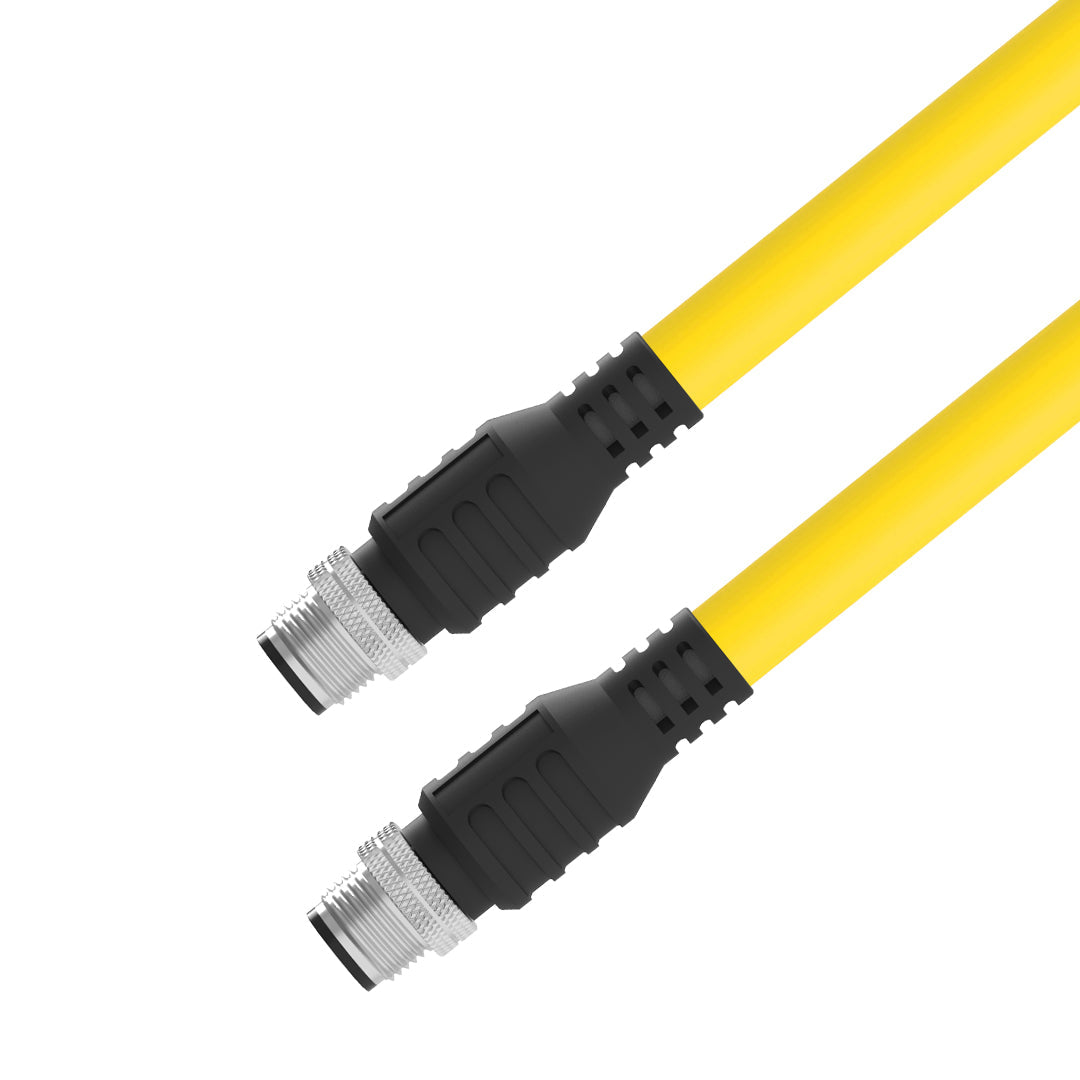

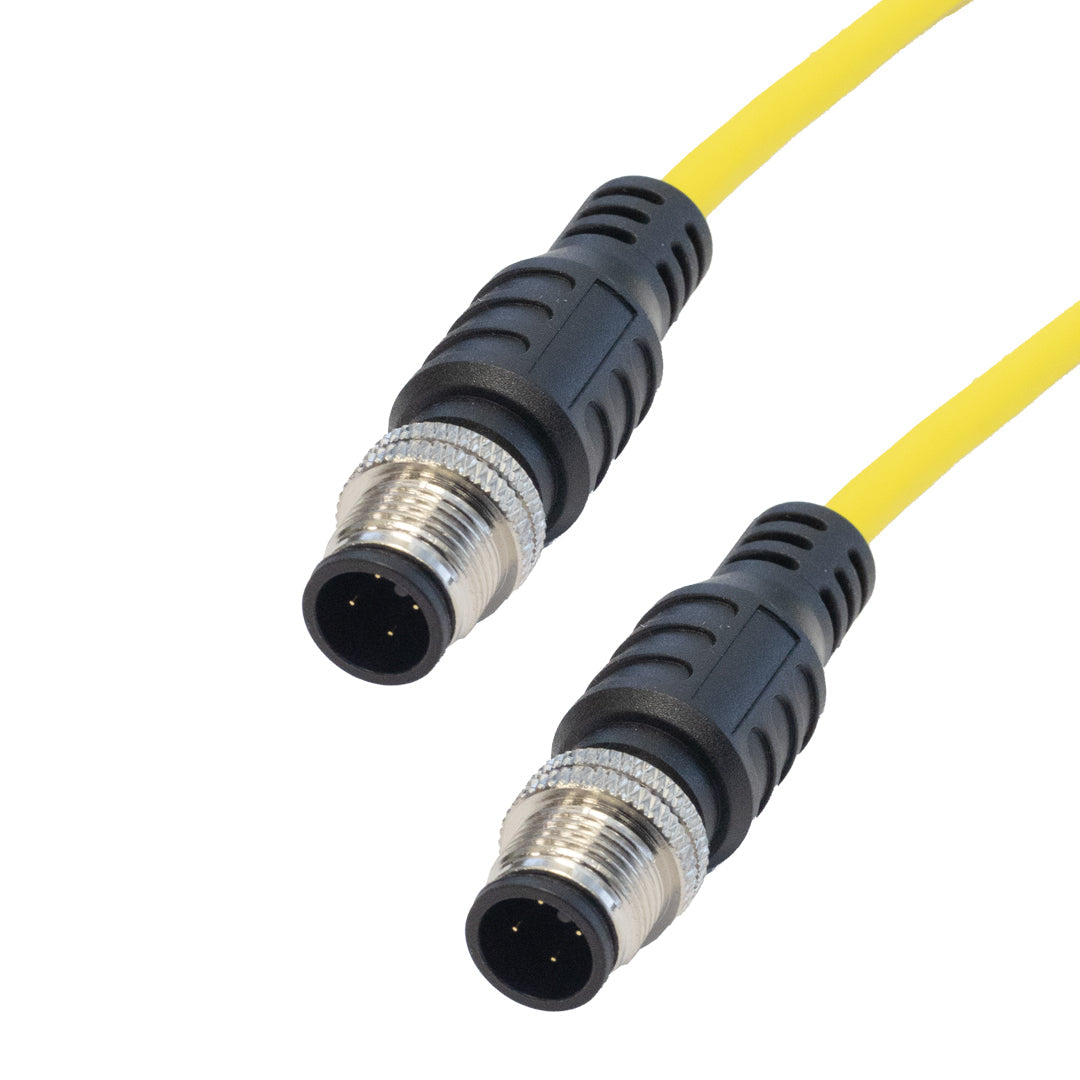

This M12 4-pin A-Code cable is designed for industrial automation. It is suitable for use in drag chain applications or systems with constant movement. It is typically used to interconnect process controls with sensors, actuators, other input output modules.
Application:
| Physical Characteristics | ||
|---|---|---|
| Color | Yellow | |
| Cable Diameter | 4.8±0.2mm | |
| Wire Gauge | 22AWG | |
| Shielding | 75% Tinned Copper Braided Shield | |
| Conductor Structure | 42 x 0.10mm | |
| Sheath Material | PUR | |
| Wire Cross Section | 18.09mm2 | |
| Temperature Range (Mobile) | -25℃ to 70℃ | |
| Temperature (Fixed) | -25℃ to 80℃ | |
| Temperature Range (Cable: Fixed) | -40℃ to 80℃ | |
| Dragchain Capable | 5 million times | |
| Cable: Torsion Capable | 2 million times | |
| Bending Radius (Mobile) | min. 15 x OD | |
| Bending Radius (Fixed) | min. 8 x OD | |
| Operating Voltage | max. 60 VDC | |
| Nominal Voltage | 300 V | |
| Contact Resistance | max. 30 mohm | |
| Operating Current per Contact | max. 4A | |
| Chemical Resistance | No | |
| Flame Resistance | UL94 | |
| Oil Resistance | ASTM 1 oil, Mineral oils, limited to hydraulic oils | |
| Acid and Alkali Resistance | No | |
| Pollution Degree | 3 | |

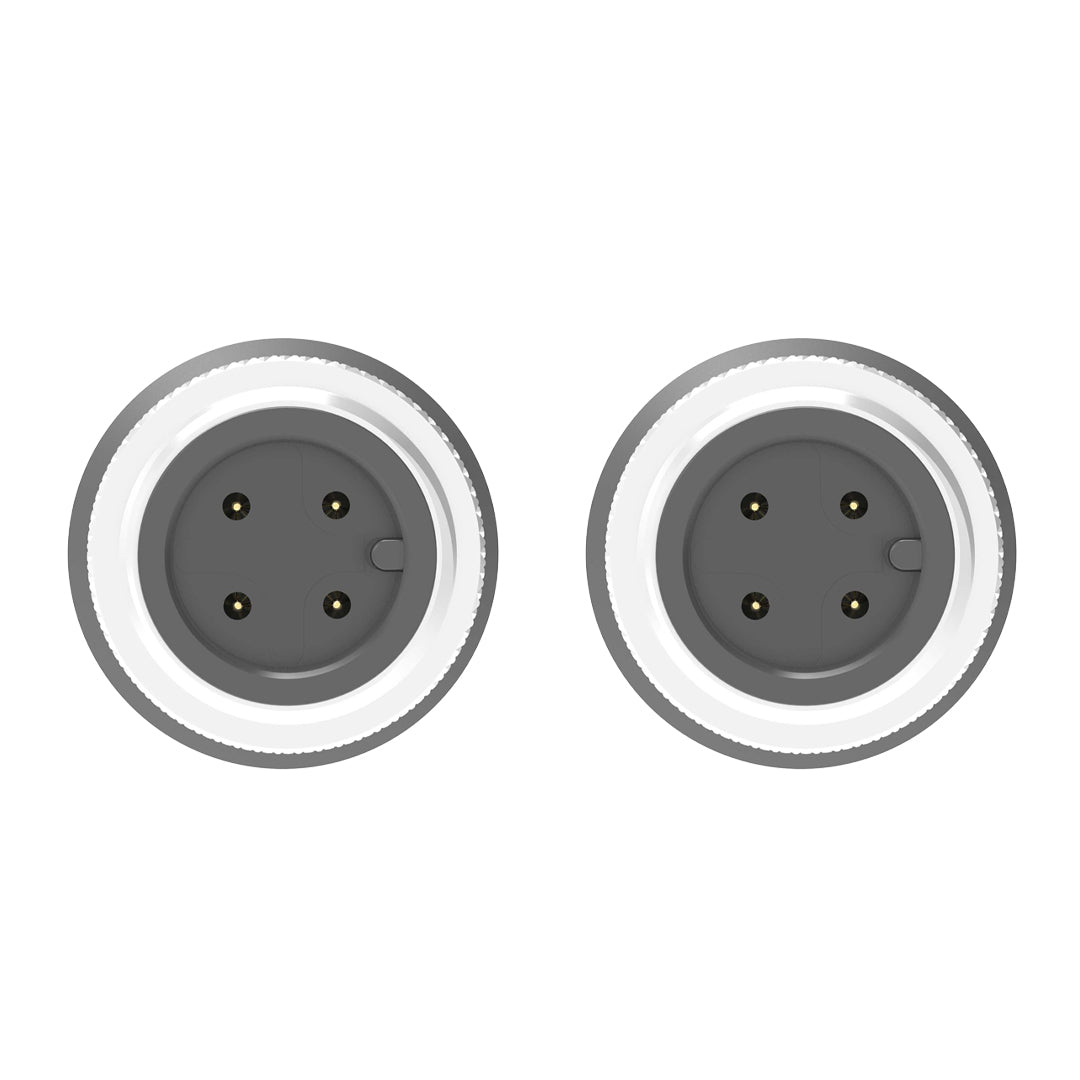

| Connector(s) | Connector A | Connector B |
 |
|
|
| Connection | M12 | M12 |
| Angle Cable Outlet | 0 Degree | 0 Degree |
| Gender | Male | Male |
| Coding | A | A |
| No. of Poles | 4 | 4 |
| Width Across Flats | SW13 | SW13 |
| Tightening Torque | 0.6 Nm | 0.6 Nm |
| Knurled Nut Material | Zinc-pressure die casting, Surface Ni | Zinc-pressure die casting, Surface Ni |
| Degree of Protection | IP66K, IP67 | IP66K, IP67 |
| Approvals/Environmental | ||
| CE, c(UL)us | Compliant | |
| RoHS | Compliant | |
| Silicon-Free | Compliant – Cable | |
