Description

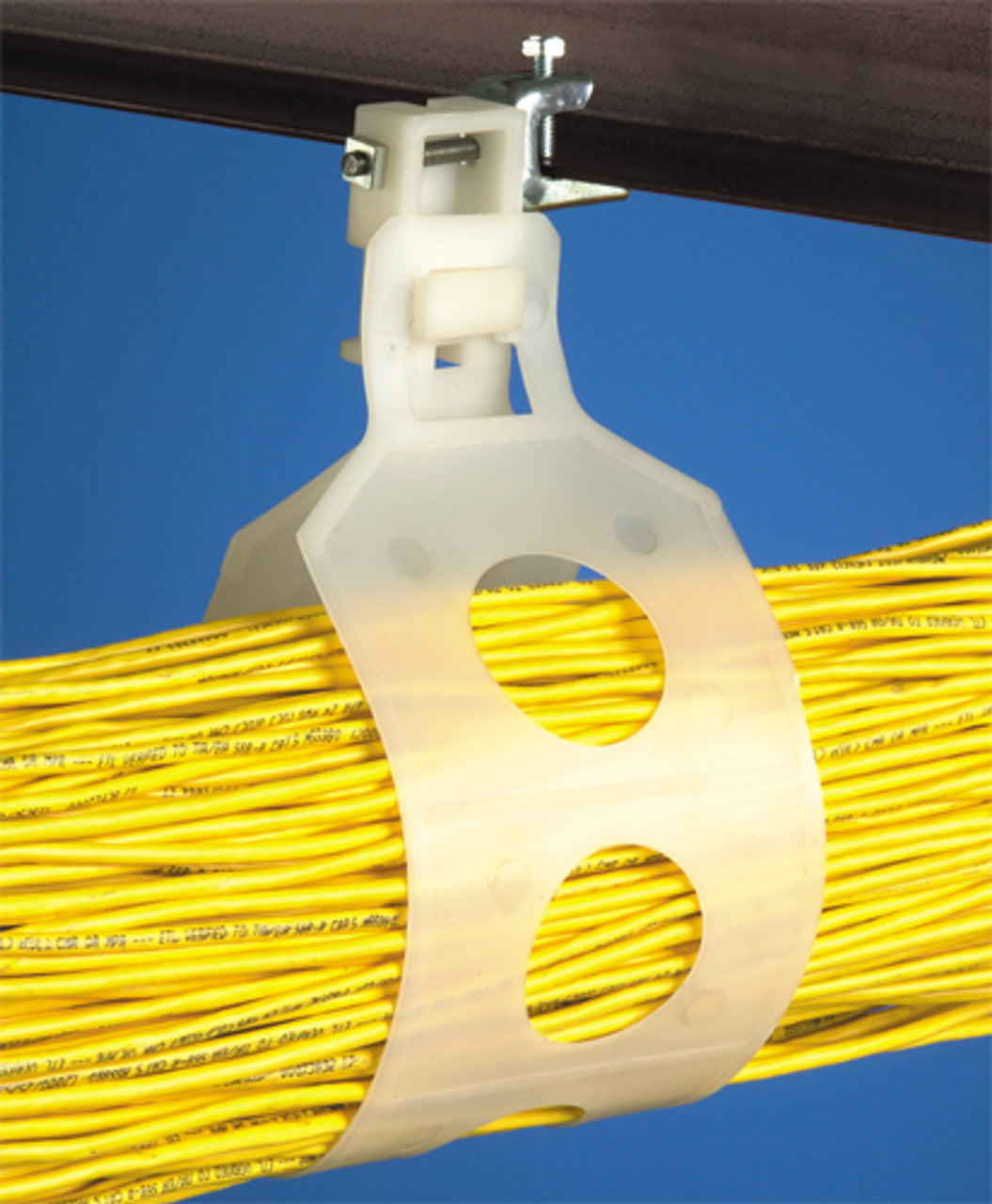

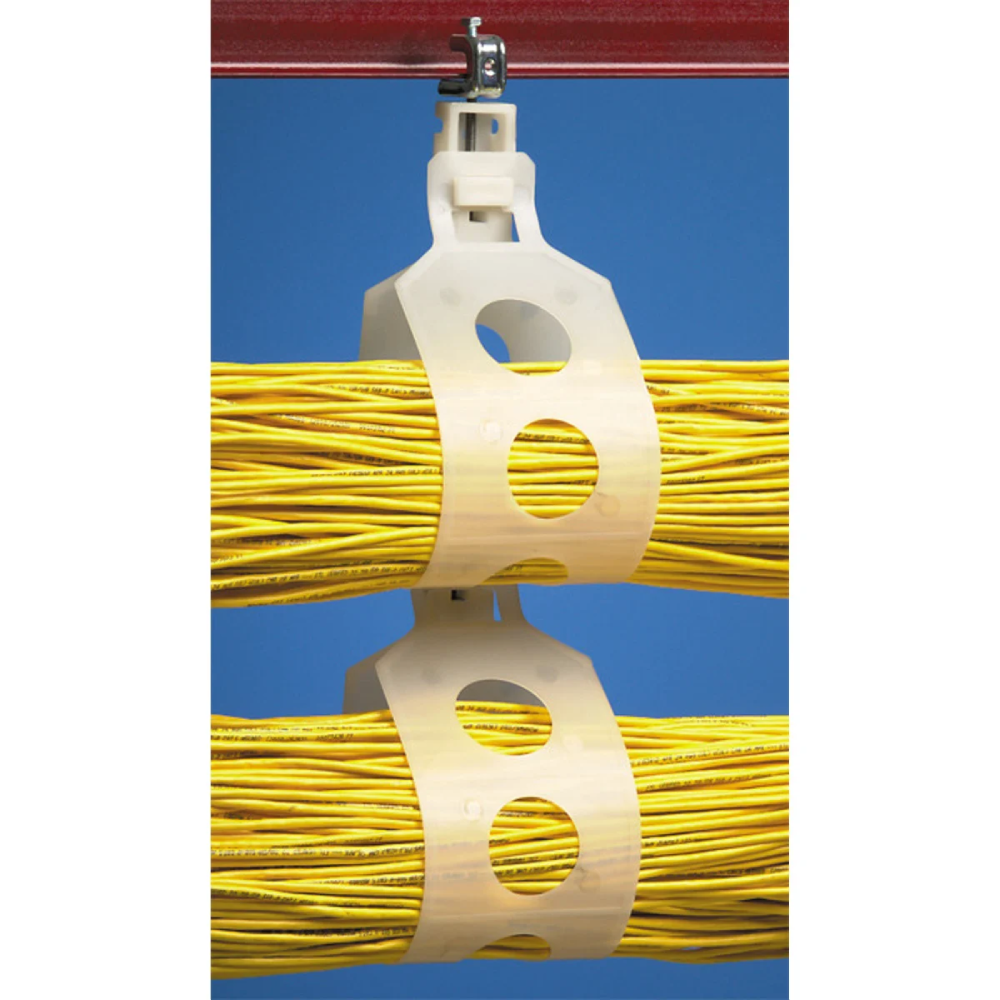

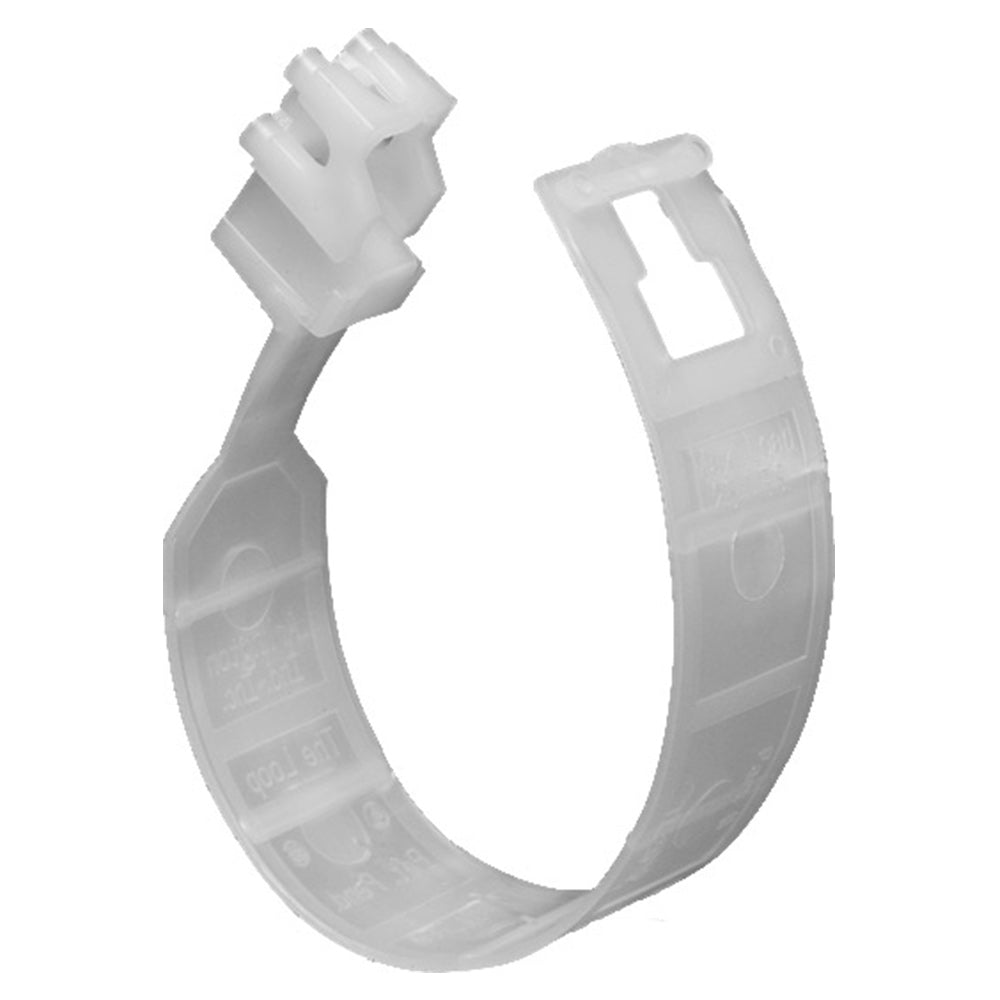

This loop hanger provides sturdy and reliable support for a variety of networking cables such as CAT5e, CAT6,CAT6A and fiber optic cabling. It is flexible, can rotate to any direction and holds a 2.5 inch diameter bundle cabling without damaging the cable. It is also made of plenum rated material so that it can be used in plenum spaces above ceilings and below floors.
*Beam Clamp, Screws, Rods and Nuts All Sold Separately
| Physical Characteristics | |
|---|---|
| Color | White |
| Material | Plastic |
| Loop Size | 2.5 inch |
| Style | Non-Metallic Cable Support |
| Trade Size | 2.5 inch |
| Fire Rating | Plenum Rated [2008 NEC code 300-22(c)] |
| Compatibility | |
| CC-TR01-18 | Threaded Rod, 1/4-20, 18 inch length, Zinc |
| CC-SC01-125-25 | Screw, 1/4-20, 1.25 inch Length, Pan-Head, Quadrex Zinc (25 pack) |
| CC-SC01-075-25 | Screw, 1/4-20, 3/4 inch Length, Pan-Head, Quadrex Zinc (25 pack) |
| CC-HN01-075-25 | Hex Nut, 1/4-20, Quadrex Zinc (25 pack) |
| Manufacturing Information | |
| Arlington Industries Number | TL25 |
| Approvals | |
| UL | Compliant |
| CSA | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.036 lbs [0.016 kg] |
| Contents | |
| Included in Package | 1 loop |
