Description

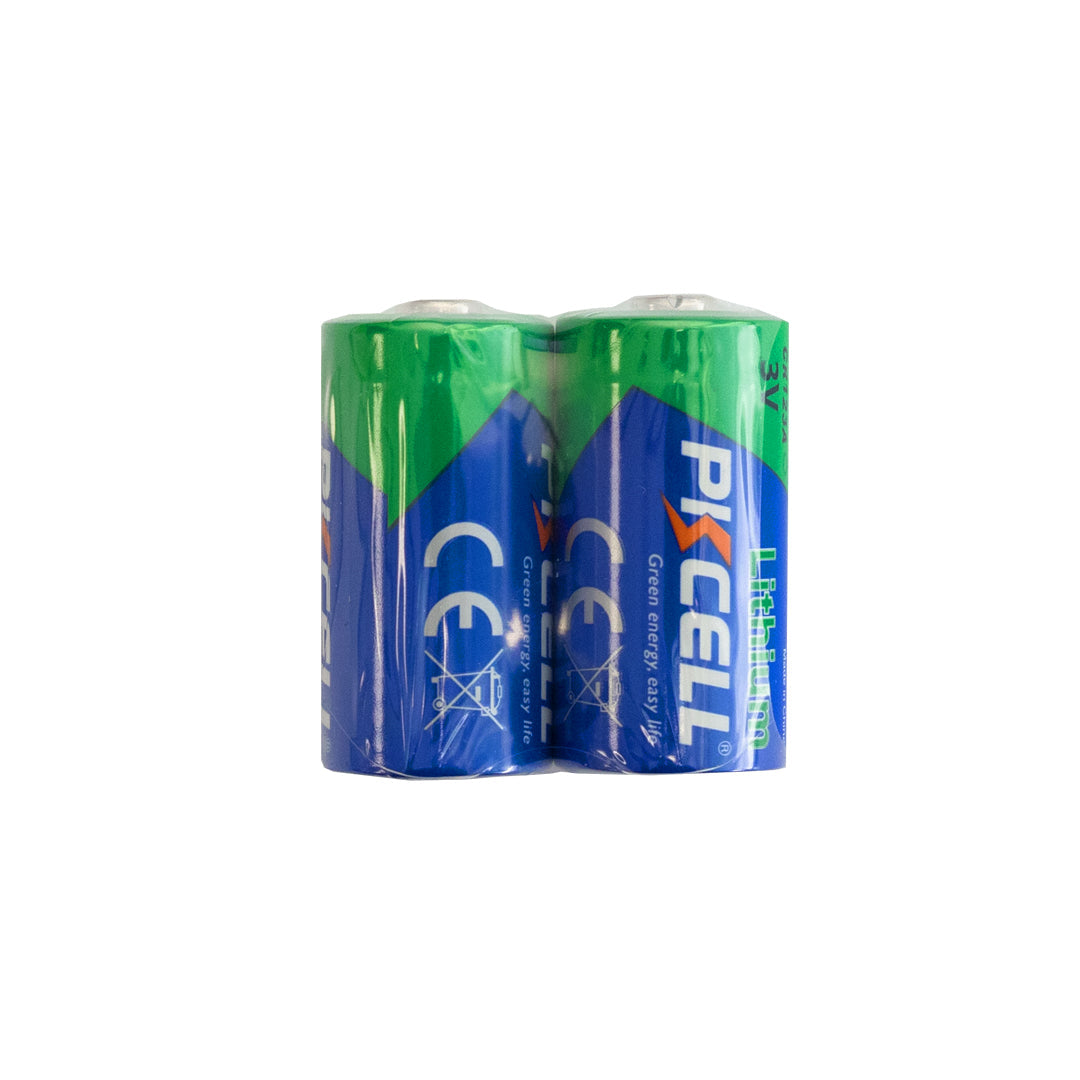

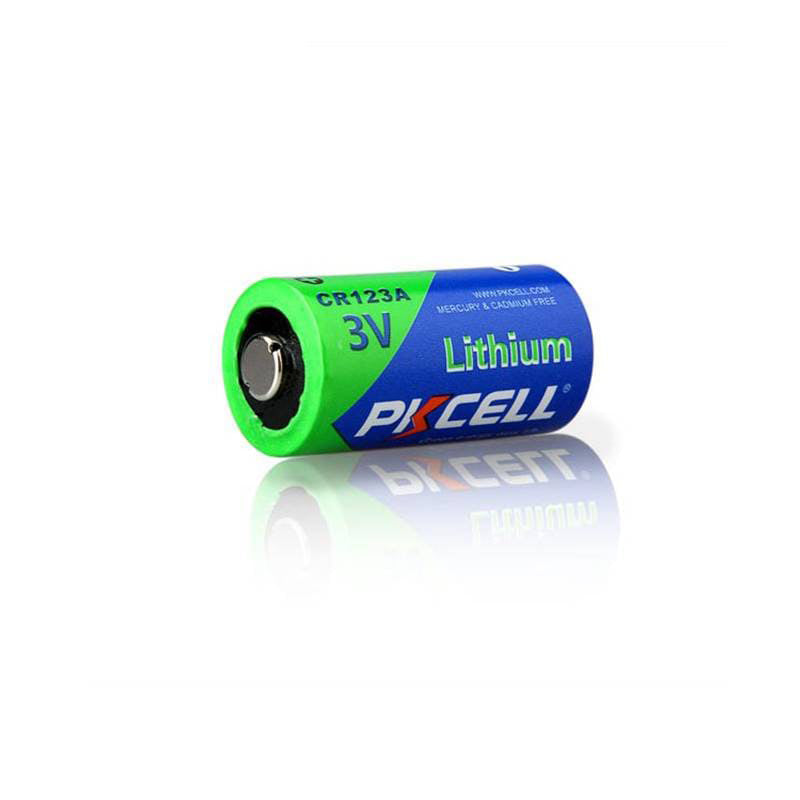

These 3V CR123A lithium manganese dioxide (Li-MnO₂) batteries offer high energy density and long-lasting performance, making them ideal for a wide range of applications. Designed with a metallic lithium cathode and a solid manganese dioxide anode, these batteries utilize a non-corrosive, non-toxic organic electrolyte for safe and efficient operation.
Features:
- High energy density
- High open circuit voltage
- Wide range of operating temperature
- Stable operating voltage and current
- Long operating time
- Low self-discharge rate (less than 1% per year at 25ºC)
Application:
-
Memory backup: CMOS memory, RTC (real time clock) and computer backup -
AMR utility meters: Electricity meter, gas meter and water meter -
Wireless alarm sensors: Smoke alarm systems, temperature monitors -
Remote monitor systems: GPS, sea buoys, lifejacket lights, life craft lights, cargo-locating systems -
Automotive and electronics: Automotive security systems, tire-pressure monitoring systems -
Electronics toll tags: Toll gates -
Military electronics: Radio communication, night vision equipment, tracking and positioning systems
| Physical Characteristics | |
|---|---|
| Type | Cylindrical Primary Lithium (Energy) |
| Chemical System | Lithium Manganese Dioxide (Li-MnO₂) |
| Standard Capacity Current | 1400mAH/1500mAh |
| Continuous Discharge Current | 10mA to 2.0V at 20 ± 3°C |
| Nominal Voltage | 3.0V |
| Max Constant Current | 1500mA |
| Max Pulse Current | 3000mA |
| Operating Temperature | -40°C to 85°C |
| Typical Shelf life | <1% per year at 25°C |
| Approval/Certification | |
| IEC, SNI, BSCI, UL, ISO | Yes |
| Packaging Information | |
| Package Quantity | 1 pack of 2 batteries |
| Product Weight | 0.079 lbs |
