Description

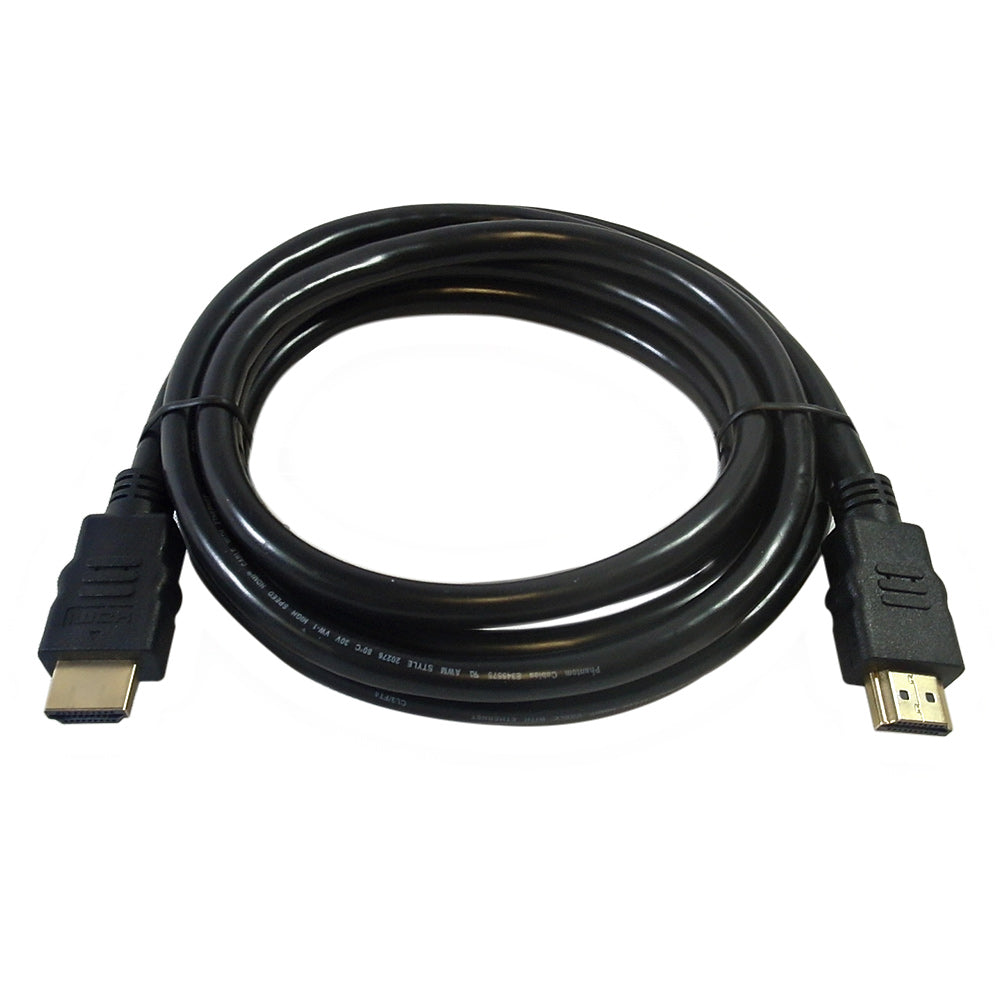

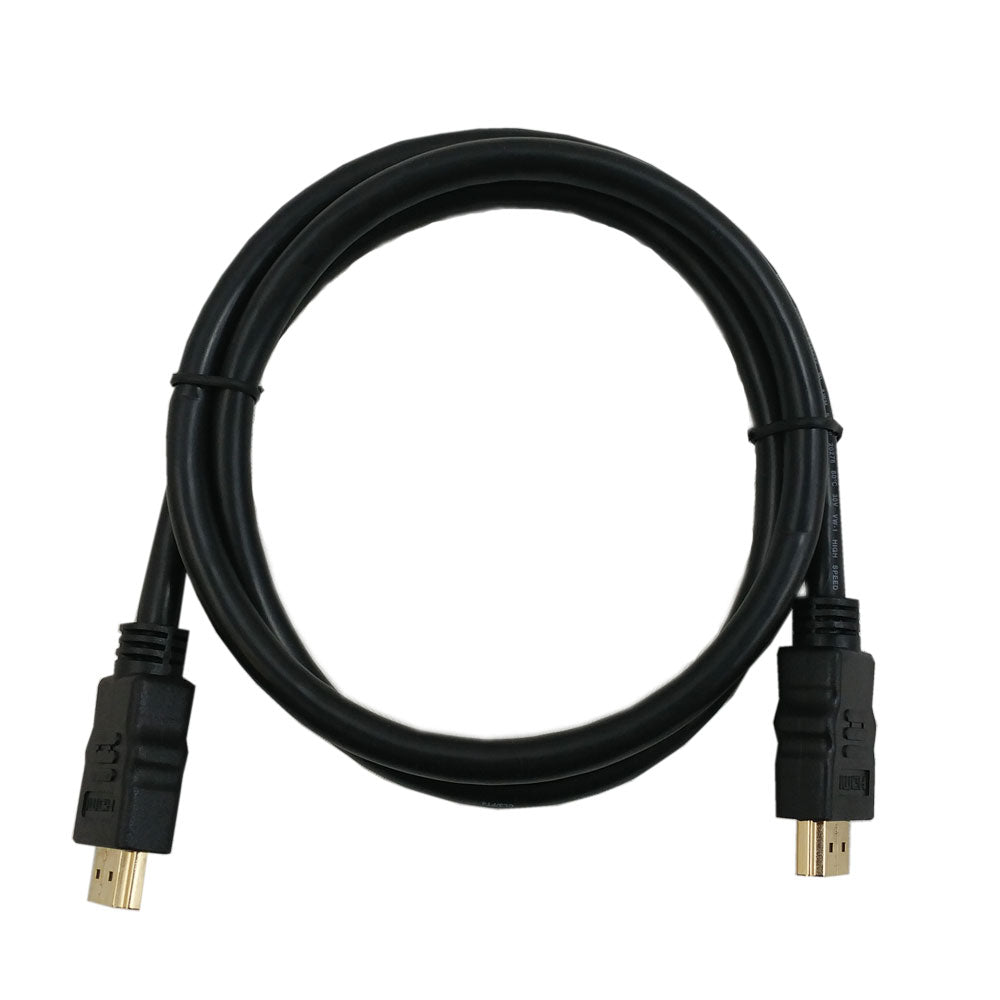

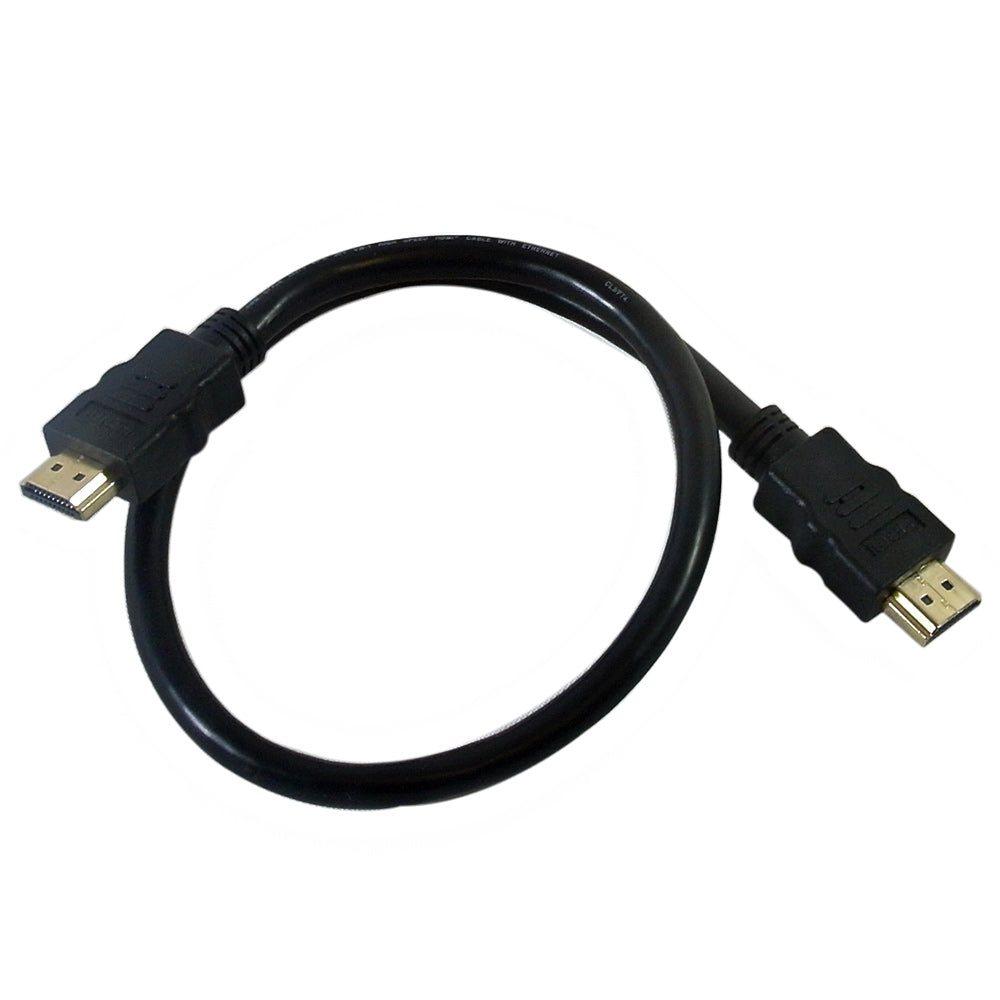

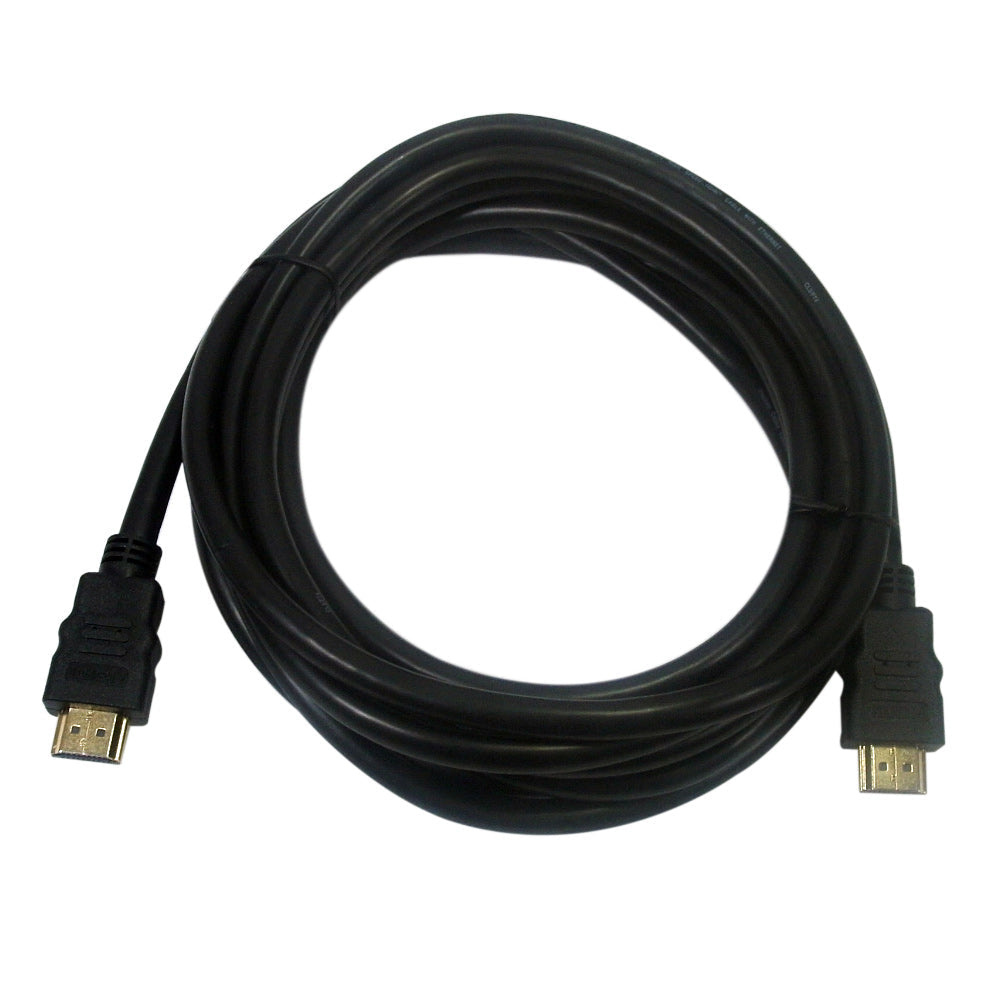

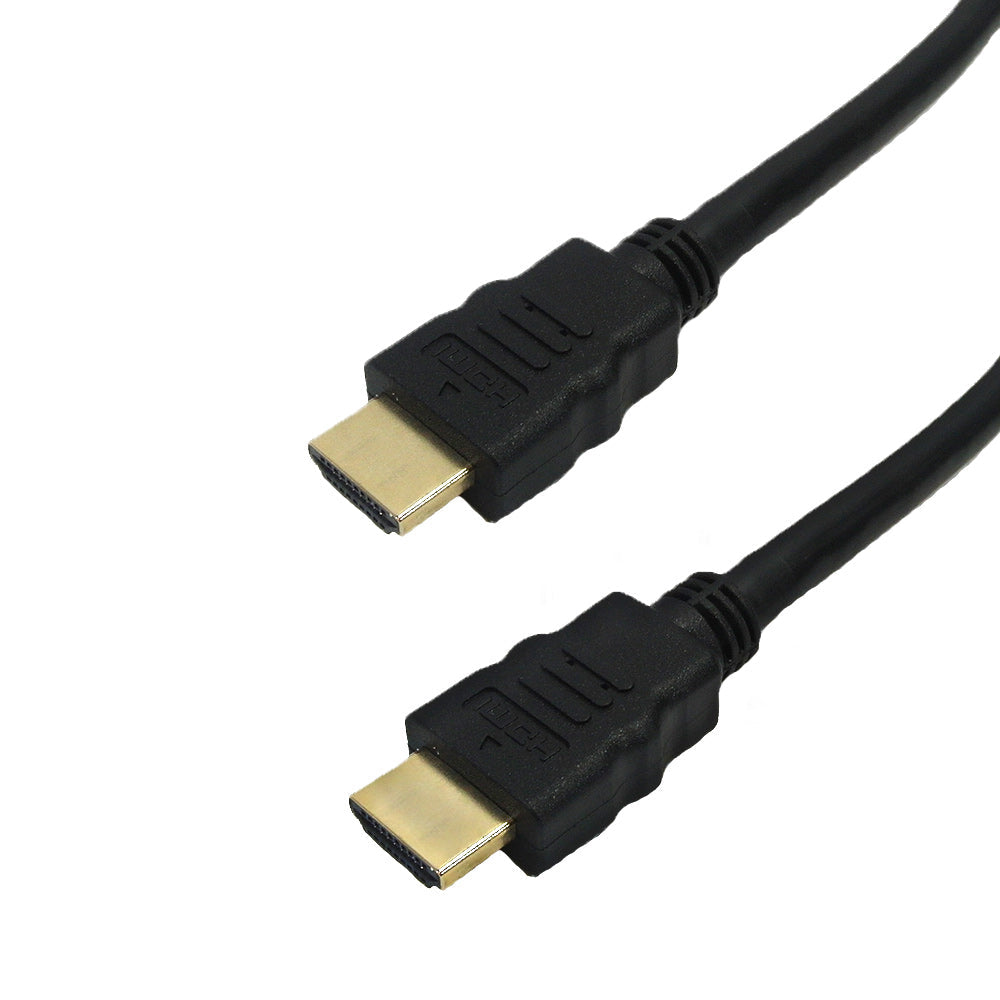

This High-Speed HDMI® cable consists of a HDMI male connector on both ends. It is typically used to connect a HDMI source such as Blu-Ray players and PC’s to a HDTV or monitor and supports a maximum ultra HD resolutions up to 4k x 2k.
| Physical Characteristics | |||||
|---|---|---|---|---|---|
| Color | Black | ||||
| Connector Plating | Gold | ||||
| Cable Length | 1.5ft ~ 15ft | 20ft ~ 25ft | 30ft ~ 50ft | ||
| Cable Diameter | 7.3 mm | 8.5 mm | 10.0 mm | ||
| Wire Gauge | 28 AWG | 26+28 AWG | 24+26 AWG | ||
| Min Bend Radius | 40mm | 75mm | 85mm | ||
| Shielding | 50% Braid + 100% Aluminum-Mylar Foil | ||||
| Jacket Fire Rating | CL3/FT4 | ||||
| Jacket Material | PVC | ||||
| Strain Relief | Molded PVC | ||||
| Connectors | |||||
| Connector A | HDMI A (19 pin) Male | ||||
| Connector B | HDMI A (19 pin) Male | ||||
| Performance | |||||
| 1.5ft ~ 10ft | 12ft ~ 40ft | 45ft ~ 50ft | |||
| Resolution | HD 4k x 2k @ 60Hz | HD 4k x 2k @ 60Hz | HD 4k x 2k @ 30Hz | ||
| Built in Ethernet Channel | Compliant | Compliant | Compliant | ||
| 3D Compatible | Compliant | Compliant | Compliant | ||
| Bandwidth | 18Gbps | 10.2Gbps | 10.2Gbps | ||
| Audio Return Channel | Compliant | Compliant | Compliant | ||
| HDMI Version | HDMI 2.0, 2.0a, 2.0b | HDMI 1.4 | HDMI 1.4 | ||
| Approvals | |||||
| c(UL)us | Approved Cable | ||||
| Environmental | |||||
| RoHS | Compliant | ||||
| Reach | Compliant | ||||
| Conflict Minerals | Compliant | ||||
| Packaging Information | |||||
| Package Quantity | 1 Cable | ||||
| Warranty Information | |||||
| Warranty | Limited Lifetime | ||||
