Description
This Gigabit Ethernet Fiber Optical Media Converter (2x RJ45 / 2x SFP) provides reliable, high-performance media conversion between copper Ethernet and gigabit optical fiber links. Equipped with auto-negotiating UTP ports and support for 10K jumbo frames, it ensures high bandwidth and low latency across extended network distances. Designed for efficiency, its 6W low-power profile minimizes thermal output for dependable, continuous operation in commercial or enterprise environments.
Features:
-

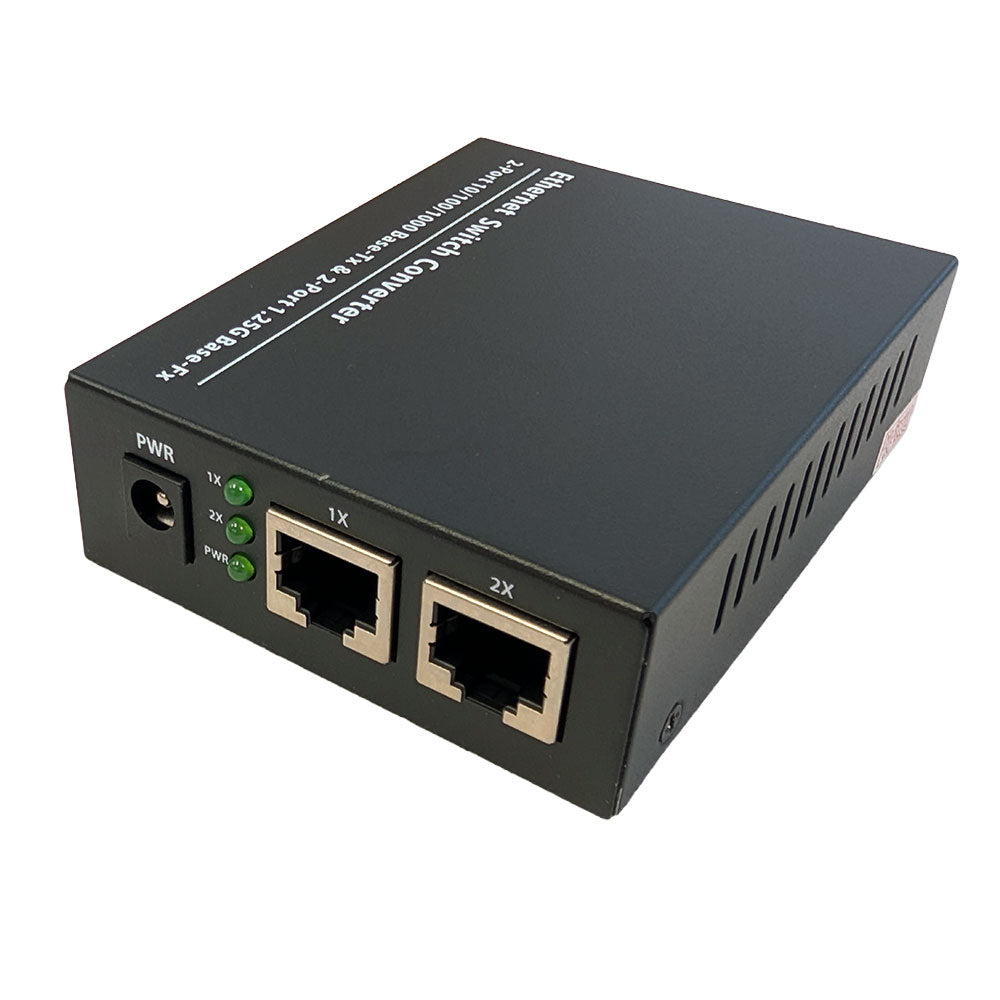

Dual Copper & Fiber Integration: Features 2 x 10/100/1000Base-TX RJ45 ports and 2 x 1000Base-FX SFP slots for seamless network conversion and switching.
-
Auto-Negotiation Technology: Automatically adjusts speed (10/100/1000 Mbps) and duplex modes (Full/Half Duplex) on copper ports for hassle-free plug-and-play setup.
-
Jumbo Frame Support: Handles max 10K-byte jumbo frames to optimize bulk data transfer and reduce CPU overhead across heavy network traffic.
-
Efficient & Reliable: Consumes just 6W of power, maintaining low heat generation for maximum long-term uptime and reliability.
-

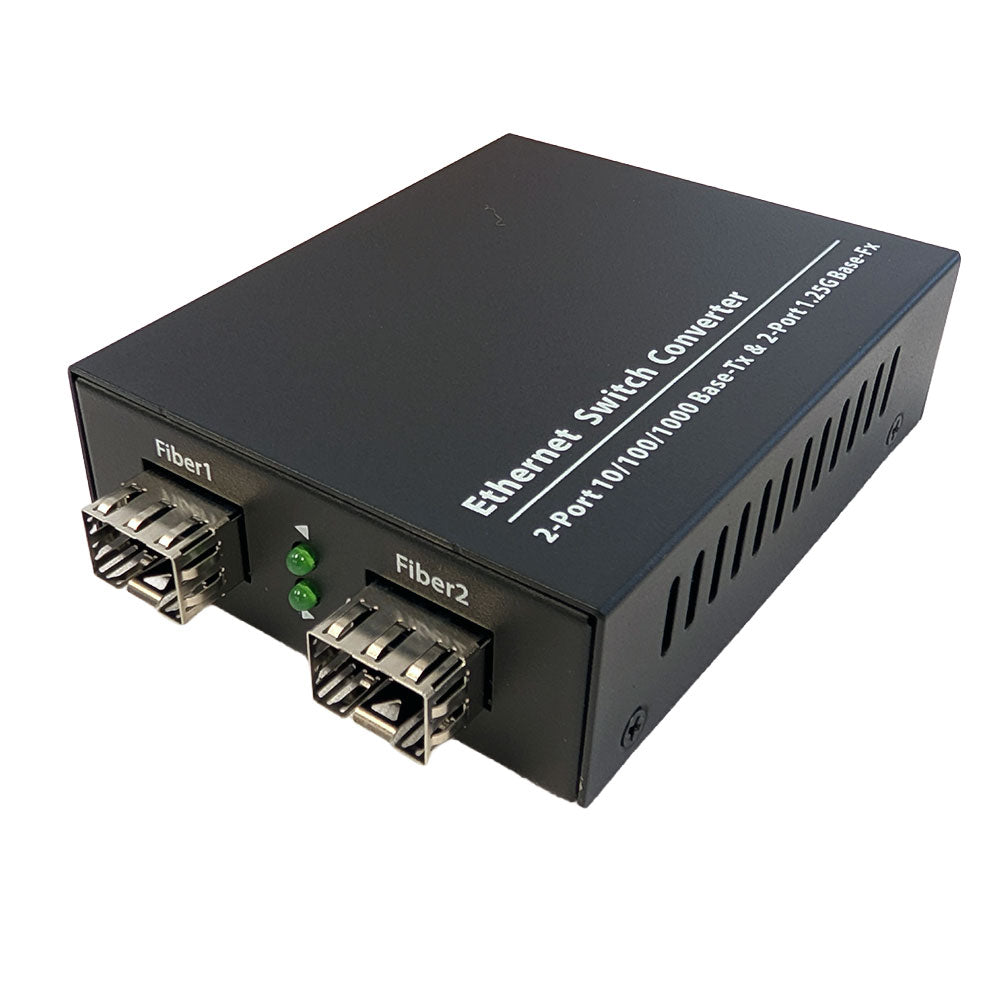

Gigabit SFP Flexibility: SFP slots support 1000M Full Duplex mode, giving you the freedom to choose your preferred fiber transceivers (single-mode or multi-mode).
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Dimensions | 90mm(L) x 72mm(W) x 26mm(H) |
| Housing | Metal |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | 0-40°C ~ 85°C |
| Relative Humidity | 5% to 90% (non-condensation) |
|
Power Supply
|
|

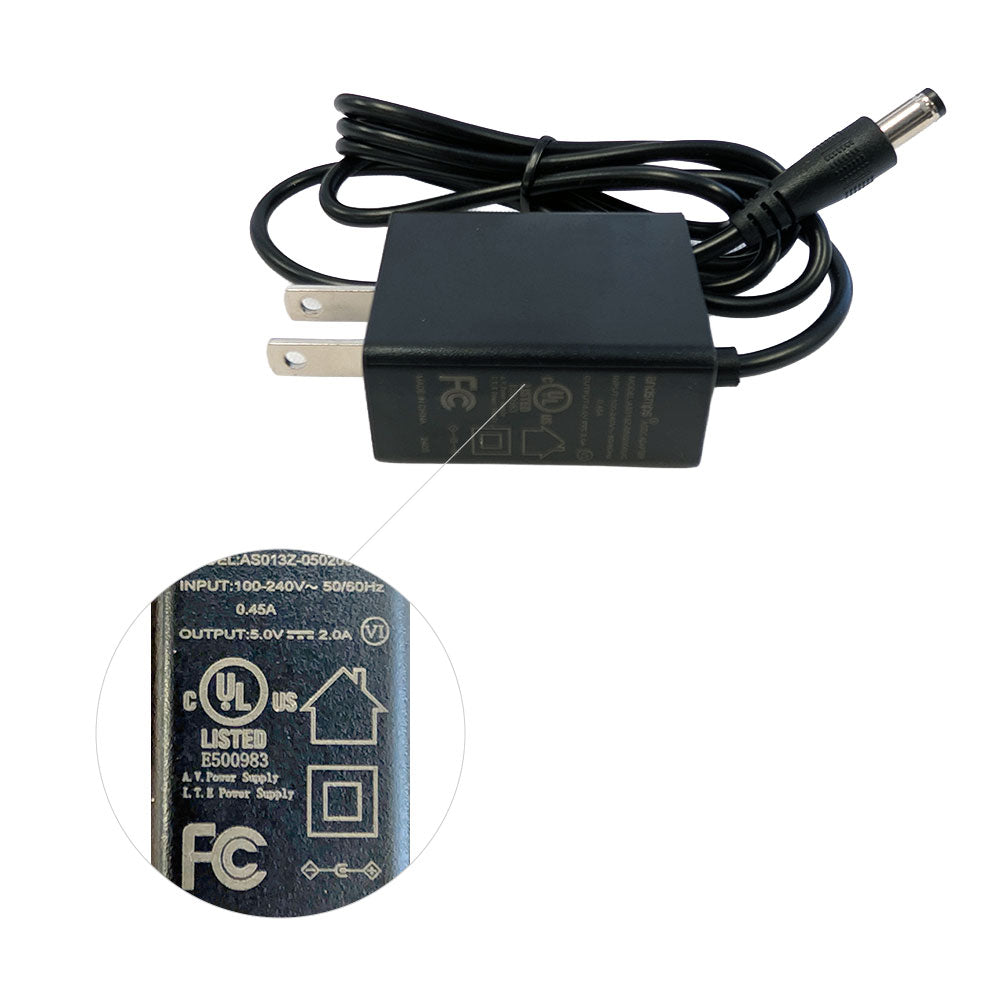

| Input | 100-240VAC~50/60Hz |
| Output | DC 5V/2A |
|
Connectors
|
|
| Copper Ports | 2x UTP RJ45，10/100/1000Mbps |
| Fiber Ports | 2x SFP slots 1000Mbps |
|
Performance
|
|
| Transmission Distance | CAT5 or 6 UTP (up to 100m) Multimode Fiber 62.5/125μm up to 224m Multimode Fiber 50/125 up to 550m Singlemode Fiber 9/125μm up to 10～100 km (dependent on transceiver) |
| Standard | IEEE802.3z/AB, 10/100/1000Base-T and 1000Base-SX/LX |
| MAC address table | 16K |
| Frame buffer memory | 1MKb |
| Switching capacity | 5.6G |
| Flow control | Full Duplex: IEEE802.3x flow control Half Duplex: back pressure flow control |
|
Certifications
|
|
| CE | Compliant |
| FCC | Compliant |
| RoHS | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1x Converter 1x Power Supply |
| Product Weight | 0.67 lbs |
|
Warranty Information
|
|
| Warranty | 1 Year |
