Description

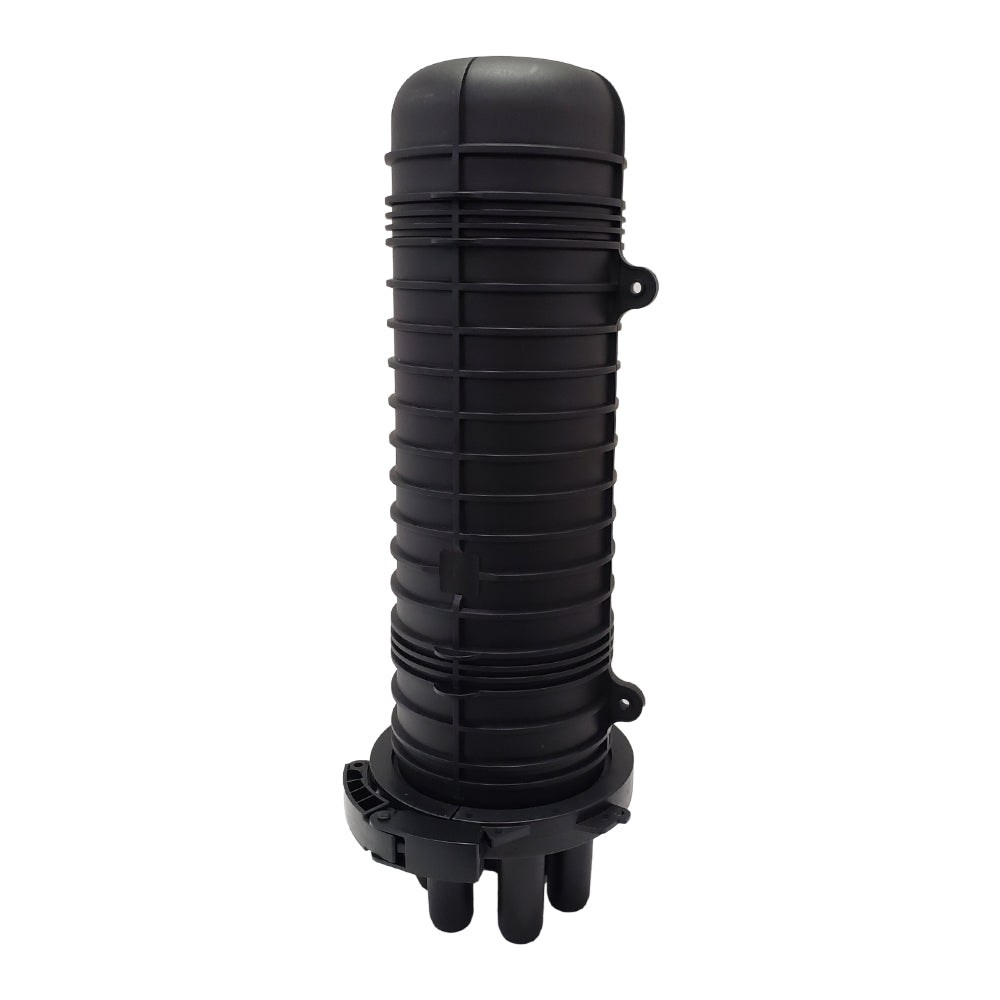

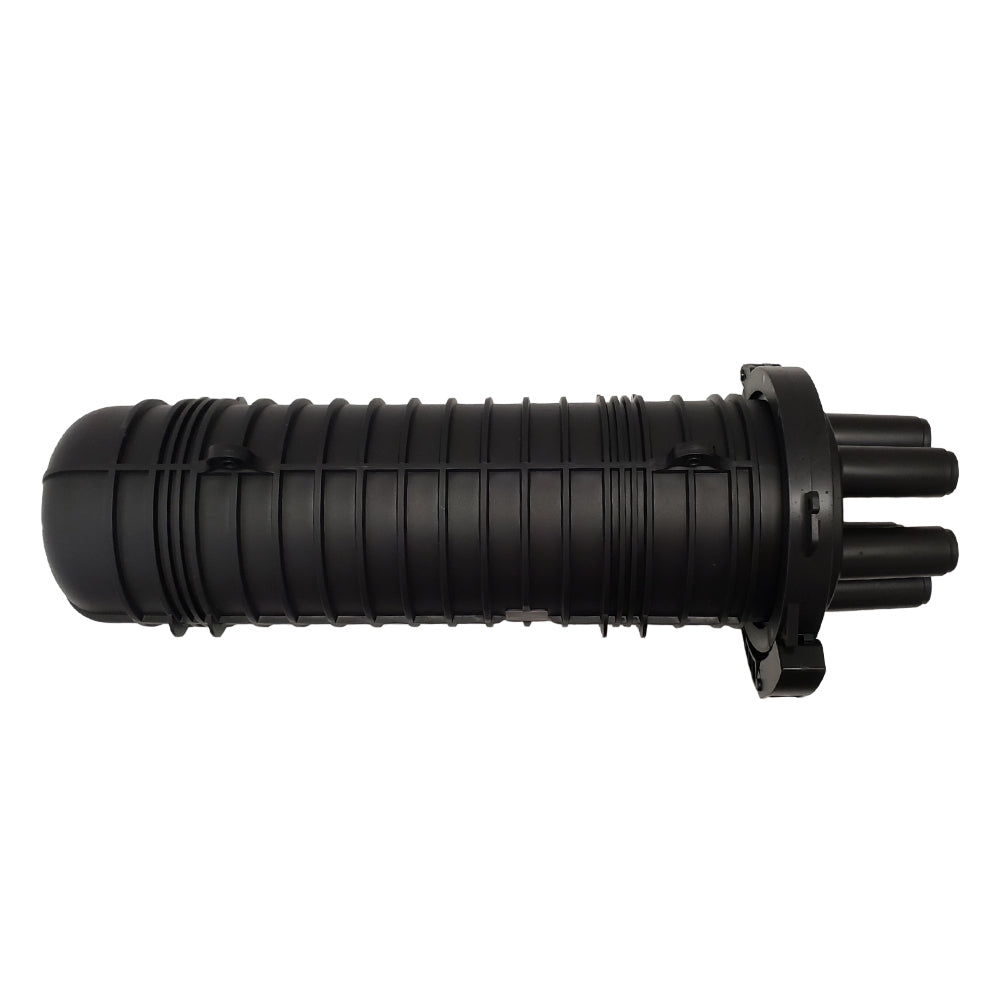

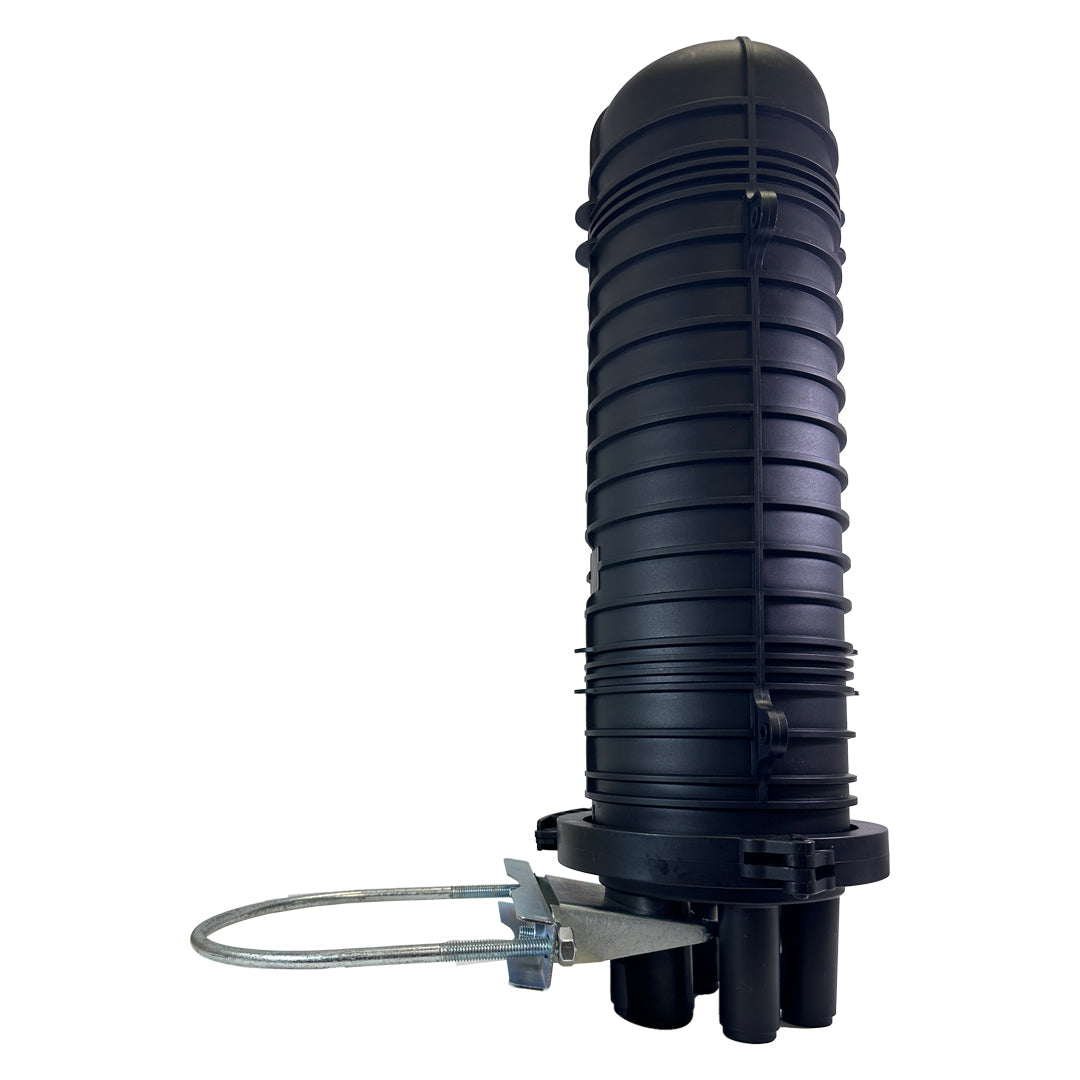

This dome type fiber optic splice enclosure is used for fiber optic cable splicing. It is IP68 rated (waterproof and dust proof), and is suitable for outdoor aerial, pole mount, wall mount and underground applications.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Material | Outside: High Impact PP Plastic + UV Closure Body Inside: ABS Splice Tray |
| Sealing Structure | High Shrinkable Sealing |
| Cable Ports | 1 oval cable Port (69 * 40mm) 4 round cable ports (Φ25mm) |

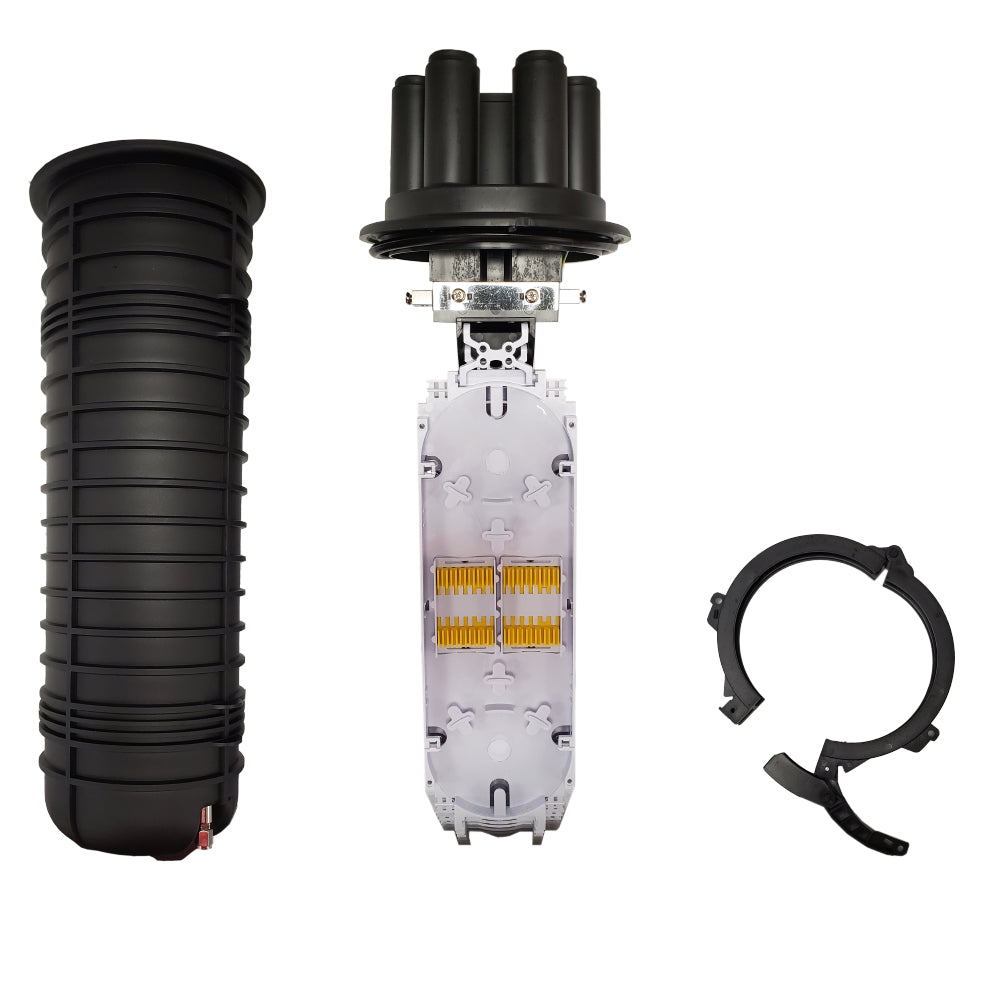

| Splice Tray | Max Quantity of Splice Trays: 6pcs Max Capacity of Splice Tray: 24 fibers |
| Capacity | 144 fibers max |
| IP Standard | IP68 waterproof and dust proof |
| Electrical Performance | With Grounding Device |

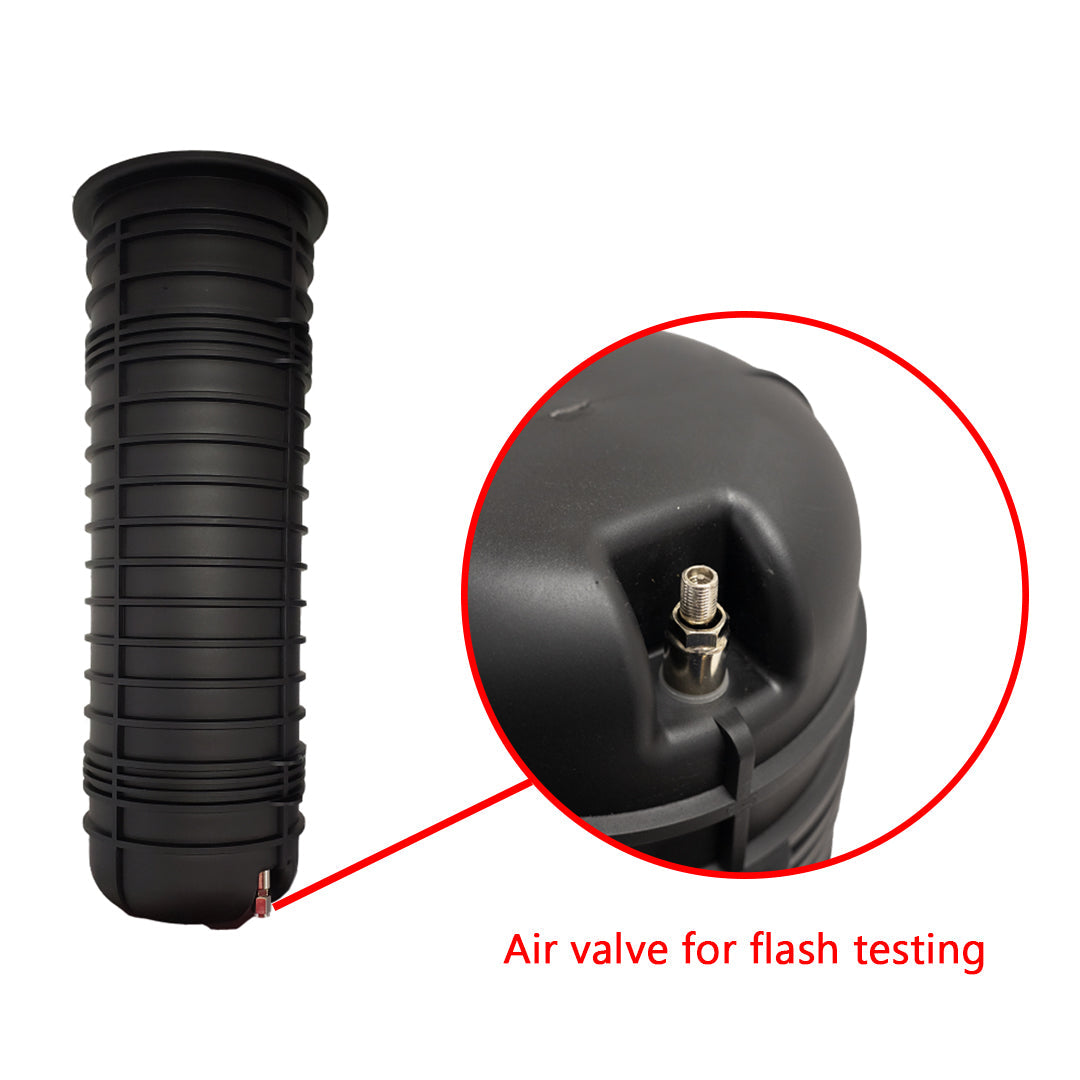

| Valve | Air valve for flash testing |
| Temperature Range | -20°C to 60°C |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 7.55 lbs |
