Description

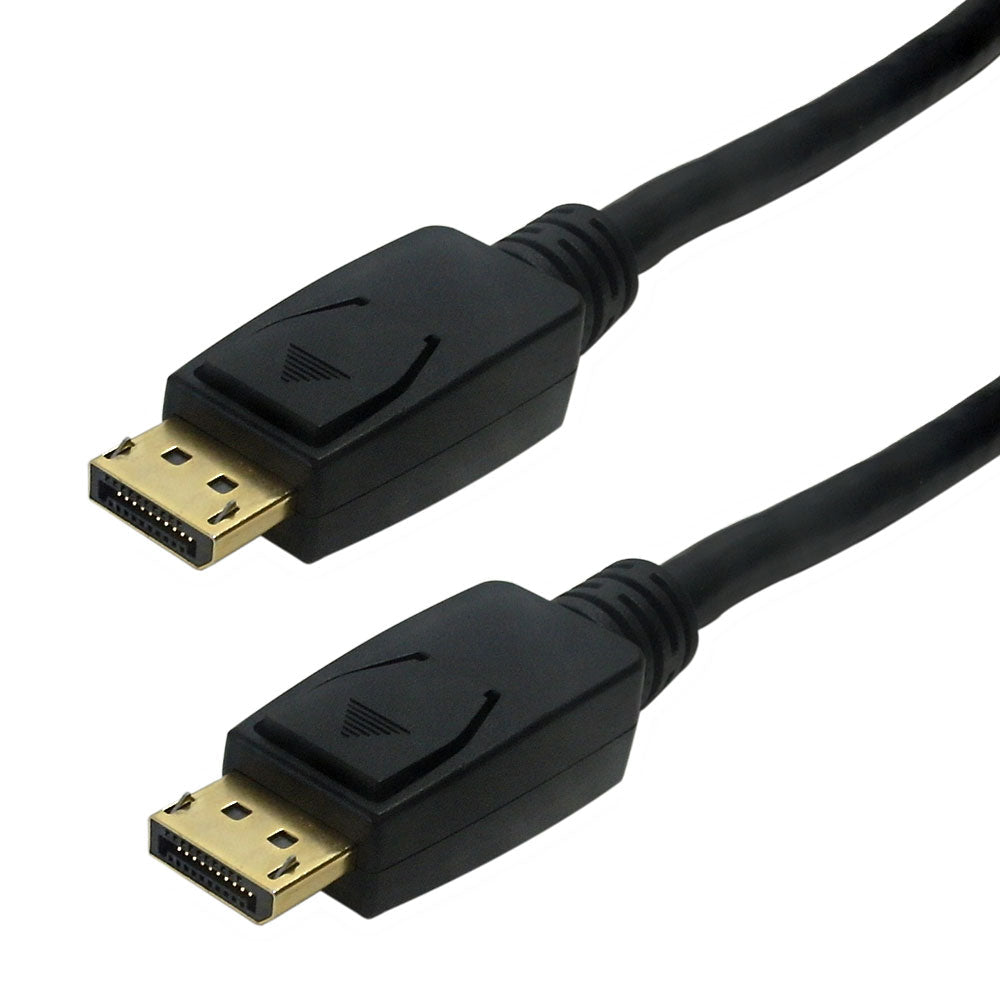

This cable consists of a DisplayPort male on one end and a DisplayPort male on the other end. It is typically used to connect a DisplayPort source to a DisplayPort monitor.
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 7.3 mm |
| Wire Gauge | 26AWG |
| Jacket Material | PVC – Polyvinyl Chloride |
| Jacket Rating | CL3, FT4 Riser Rated |
| Cable Shielding | Compliant |
| Strain Relief | Molded PVC |
| Temperature Rating | 80 deg C |
|
Connector(s)
|
|
| Connector A | DisplayPort Male |
| Connector B | DisplayPort Male |
|
Performance
|
|
| Maximum Bandwidth | 10.8 Gbps (2.7Gbps * 4 lanes) |
| Maximum Resolution | 4K x 2K (3840 × 2160) |
| Maximum Frequency | 60Hz |
| 3D Support | Compliant |
| DP Version | v1.1 |
|
Approvals
|
|
| c(UL)us | Compliant |
|
Environmental
|
|
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
