Description
Overview

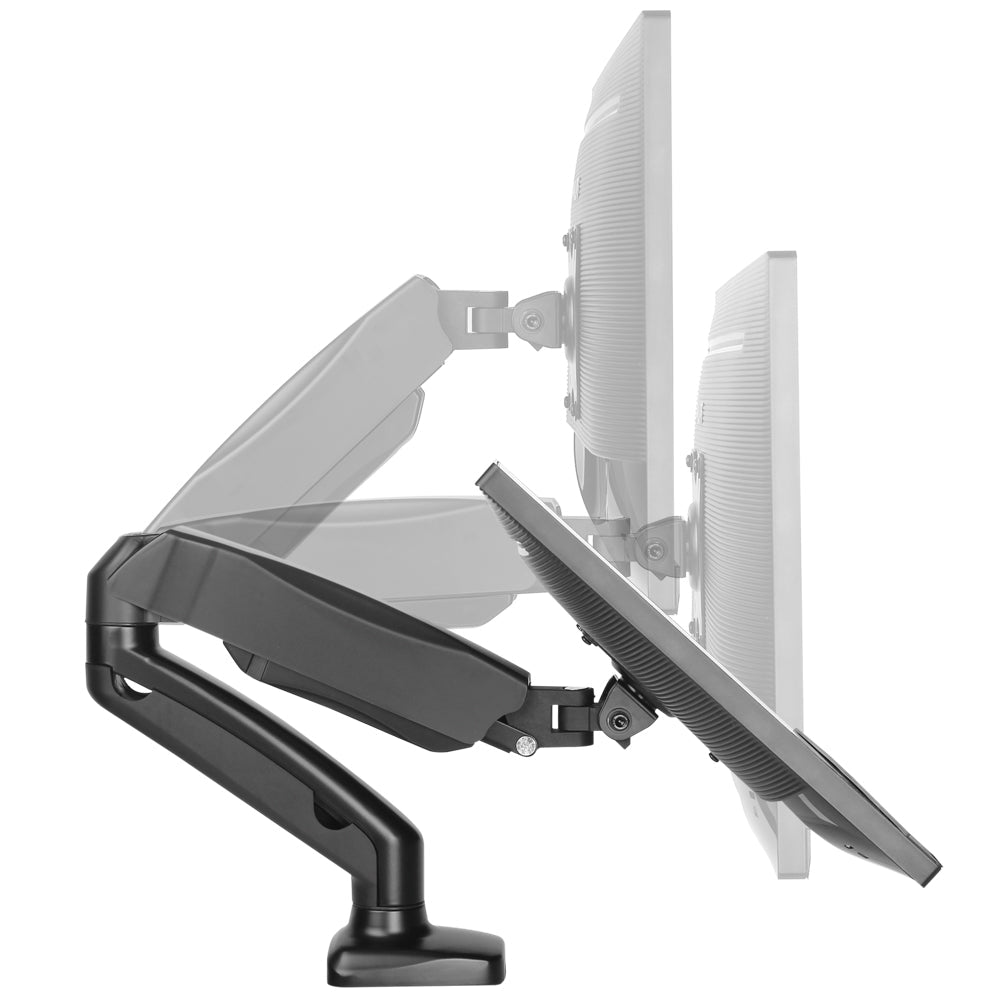

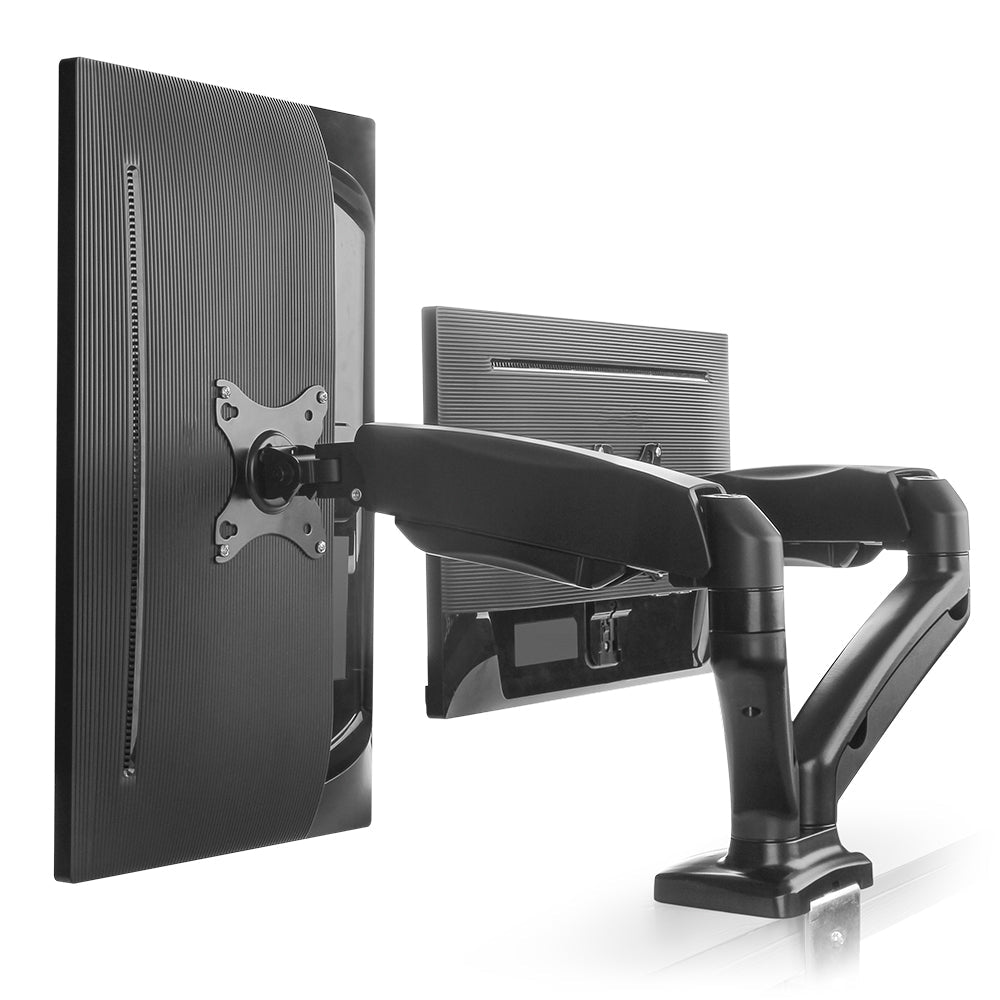

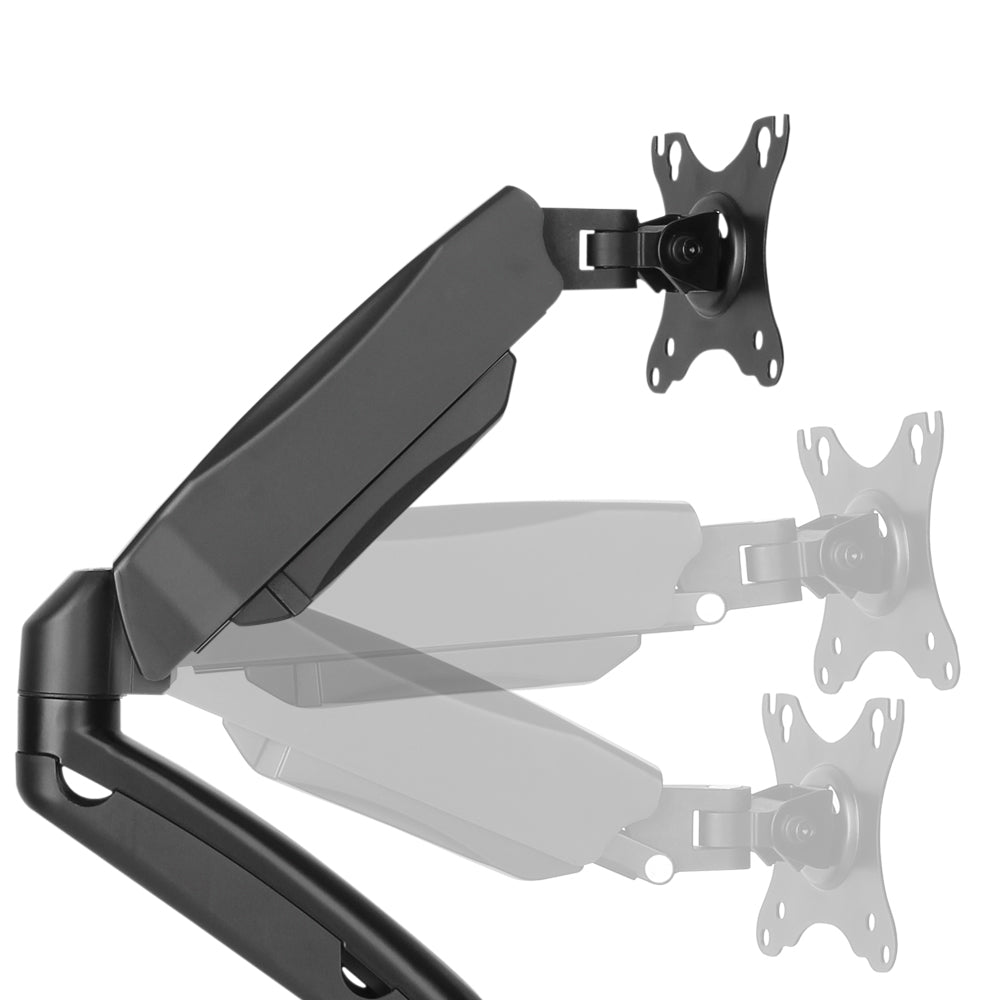

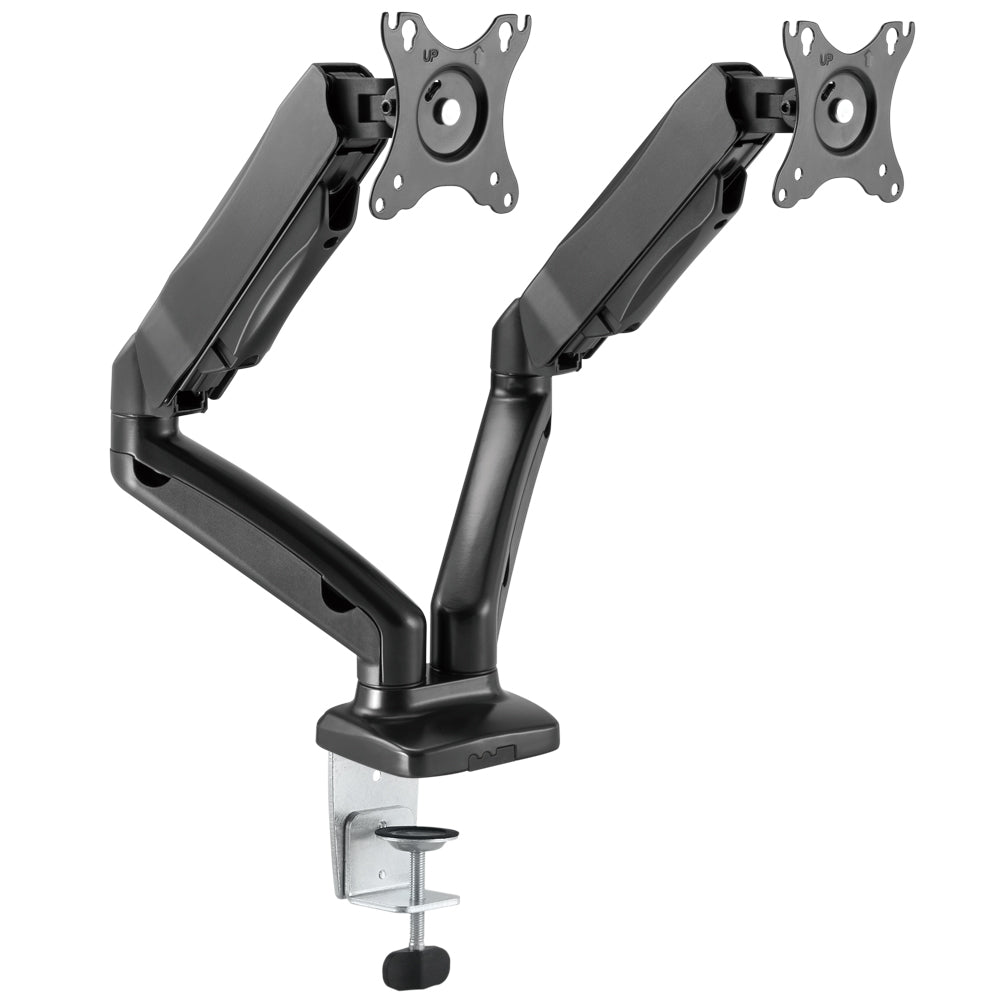

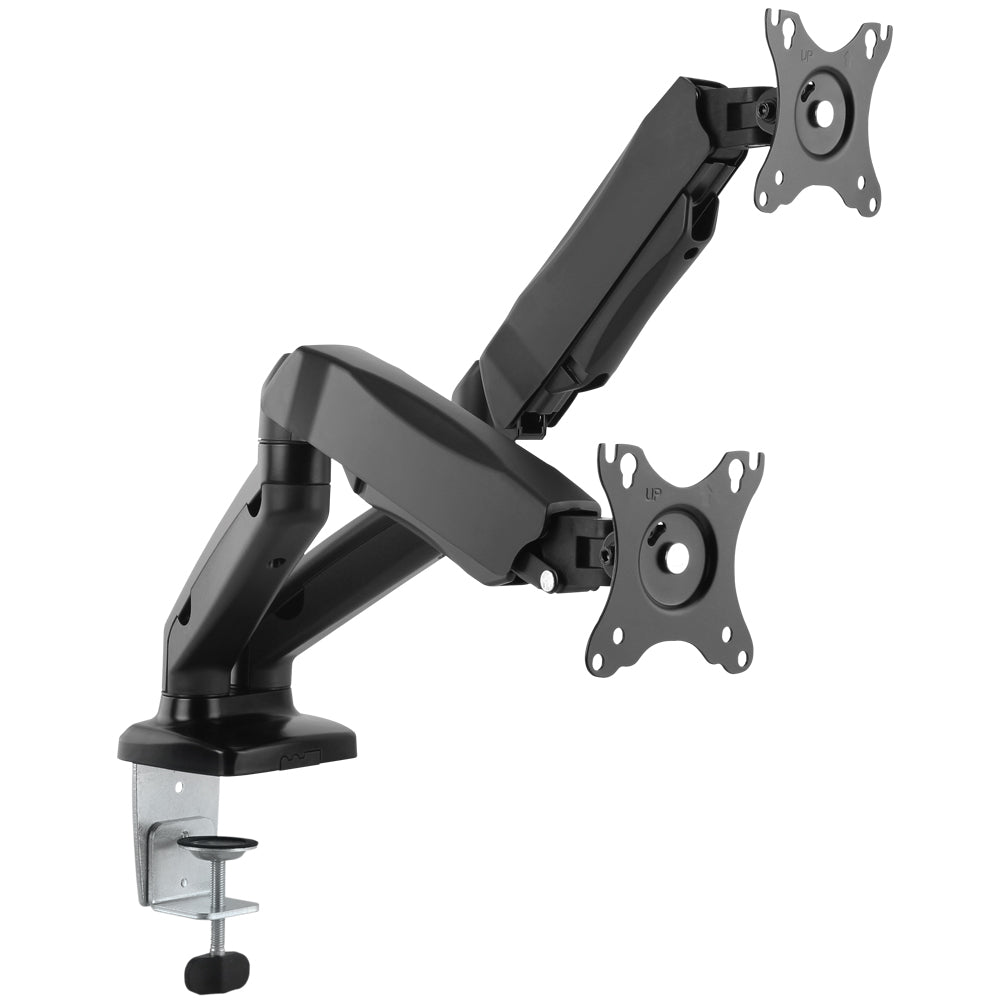

This full motion swivel, tilt and extending dual desktop display mount is designed to hold most 17 inch to 32 inch displays with a maximum VESA hole pattern of 100×100. It offers up to a 90° to -45° tilt, 90° to -90° swivel and screen rotation of 180° ~ -180°. It can be used in both residential and commercial environments.
 |
Easy Installation and AdjustmentWith the universally supported VESA hole mounting pattern, this desktop mount is easy to set-up and install. It is easy to adjust, with no tools required. Counterbalance the Weight of your MonitorThe gas spring ensures smooth movement with ease and perfectly counterbalances the weight of the monitor. Two Mounting OptionsThis desktop mount can be mounted in two ways – desk clamp mount or through hole mount.   |
Specifications
|
Physical Characteristics
|
|
|---|---|
| Mounting Style | Gas Spring Monitor Arm |
| Color | Black |
| Material | Aluminium, Plastic |
| Mounting Pattern | VESA 75×75, 100×100 |
| Dimensions | 825x110x570mm [32.5 x 4.3 x 22.4 inches] |
| Screen Quantity | 2 |
| Screen Size | 17 – 32 inches |
| Weight Capacity (per screen) |
4.4~14.3lbs [2~6.5kg] |
| Tilt | +90° ~ -45° |
| Swivel | +90° ~ -90° |
| Screen Rotation | +180° ~ -180° |
| Arm Full Extension | 450mm (17.7″) |
| Installation | Grommet, Clamp |
| Suggested Desktop Thickness | Clamp: 10~83mm [0.39~3.26″] Grommet: 10~83mm [0.39~3.26″] |
| Cable Management | Compliant |
| Supports Curved Monitor | Compliant |
|
Approvals
|
|
| RoHS | Compliant |
| Reach | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 9.9 lbs [4.5kg] |
