Description

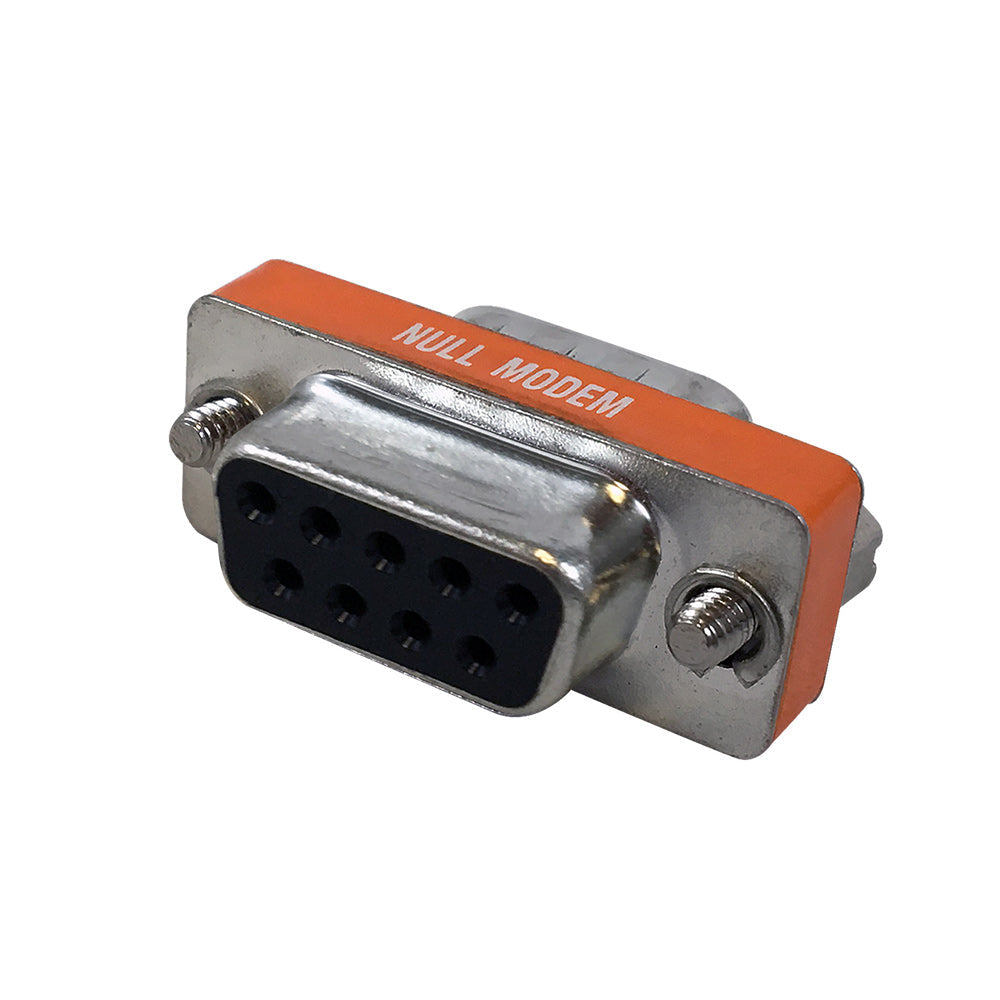

This slimline null modem adapter consists of a DB9 female on one end and a DB9 female on the other. It is primarily used to convert a DB9 male straight through cable to a DB9 female null modem cable.
| Physical Characteristics | ||
|---|---|---|
| Connector Plating | Nickel | |
| Contact Plating | Brass Gold flash over Nickel Plated | |
| Shell | SPCC Nickel Plated | |
| Insulator | PBT+30%GF UL94V-0 Blue | |
| Screw | Steel 12L14 Nickel Plated | |
| Pin Assignment | Null Modem | |
| Body Style | Slimline | |
| Dielectric Strength | 1000V AC for one minute | |
| Insulation Resistance | 1000M Ohm min. at 500V DC | |
| Temperature | -55°C ~ +105°C | |
| Rating Current | 3 AMP | |
| Connectors | ||
| Connector A | DB9 Female | |
| Connector B | DB9 Female | |
| Pin Out | ||
| DB9 Female – DB9 Female | ||
| 1 + 6 – 4 | ||
| 2 – 3 | ||
| 3 – 2 | ||
| 4 – 1 + 6 | ||
| 5 – 5 | ||
| 7 – 8 | ||
| 8 – 7 | ||
| Shell – Shell | ||
| Packaging Information | ||
| Packaging Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01 kg] | |
