Description

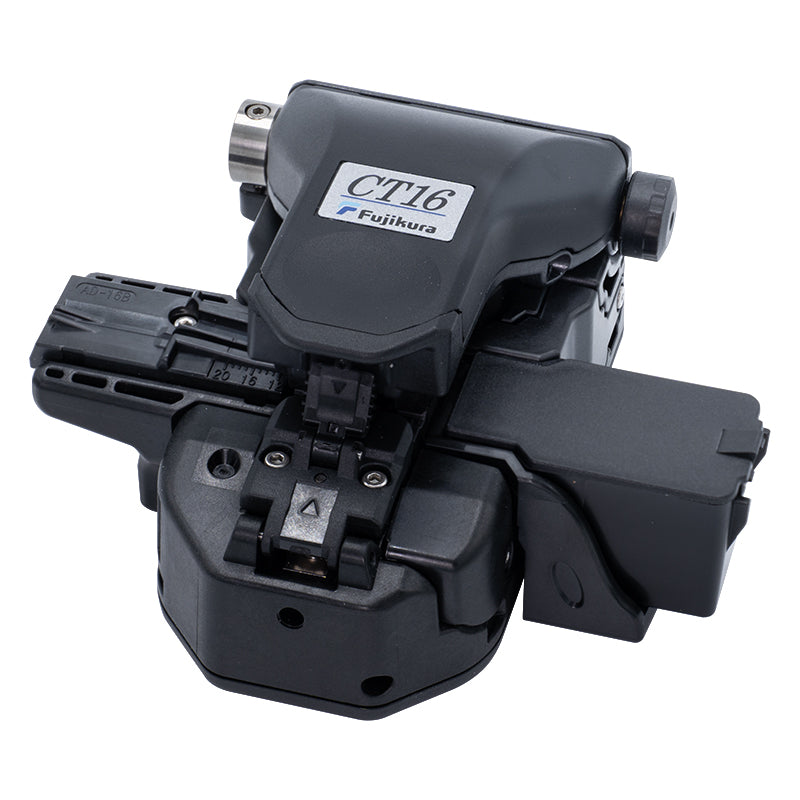

This a true one-step cleaver. The cleaver blade and fiber clamping mechanism is extremely easy to replace in the field. A manual scrap collector is included.
Features
- Dual fiber adapter plate for single or two fiber cleaving
- Ambidextrous operation available
- Field replaceable fiber clamp pads and cleaver blade
- Shock resistant for drops up to 30″ in any of six different orientations
- Compact form factor and tool-less blade rotations
|
Physical Characteristics
|
|
|---|---|
| Fiber Count | Single fiber |
| Coating Diameter | 0.25 to 0.9 mm |
| Cladding Diameter | 125 µm |
| Cleave Length | 5 to 20 mm with adapter plate 10 to 20 mm with fiber holders |
| Cleave Angle Capability | 0.3 ~ 0.9° |
| Dimensions (W x D x H) | 106 mm x 95.5 mm x 49 mm |
| Blade rotation | Manual dial underneath cleaver |
| Blade Lifetime | 48,000 fibers (1,000 fibers x 3 heights x 16 positions) |
| Temperature |
Operate: -10 to 50°C Storage: -40 to 80°C |
| Humidity |
Operate: 0 to 95%RH non-condensing Storage: 0 to 95%RH non-condensing |
|
Manufacturing Information
|
|
| AFL Part Number | S018330 |
|
Packaging Information
|
|
| Packaging Quantity | 1 |
| Product Weight | 0.4 lbs |
