Description

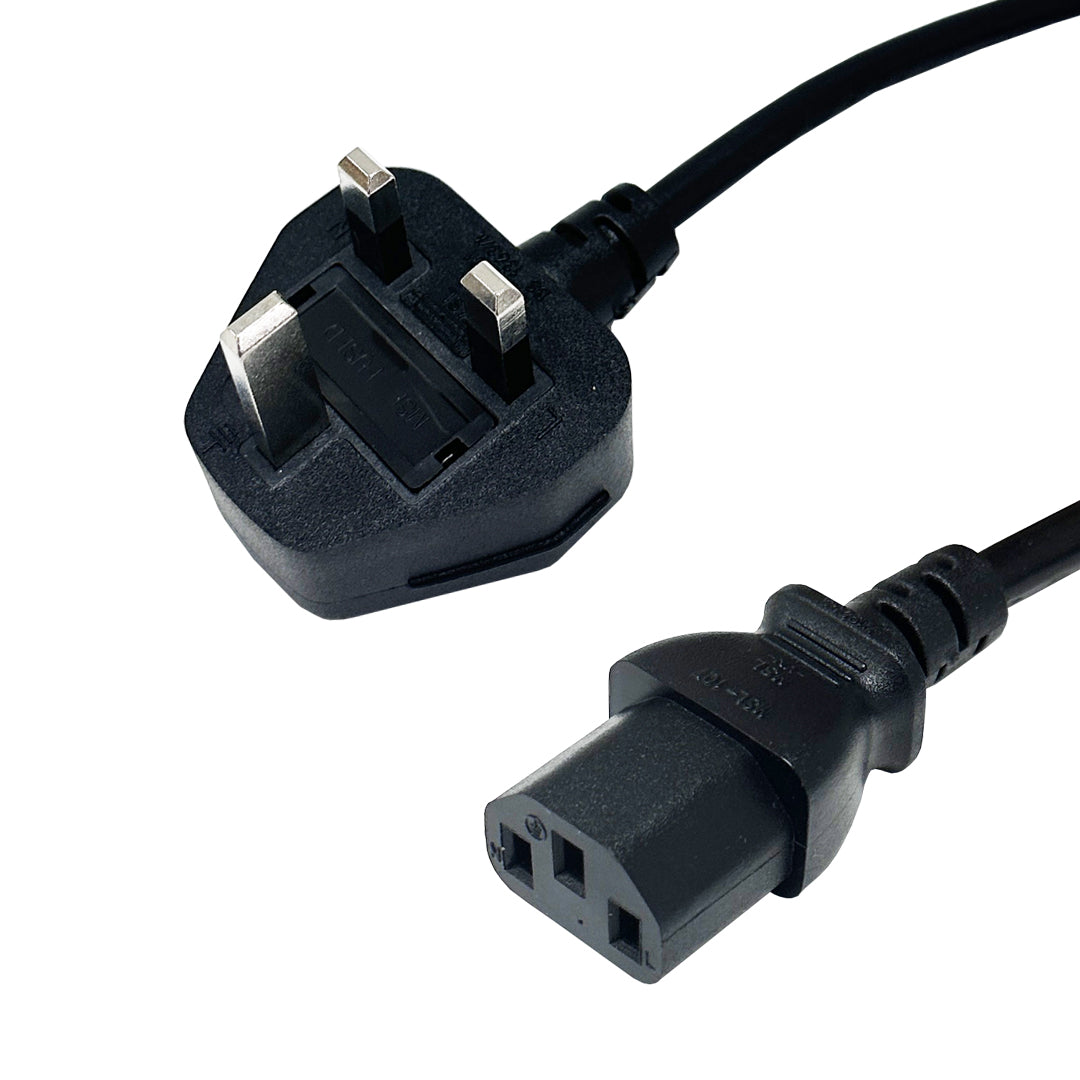

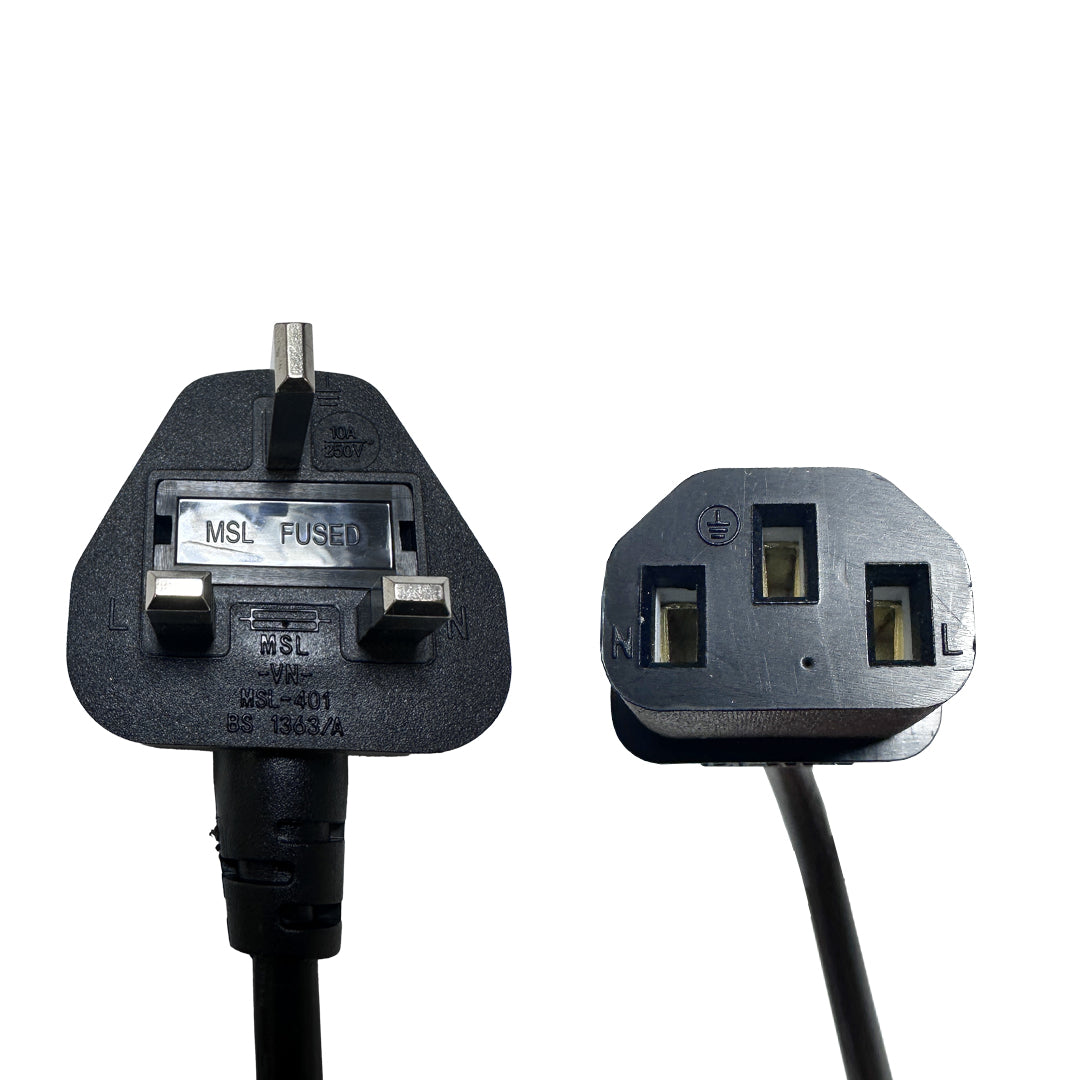

This power cord consists of a BS1363 male on one end and a C13 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 1.0mm2 |
| Jacket | H05VV-F |
| Jacket Material | 100% Virgin PVC – Polyvinyl Chloride |
| Conductor Material | 100% bare copper |
| Strain Relief | Molded 100% Virgin PVC |
|
Connector(s)
|
|
| Connector A | BS1363 (UK) |
| Connector B | IEC 60320 C13 |
|
Performance
|
|
| Power Rating | 10 Amp / 250 Volt |
|
Approvals
|
|
| Standards | Manufactured in Compliance With BS1363 |
| ISO | ISO 9001:2000, ISO 14000 |
| Additional Standards Available Upon Request | |
|
Environmental
|
|
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
