Description

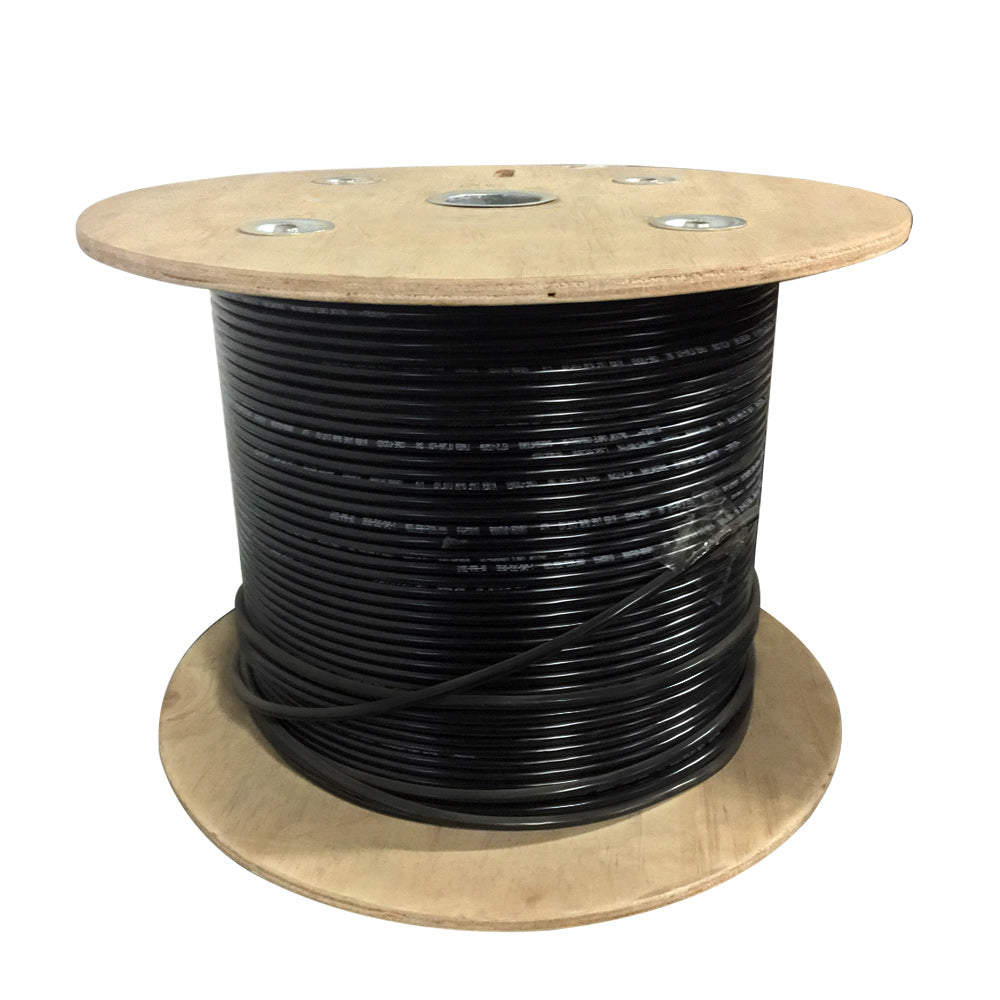

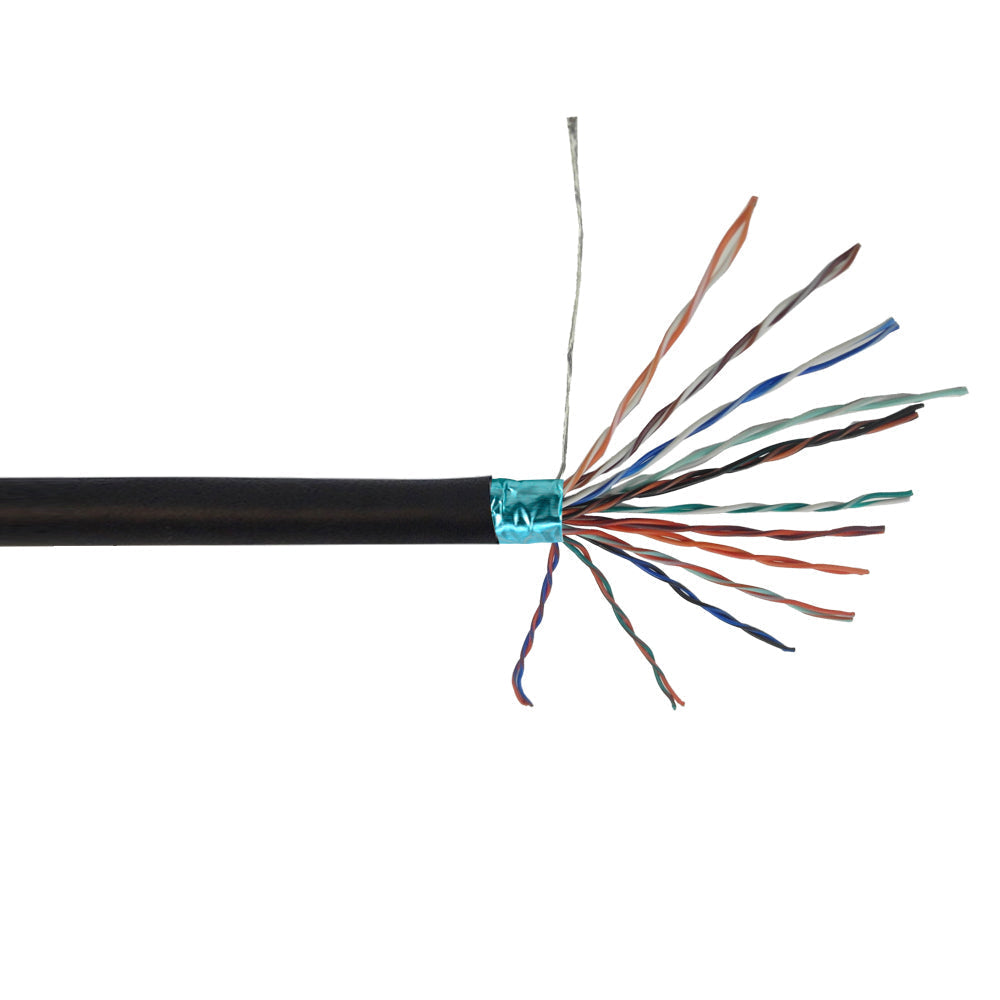

This bulk low-cap data cable is 500ft in length and consists of 12.5 pairs of 24 gauge stranded with foil shield wire. It is typically used to interconnect RS-232 data applications.
|
Physical Characteristics
|
|
|---|---|
| Cable Length | 500 foot [152.4m] |
| Color | Black |
| Cable Diameter | 9.50 mm |
| Number of Pairs | 12.5 Pairs |
| Wire Gauge | 24AWG |
| Conductor Material | Tinned Copper |
| Stranding Count & Diameter | 7/0.205±0.008 |
| Jacket Material | PVC – Polyvinyl Chloride |
| Jacket Rating | CMR/CL3/FT4 [Riser Rated] |
| Cable Shielding | 100% Mylar Foil |
| Temperature Rating | 75℃ |
|
Electrical Features
|
|
| Voltage Rating | 30V |
| Dielectric Strength | AC-500V/MIN |
| Insulation Resistance | 10 M (OHMS*KM MIN at 20℃) |
|
Approvals
|
|
| c(UL)us | Compliant |
|
Environmental
|
|
| RoHS | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 45.19 lbs [20.5kg] |
