Description

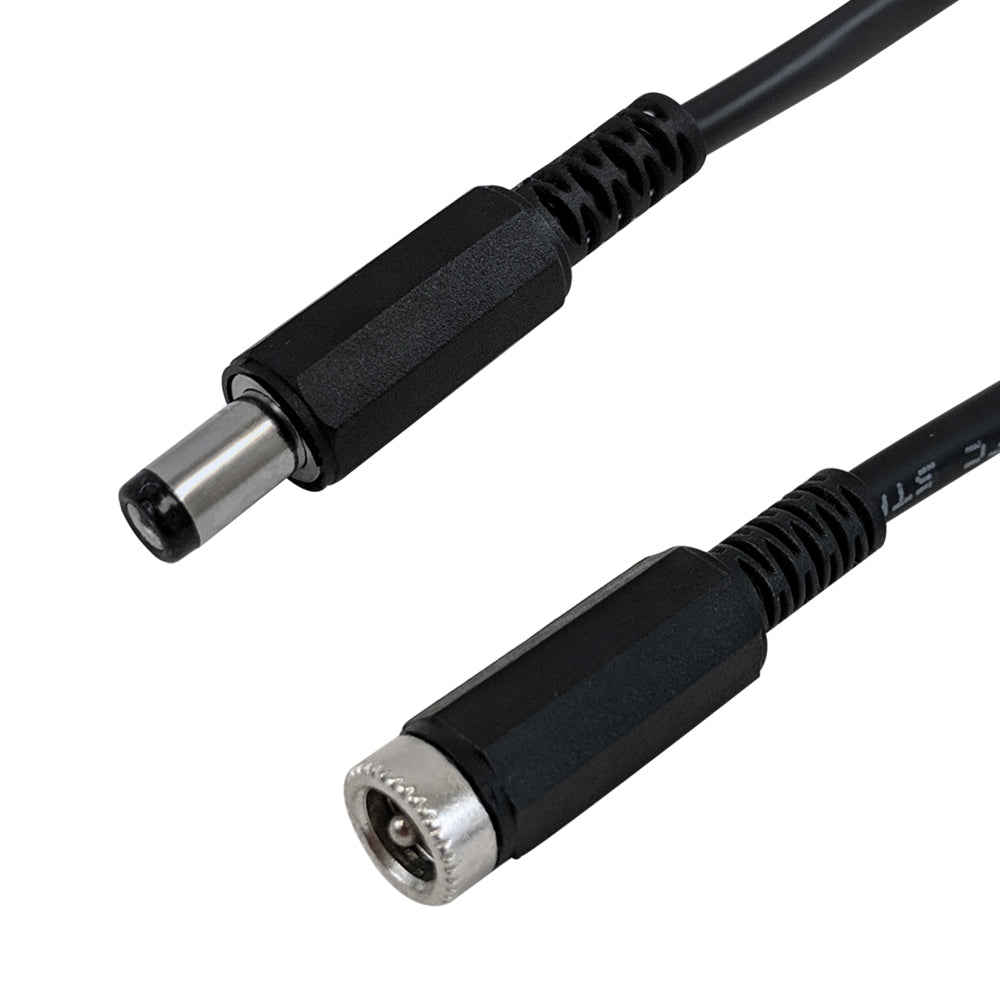

This power cable consists of a 5.5mm x 2.1mm plug to a 5.5mm x 2.1mm receptacle barrel power connector on the other end. It is typically used to extend power from a device to a AC/DC power adapter. These cables are riser (FT4) rated for use in the walls.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Jacket Material | PVC |
| Inner Jacket Material | PVC |
| Connector Plating | Nickel |
| Number of Conductors | 2 Conductors (Red/Black) Oxygen Free Copper (OFC) |
| Outer Diameter | 4.20± 0.10mm |
| Min. Ave. Jacket Thickness | 0.36 mm |
| Wire Gauge | 18 AWG |
| Maximum Voltage | 300V |
| Material (conductors) | Bare Copper |
| Stranding | 16/0.254±0.004mm |
| Individual Conductor | 1.7±0.05mm |
| Ripcord | Nylon |
| Temperature Rating | 75℃ |
| Flammability Test | In Wall Riser CMR/FT4 |
| Connector(s) | |
| Connector A | 1 – 5.5mm x 2.1mm DC Male |
| Connector B | 1 – 5.5mm x 2.1mm DC Female |
| Associated Products | |
| SPK-C6-FLW | 6.5″ 2-way Frameless Wi-Fi Ceiling Speaker – 60W max (single) |
| Environmental | |
| RoHS | Compliant |
| c(ETL) | Cable – Compliant |
| ETL | Cable – Compliant |
| Package Information | |
| Package Quantity | 1 |
| Contents | |
| Included in Package | 1 – Cable |
