Description

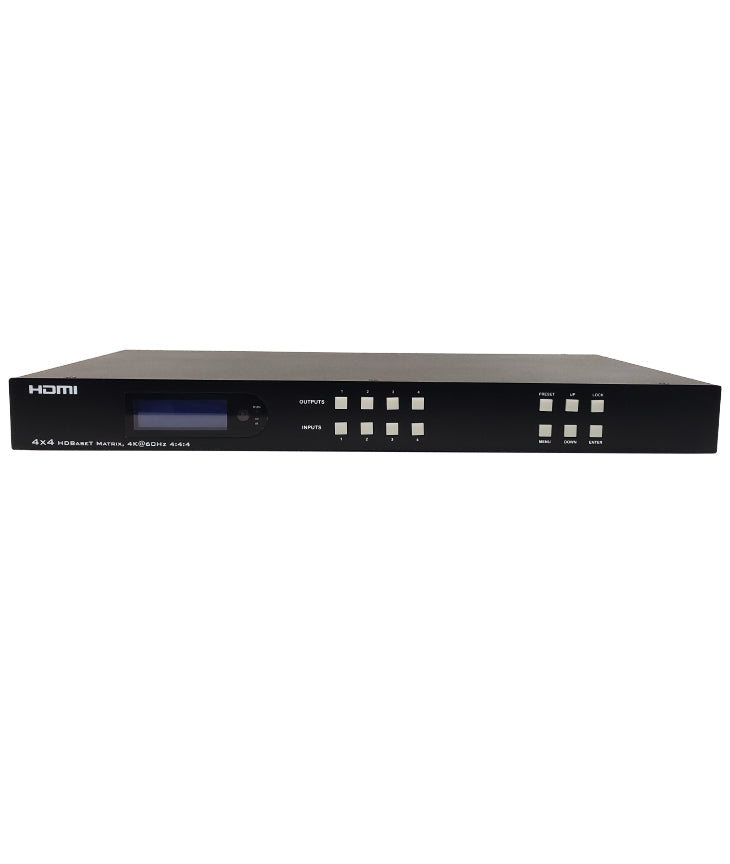

This 4×4 HDBaseT HDMI matrix switch enables you to connect up to four HDMI sources to up to four HDMI displays. It can transmit from 115ft (35m) away at a resolution of 4K@60Hz or 230ft (70m) away at a resolution of 1080P@60Hz. Any one of the four inputs can be displayed on any one of the four outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
Features:
- Incorporate HDBaseT technologies
- 4 x HDMI input and 4 x HDBaseT output with 4 x HDMI Loop out
- HDMI 2.0 version support 4K@60Hz YUV4:4:4, 8bit, 18G, HDR10
- Transmit up to 70m under 1080p, 40m under 4K@60Hz
- HDCP 2.2/1.4 compliant
- With wide-band Bi-Direction IR routed control(38~56KHz)
- Support 4x Analog Audio input
- Support 4x Analog Audio and 4x SPDIF Audio extraction output
- Support Panel Button with LCD, IR Routing, RS232, TCP/IP, PC Tool Control
- Support POC (Receiver powered by HDBaseT Matrix)
- Support Micro USB for FW Updating
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Dimensions | 438mm L x 394mm W x 44mm H (Main Unit) 139.4mm L x 66.8mm W x 20mm H (Main Unit) |
| Rackmountable | Compliant, with 1U rack design |
| Operating Temperature | -5° to 40°C |
| Operating Humidity Range | 5 to 90% RH (no condensation) |
| Storage Temperature | -10° to +60°C |
|
Power
|
|
| Input Voltage | 125 V |
| Power Consumption | 68 watts (Max) – Main Unit 2.5W, 5W – Receiver |
| Power Supply | 24V1A |
|

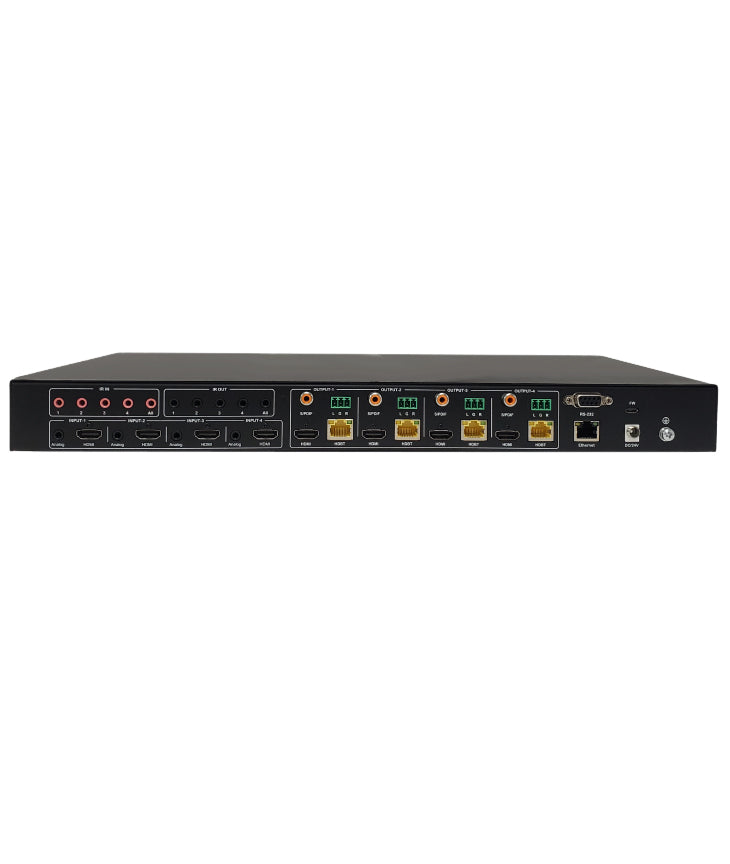

Connector(s)
|
|
| Input | 4 x HDMI Female |
| Output | 4 x HDBaseT (RJ45) Female |
|
Performance
|
|
| Video Resolution (35m) | Maximum 4K*2K@60Hz |
| Video Resolution (70m) | Maximum 1080p@60Hz |
| Video Formats Supported | 4K@60Hz,YUV4:4:4 8bit 4k@30Hz/1080P/1080i/720P/576P/480P/576i/480i |
| Bandwidth | 18Gbit/s |
| Input Video Signal | 0.5-1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Audio | PCM, Dolby5.1, DTS5.1 digital audio |
| HDCP Compliant | HDCP2.2 and HDCP1.4 |
| HDMI Compliant | HDMI2.0 and HDMI 1.4 (over HDBaseT and HDMI) |
| POC | Compliant, Receiver Powered by HDBaseT Matrix |
|
Environmental
|
|
| RoHS | Compliant |
|
Certification(s)
|
|
| CE | Compliant |
| FCC | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 15.42 lbs [6.9kg] |
|
Contents
|
|

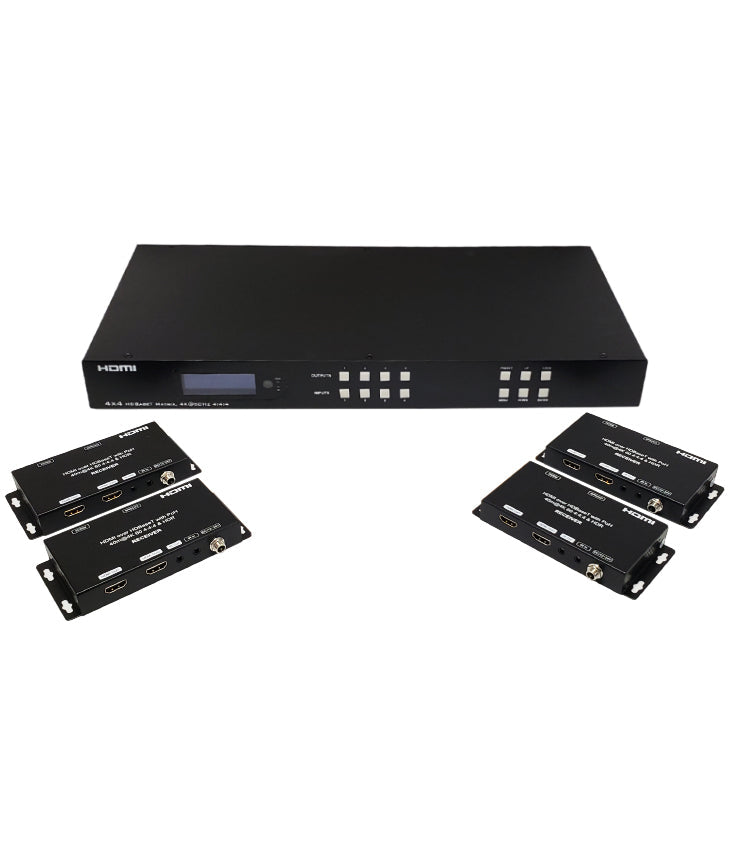

| Included in Package | 1 – HDBaseT HDMI Matrix |

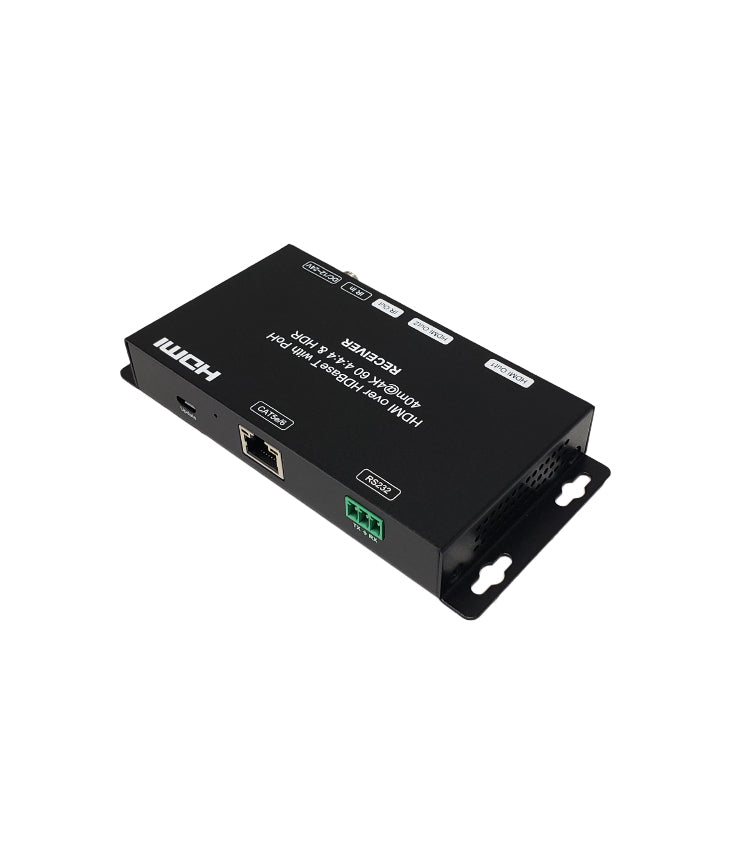

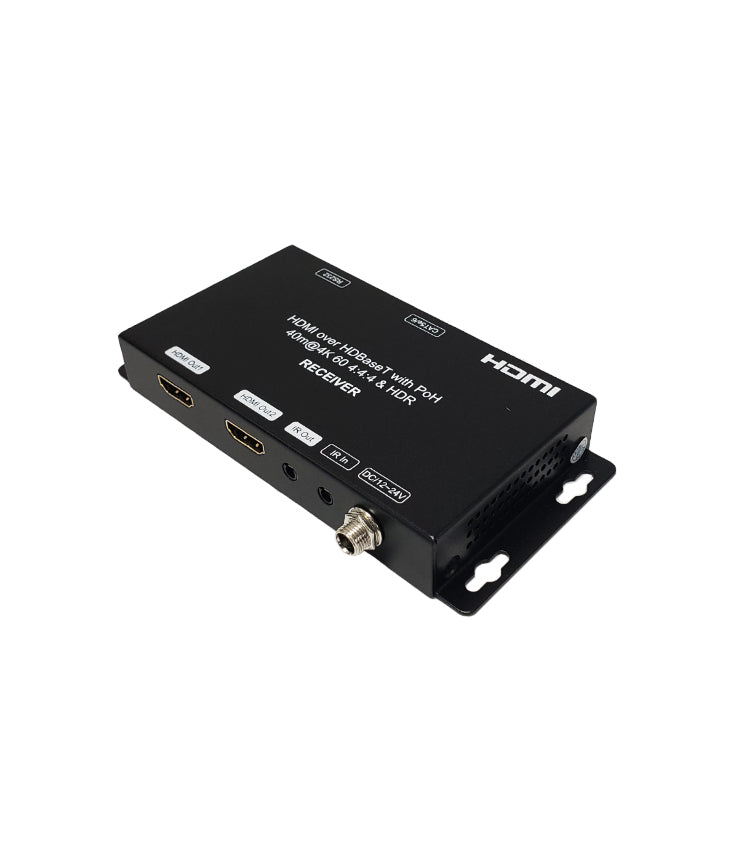

| 4 – Receivers | |
| 9 – IR Tx | |
| 9 – IR Rx | |
| 8 – 3-pin plug for analog audio output | |
| 1 – Remote | |
| 2 – Mounting Ears | |
| 1 – Power Adapter (DC24V4A) | |
| 1 – CD for Software | |
| 1 – User Manual | |
