Description

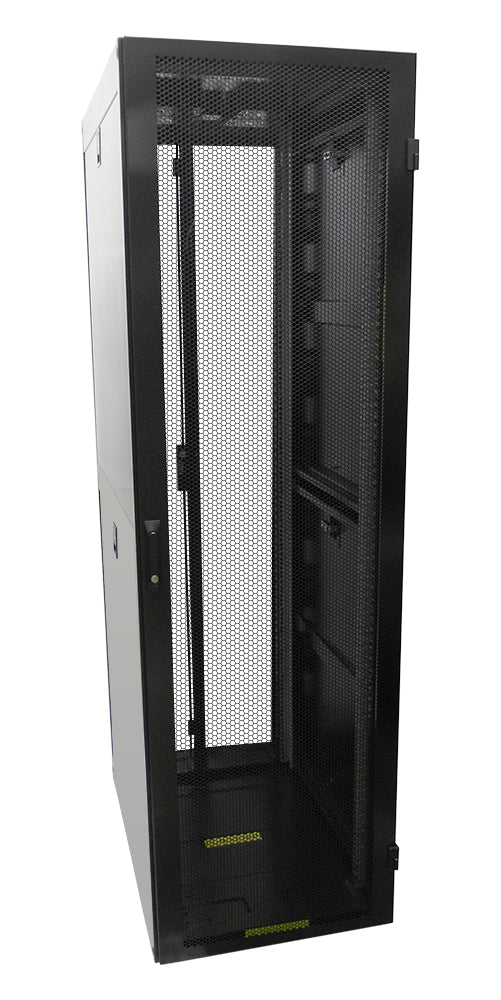

This server cabinet comes fully equipped, ready for equipment to be installed. It comes with perforated front and rear doors, 4-fan top and removable bottom panels for optimal cooling.
| Physical Characteristics | |
|---|---|
| Color | Black – Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Rail Thickness | 2.05mm |

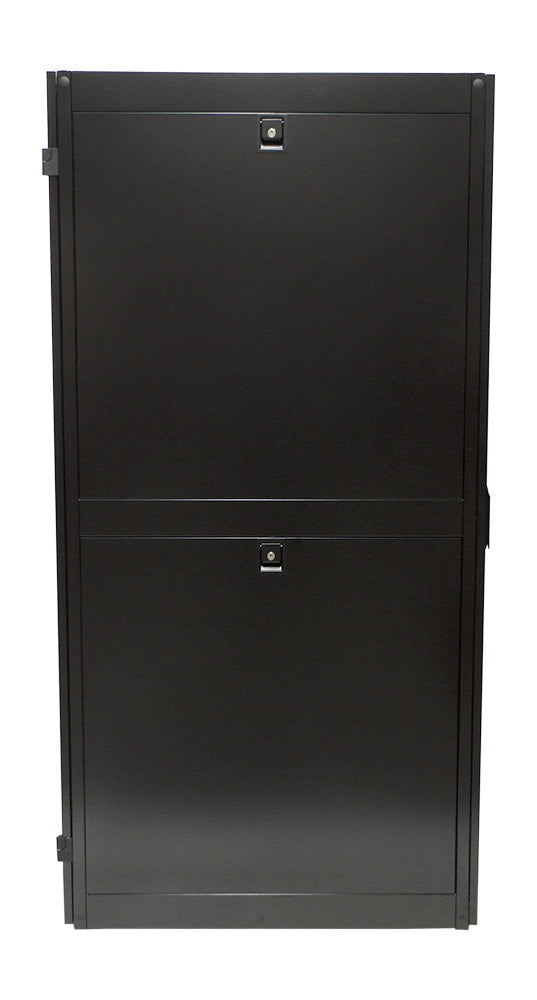

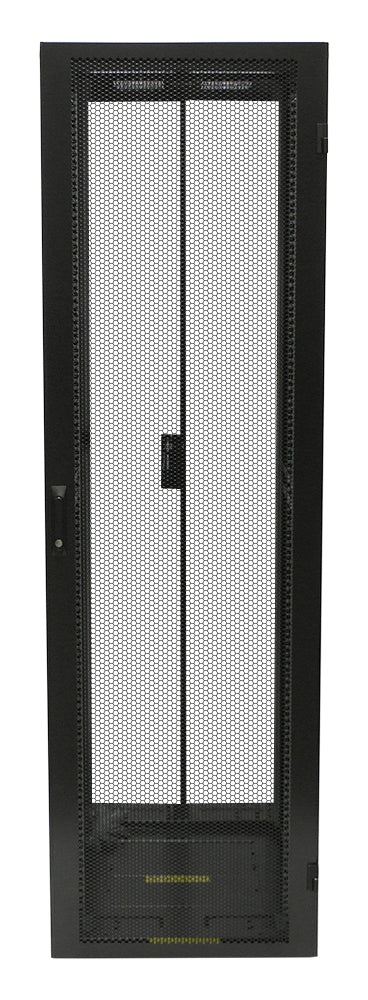

| Doors | Perforated, Removable, Two-Point Locking Front Door |
| Perforated, Removable, Two-Point Locking Split Rear Door | |
| Locking, Removable Side Panels – Side panels can also be secured internally with screws | |
| Casters | Built in Casters |
| Leveling Feet | Adjustable Leveling feet can be Lowered Once Cabinet is in Place |
| Loading Capacity | Maximum 2866 lbs [1300 kg] |
| Cable Entries | Top: Brush Style Entry at Front and Back of Cabinet Top |
| Bottom. Sliding and Adjustable Cable Entries | |

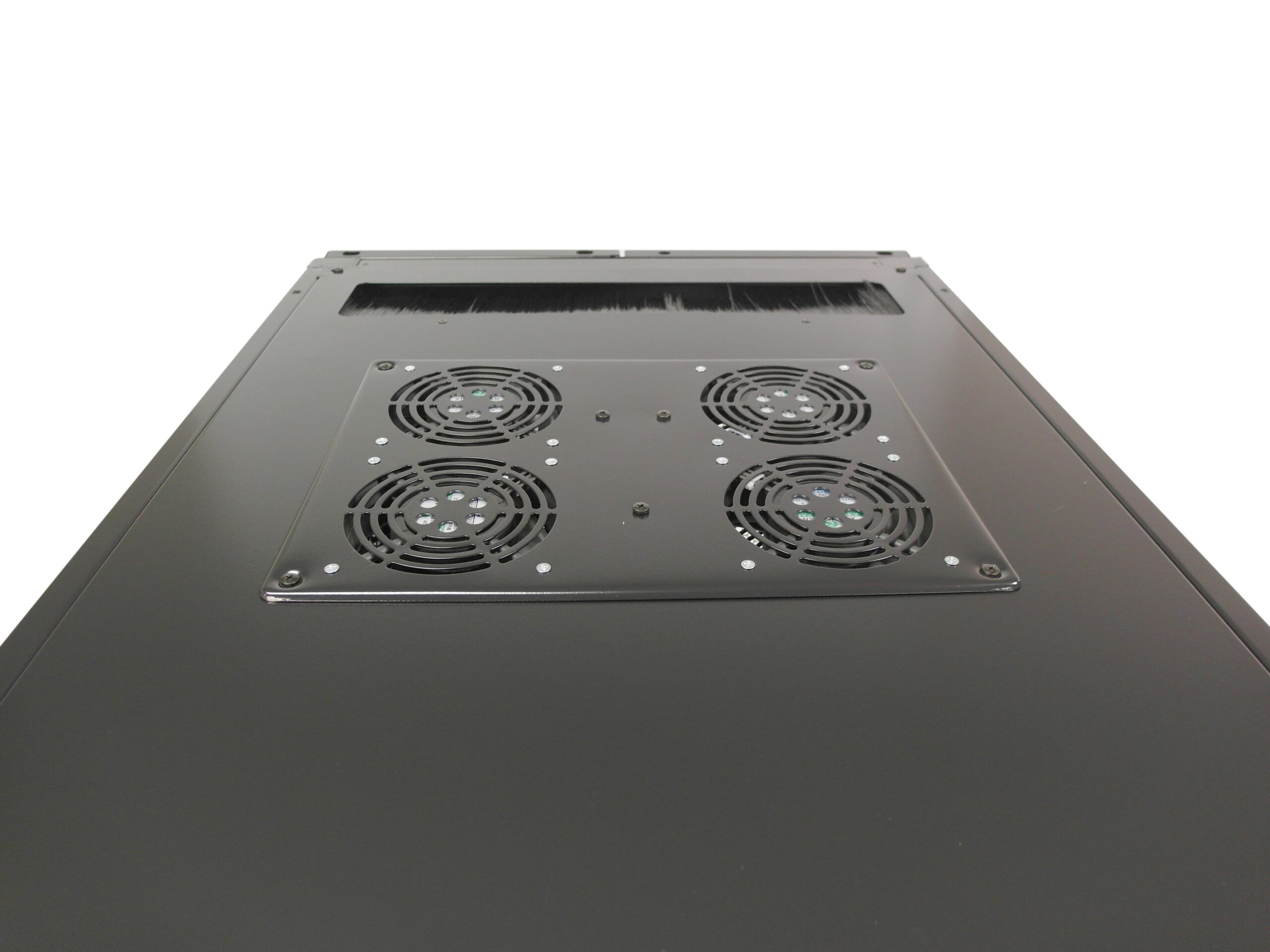

| Fan | 4-Fan Unit Installed on Top of Cabinet, 110V/120V |
| Mounting Rails | Equipped with 2 Pairs of Square Hole Mounting Rails that can Easily be Adjusted |
| Cable Management | Dedicated Vertical Cable Management, Either Front or Back |
| Grounding | Groundings Lugs Located at the Base and Sides of the Cabinet |
| Product Dimensions | 78.6 H, 23.6 W, 43.4 D inches [200 H, 60 W, 110 D cm] |
| Usable Mounting Dimensions | 42U Height x 19″ Wide x 32″ Deep (28″ depth with Cable management installed, 32″ Without) |
| Product Weight | 298 lbs [135kg] |
| Compatibility | |
| RM-1002 | Pair of Rails for 42U Server Cabinet |
| Approvals | |
| ANSI/EIA | Compliant |
| RS-310-D | Compliant |
| IEC60297-2 | Compliant |
| DIN41494 | Compliant |
| PART1 | Compliant |
| PART7 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Contents | |
| 1 – Cabinet Frame – Powder Coated | |
| 1 – Front Door – Powder Coated | |
| 1 – Rear Door – Powder Coated | |
| 4 – Side Panel – Powder Coated | |
| 4 – 19″ Rails – Zinc Plated | |
| 2 – Cable Management Slot – Powder Coated | |
| 2 – Caster Trays – Powder Coated | |
| 4 – 2 inch Heavy Duty Casters – Zinc Plated | |
| 4 – Adjustable Feet – Zinc Plated | |
| 40 Pairs of M6 Screws & Cage Nuts – Zinc Plated | |
| 1 – Fan Unit Power Cable | |
| 4 – Keys | |
Please note this item is considered oversized and cannot be shipped via courier. You will not be able to check-out with this item in your cart unless you select the local pick-up option or the freight collect option and provide us with your trucking company details. Contact us for a shipping quote.
