Description

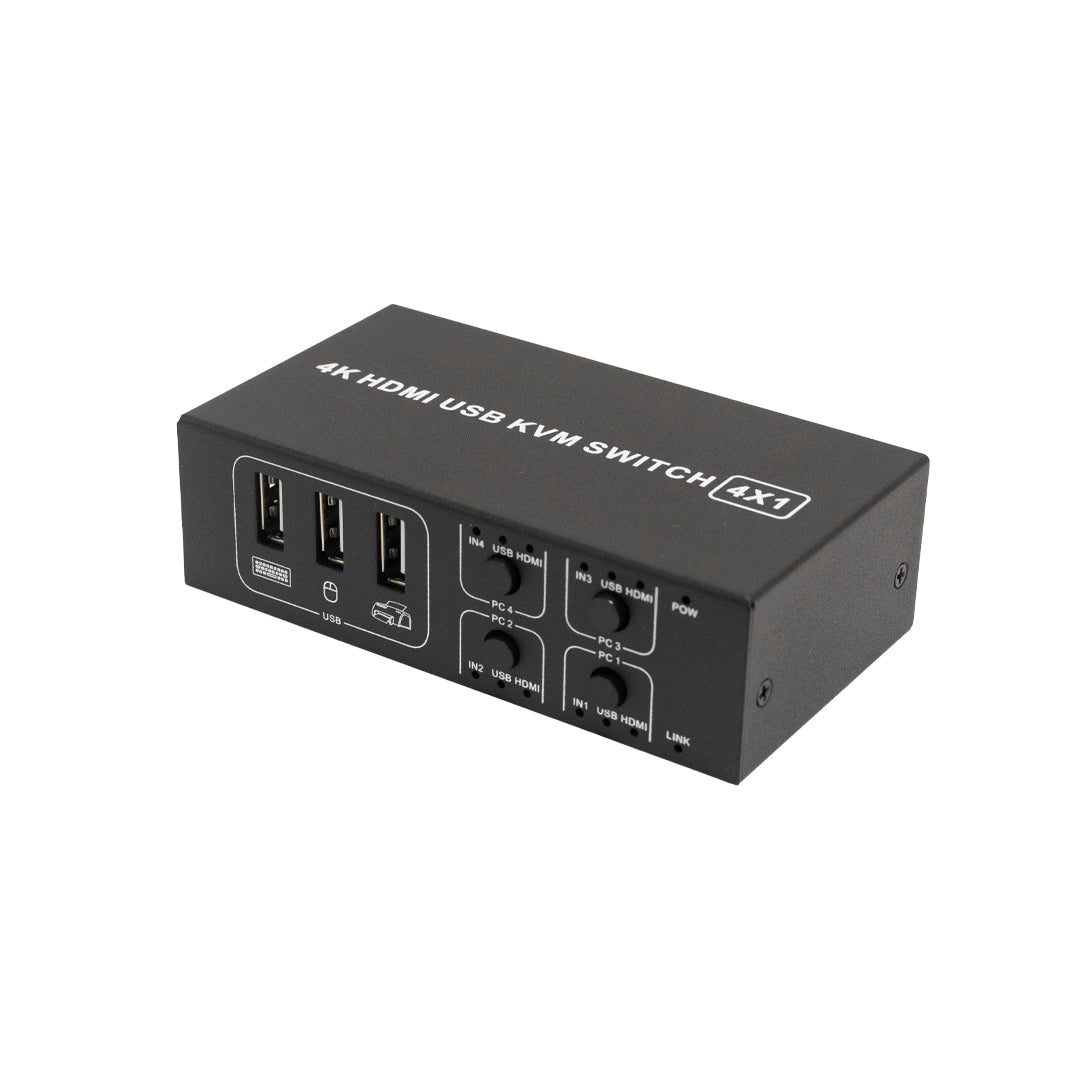

This 4-port HDMI/USB KVM switch enables you to control 4 PCs/consoles with one set of USB keyboard, mouse, and HDMI monitor.
Features:
- The 4 lines of high-definition video source and USB interface implementation free/synchronize switch
- Support video resolution max up to 4K x 2K@60Hz
- Compliance with HDMI 2.0 standard
- Adaptive EDID/HDCP decryption, able to adapt to a variety of complex application environment
- USB devices that can be connected such as: USB keyboard, mouse, printer, camera, etc.
- It can be switched by the button extension module and the host button, which is convenient and quick
- HDCP 2.2 standard – high bandwidth digital content protection technology
- High compatibility, can auto-match source and display device
- Built-in automatic adjustment system, make the image smooth, clear and stable
- Built-in ESD protection system
- Simple to install, plug and play
Application
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Dimensions | 110 x 60 x 33 mm |
| Operating Temperature | -5 to +70℃ |
| Humidity | 5% ~ 90% |
| Power Supply | Input: 100-240V ~ 50/60Hz 0.6A Output: 5.0V ~ 2.0A 10.0W |
| Power Consumption | 2W (Max) |
| Connector(s) | |

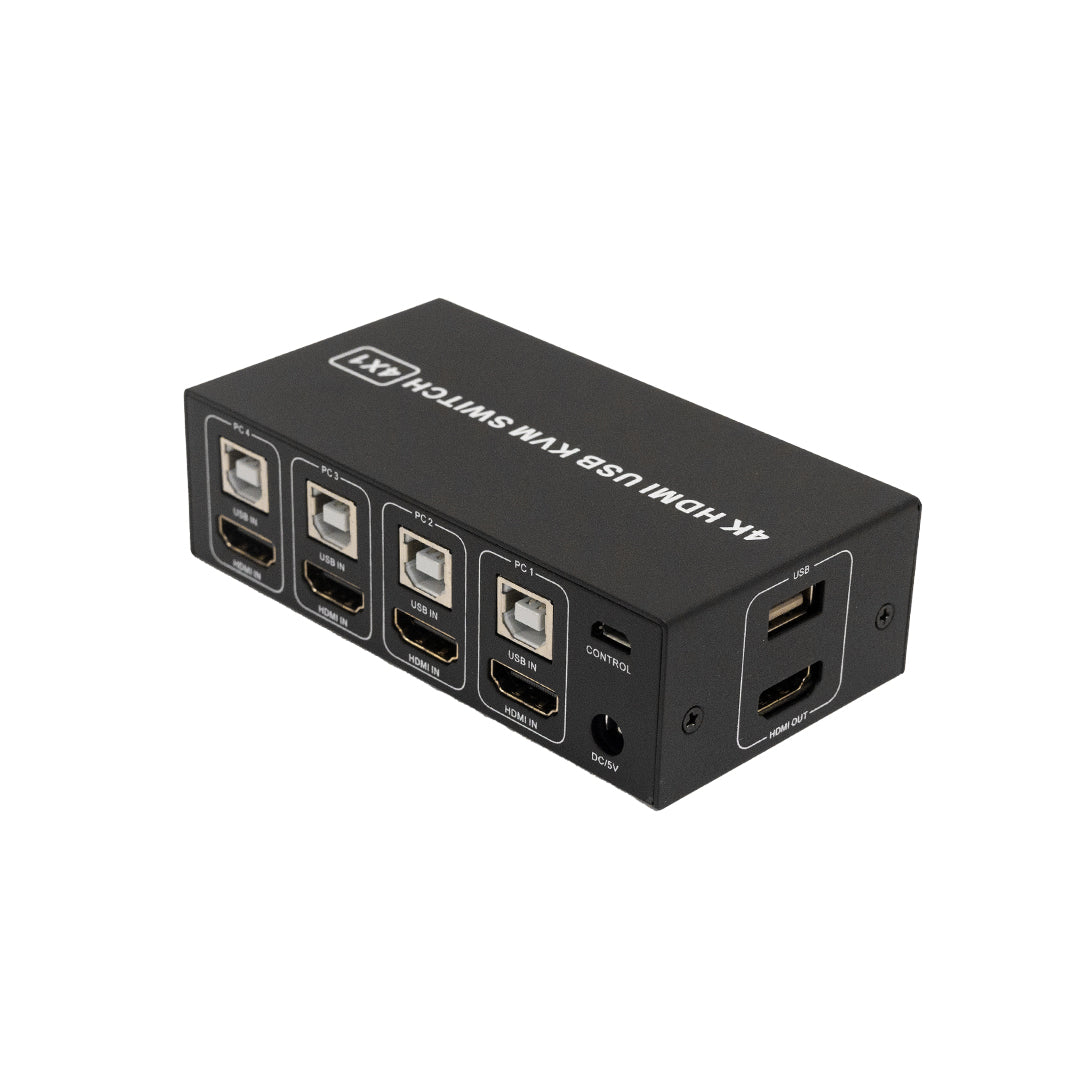

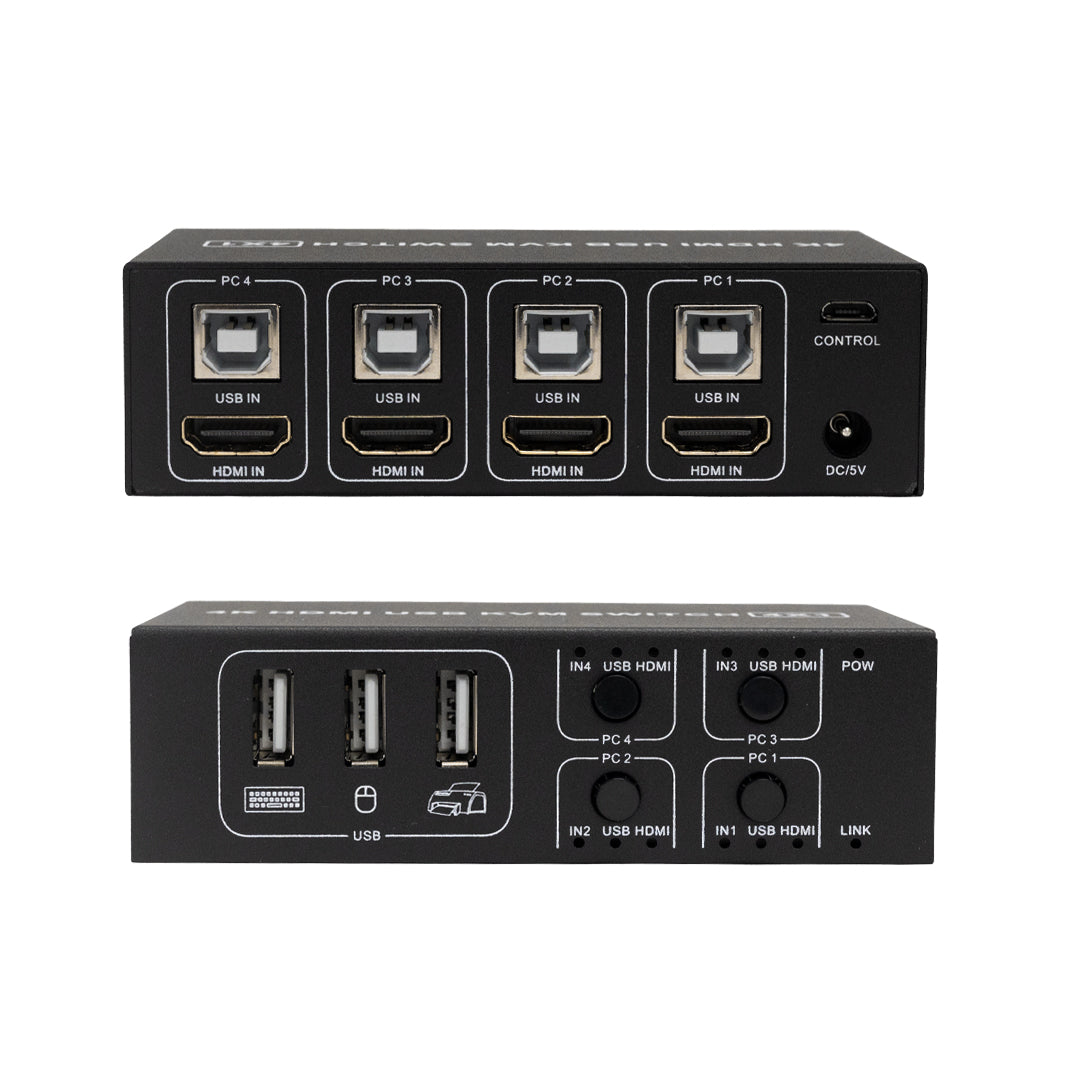

| KVM Port | 4 – USB B-Type 4 – HDMI Input 1 – USB Micro (Control) |
| Console Port | 3 – USB A-Type |

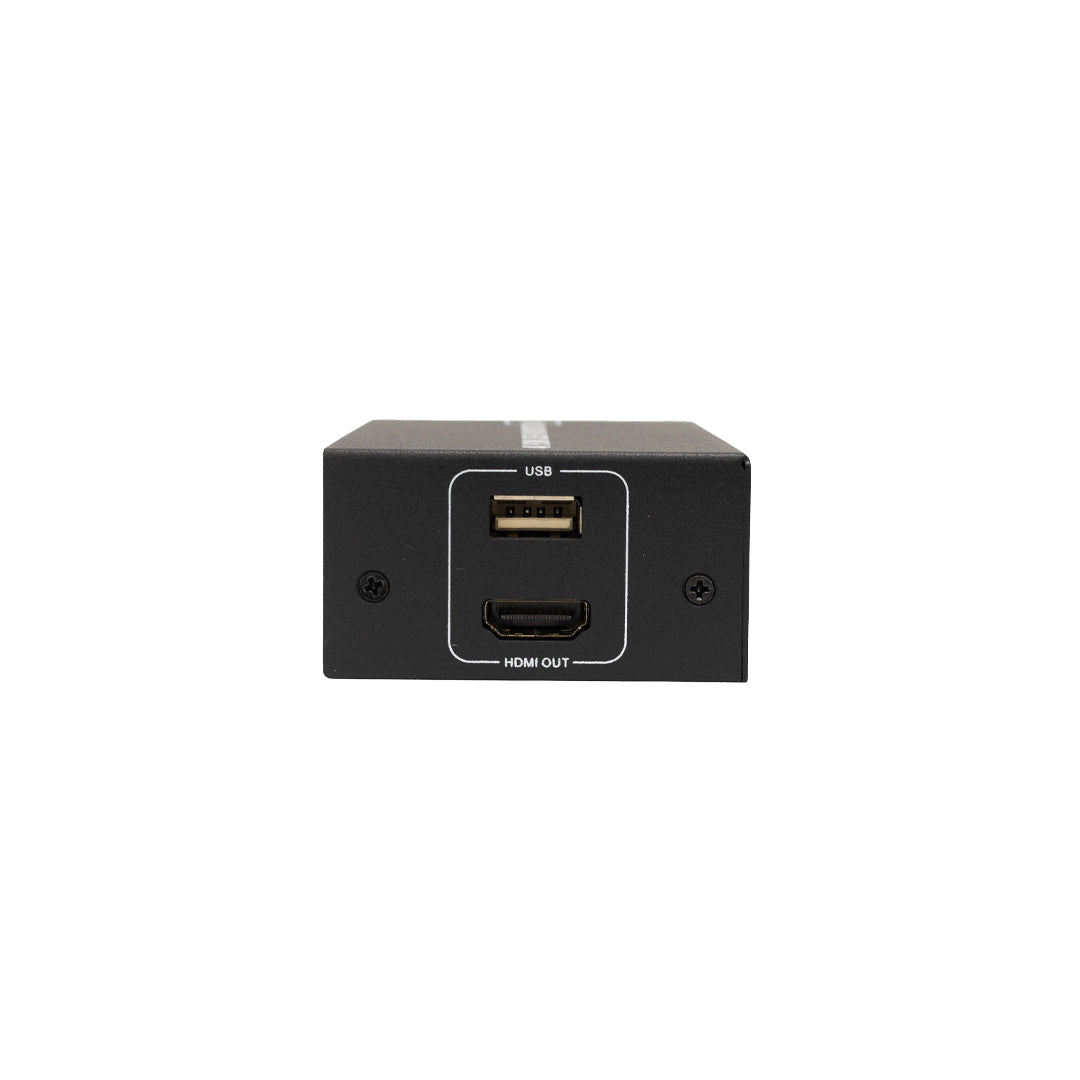

| Side Port | 1 – HDMI Output 1 – USB A-Type |
| Performance | |
| Video Resolution | Up to 4Kx2K@60Hz, 3D, 3840×2160@60Hz |
| Standards | HDMI 2.0 HDCP 2.2 |
| Maximum Pixel Clock | 600MHz |
| Maximum Data Rate | 18Gbps |
| Impendence | 100 Ohms |
| HDMI Cable Range | <5M (Resolution: 1920×1080@60Hz) AWG26 <3M (Resolution: 3840×2160@60Hz) AWG26 |
| Interface Protocol | USB 2.0 |
| PC Input Interface Type | USB B-Type |
| Output Interface Type | USB A-Type |
| Approvals | |
| Power Adapter | c(UL)us, FCC |
| Environmental/Approval | |
| FCC, CE | Compliant |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Weight | 1.50 lbs |
| Package Dimensions | 235 x 175 x 57 mm |
| Contents | |
| Included in Package | 1 – HDMI KVM 4×1 Switcher Host |
| 1 – DC 5V Power Adapter | |
| 4 – USB B-Type Cables | |
| 1 – Micro USB Cable | |
| 1 – Key Extension Module | |
| 1 – User Manual | |
