Description

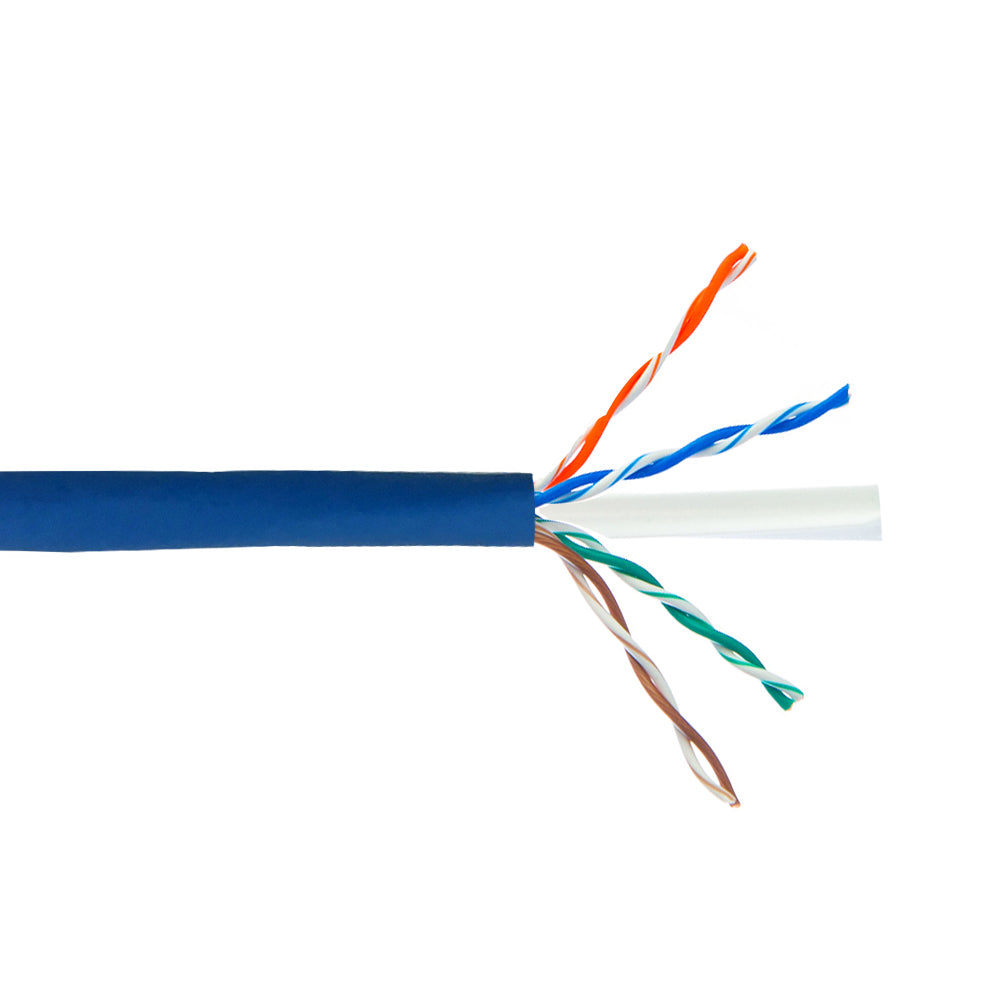

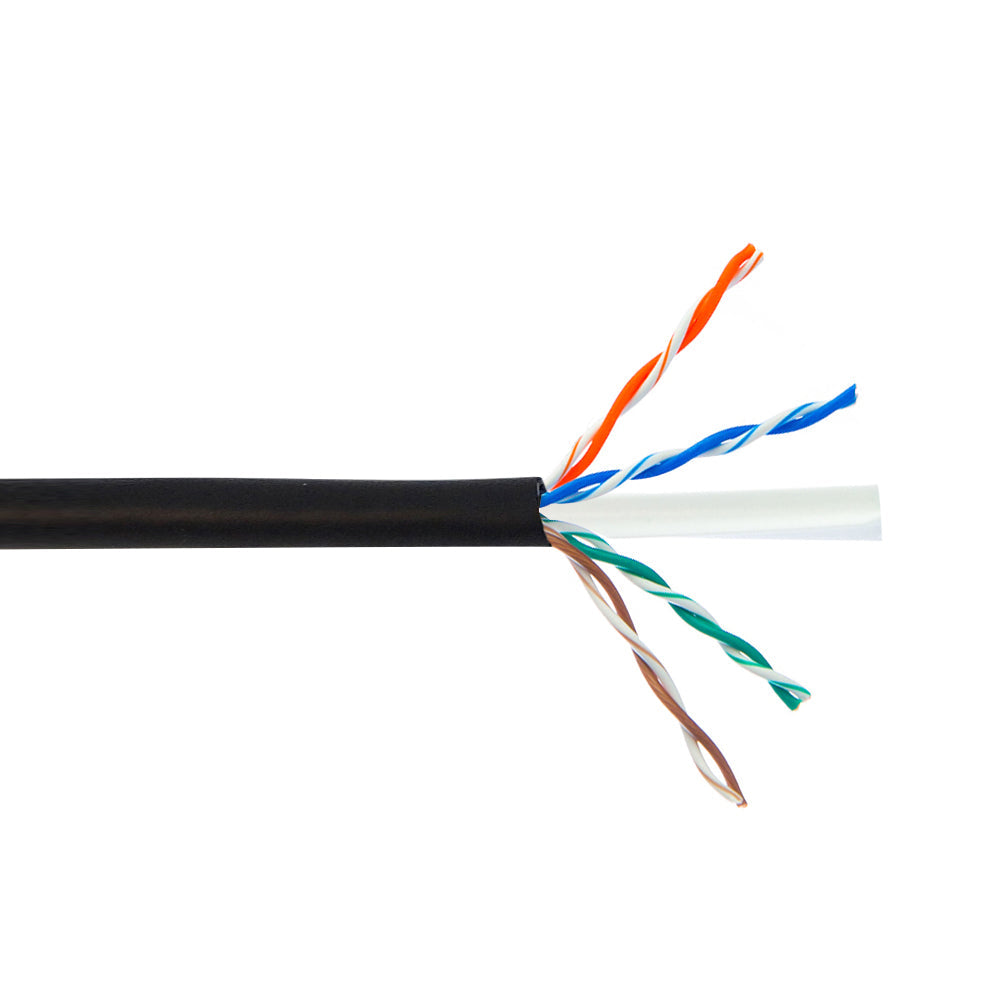

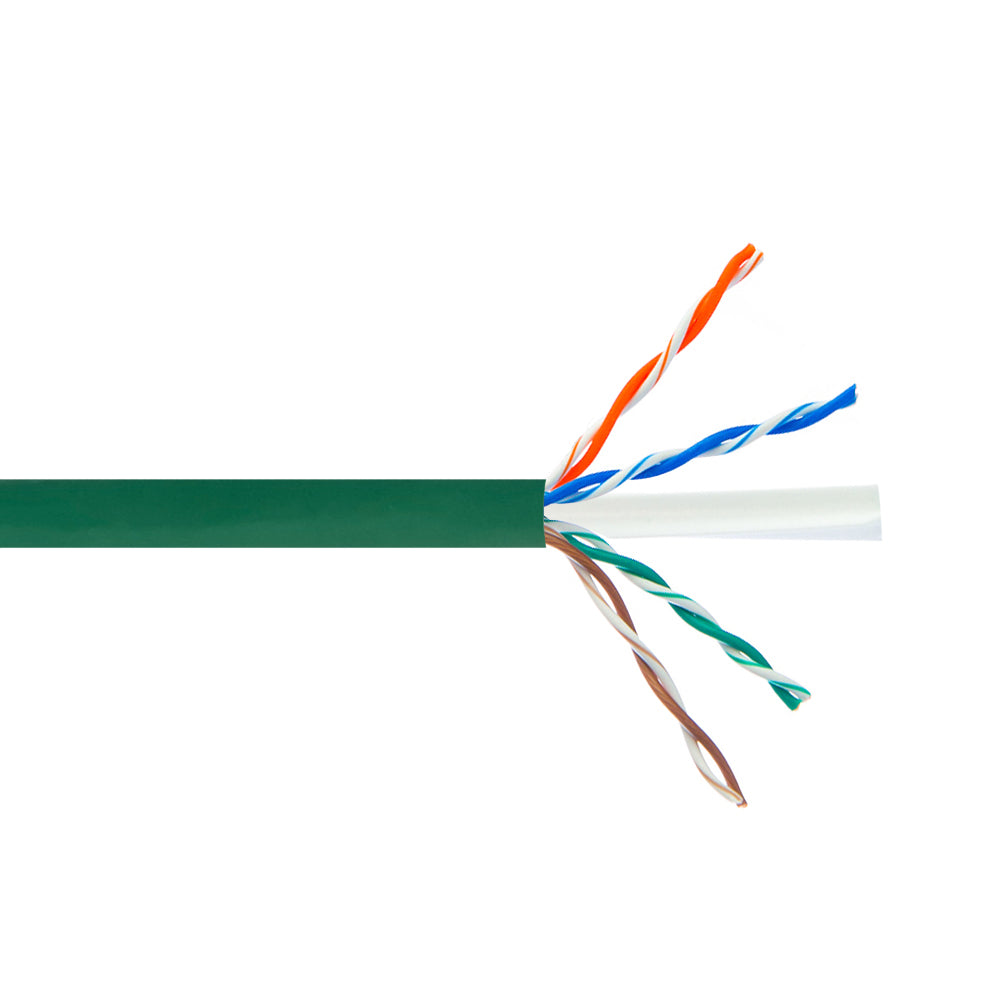

This bulk CAT6 riser rated cable consists of 4 pairs of 23AWG solid bare copper wires. It is designed for use in data networking, PoE, security networking and voice applications. The cable is riser (CMR) c(ETL)us listed, RoHS Compliant and meets and/or exceeds CAT6 ANSI/TIA-568.C.2 standards. It is typically used in riser environments as premise wiring and terminated from a patch panel to a Cat6 jack.
|
Physical Characteristics
|
||||
|---|---|---|---|---|
| Color | Black/Blue/Green/Grey/Orange/Purple/Red/White/Yellow | |||
| Cable Diameter | 6.20 mm | |||
| Number of Pairs | 4 Pairs | |||
| Wire Gauge | 23AWG Solid | |||
| Conductor Material | 100% Bare Copper – Oxygen-Free | |||
| Jacket Material | PVC – Polyvinyl Chloride | |||
| Bend Radius | 24mm | |||
| Jacket Rating | CMR [Riser Rated] | |||
| Cable Shielding | None | |||
| Temperature Rating | -20℃ ~ +75℃ | |||
| Voltage Rating | 300V | |||
| Minimum bend radius for static installation | 4 * 6mm ≥ 24 mm | |||
|
Performance
|
||||
| Fluke® CAT6 Channel Test | Compliant | |||
| Fluke® CAT6 Permalink Test | Compliant | |||
| Fluke® CAT6 Patch Cable Test | Compliant | |||
| Frequency | 550 MHz | |||
| PoE Compliance | ||||
| PoE / IEEE 802.3af Type 1 | 15.4W (37-57V) | |||
| PoE+ / IEEE 802.3at Type 2 | 30W (42.5-57V) | |||
| PoE++ / IEEE 802.3bt Type 3 | 60W (42.5-57V) | |||
| 4PPoE / IEEE 802.3bt Type 4 | 100W (41.1-57V) | |||
| Approvals | ||||
| c(ETL)us | Compliant | |||
| ISO/IEC 9001 | Compliant | |||
| ANSI/TIA-568.C.2 | Compliant | |||
| NEC Compliance | Article 800 CMR | |||
| Flammability Standard Compliance |
Communications Cables (R2021) [CSA C22.2#214:2017 Ed.8+U1;U2] Communications Cables [UL 444:2017 Ed.5+R:16Jun2021] |
|||
| TIA/EIA Compliance |
ANSI/TIA 568.C.2 ANSI/TIA 568.D |
|||
| ISO/IEC Compliance | ISO/IEC 11801-1 IEC61156-5 | |||
| Environmental | ||||
| RoHS | Compliant | |||
| Conflict Minerals Compliant | Compliant | |||
| Warranty Information | ||||
| Warranty | 25 year | |||

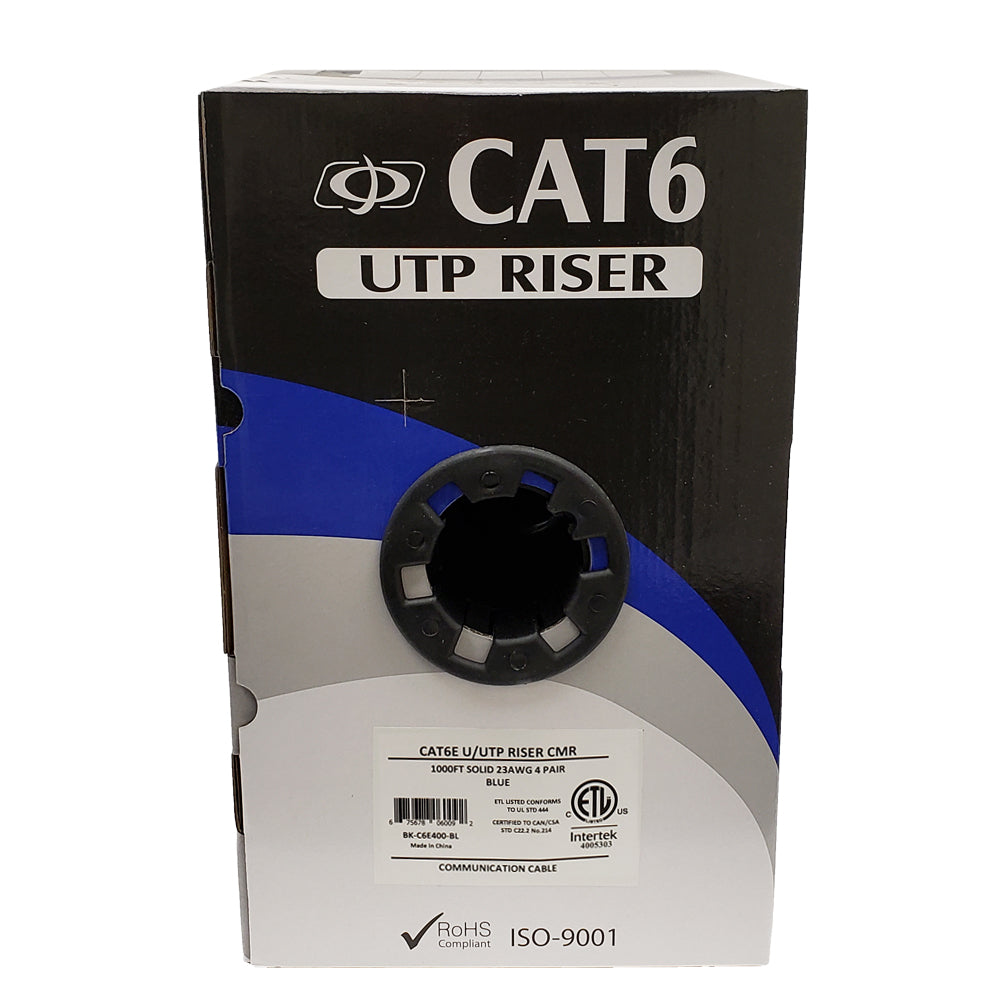

| Packaging Information | ||||
| Package Quantity | 1 | |||
|
Cable Length Product Weight |
1000ft [305m] 33.5 lbs [15.2kg] |
200ft [61m] 5.63 lbs [2.55kg] |
100ft [30.4m] 2.82 lbs [1.28kg] |
50ft [15.2m] 1.41 lbs [0.64kg] |
