Description

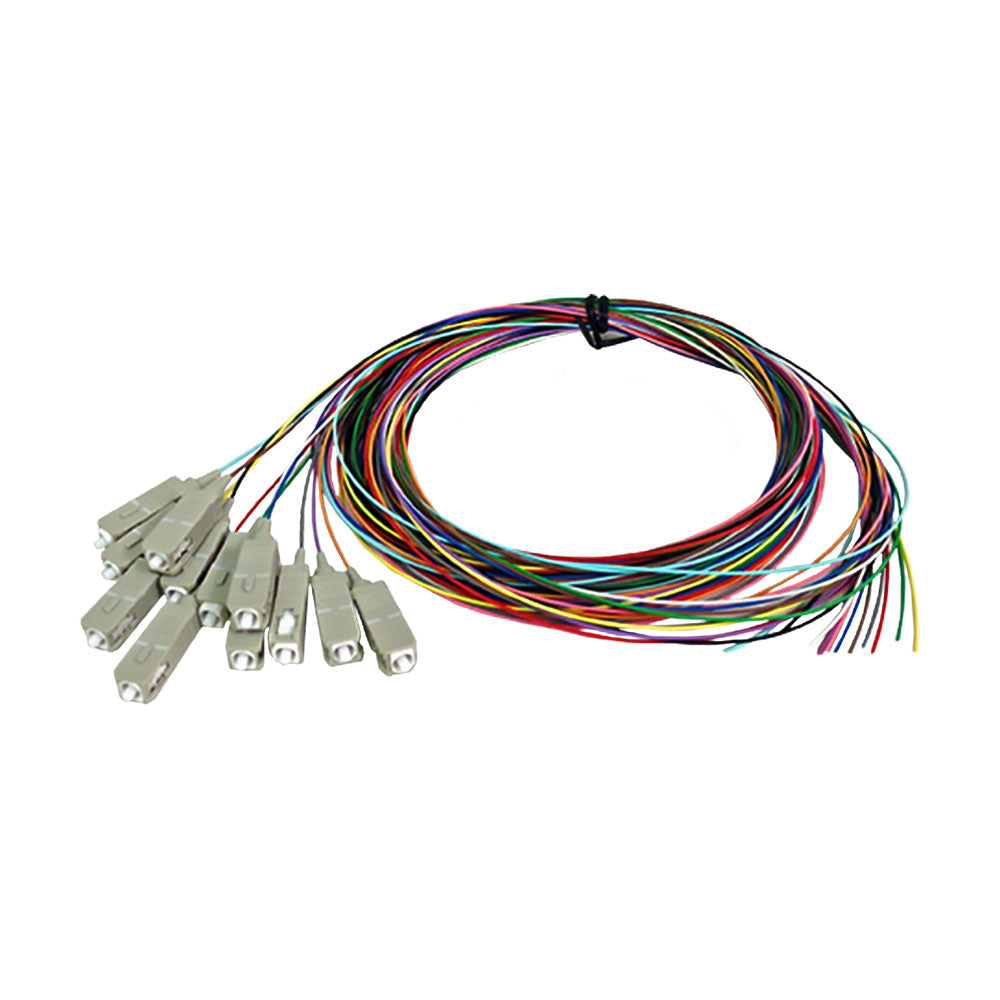

These 50 micron (OM3) fiber optic pigtails have terminated SC fiber optic connectors on one side and are un-terminated on the other side. The un-terminated ends are meant to be stripped and fusion spliced to single fibers of a multi-strand fiber trunk cable.
|
Physical Characteristics
|
|
|---|---|
| Cable Length | 3m [9.84 foot] |
| Color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Cable Diameter | 900 micron |
| Fiber Size | 50/125 micron |
| Fiber Type | Multimode |
| Glass Manufacturer | Corning Glass |
| Connector Ferrules | Ceramic |
| Fiber Classification | OM3 |
| Jacket Rating | Low Smoke Zero Halogen (LSZH) |
|
Connector(s)
|
|
| Connector A | 1 – SC/PC Simplex Male |
| Connector B | Un-Terminated |
|
Performance
|
|
| Insertion Loss | ¹0.3db @ 1300nm |
| Speed | 10 Gbps |
|
Environmental
|
|
| RoHS | Compliant |
| Conflict Minerals | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 Pack of 12 Cables |
| Product Weight | 0.20 lbs [0.09kg] |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
Reviews
There are no reviews yet.
