Description

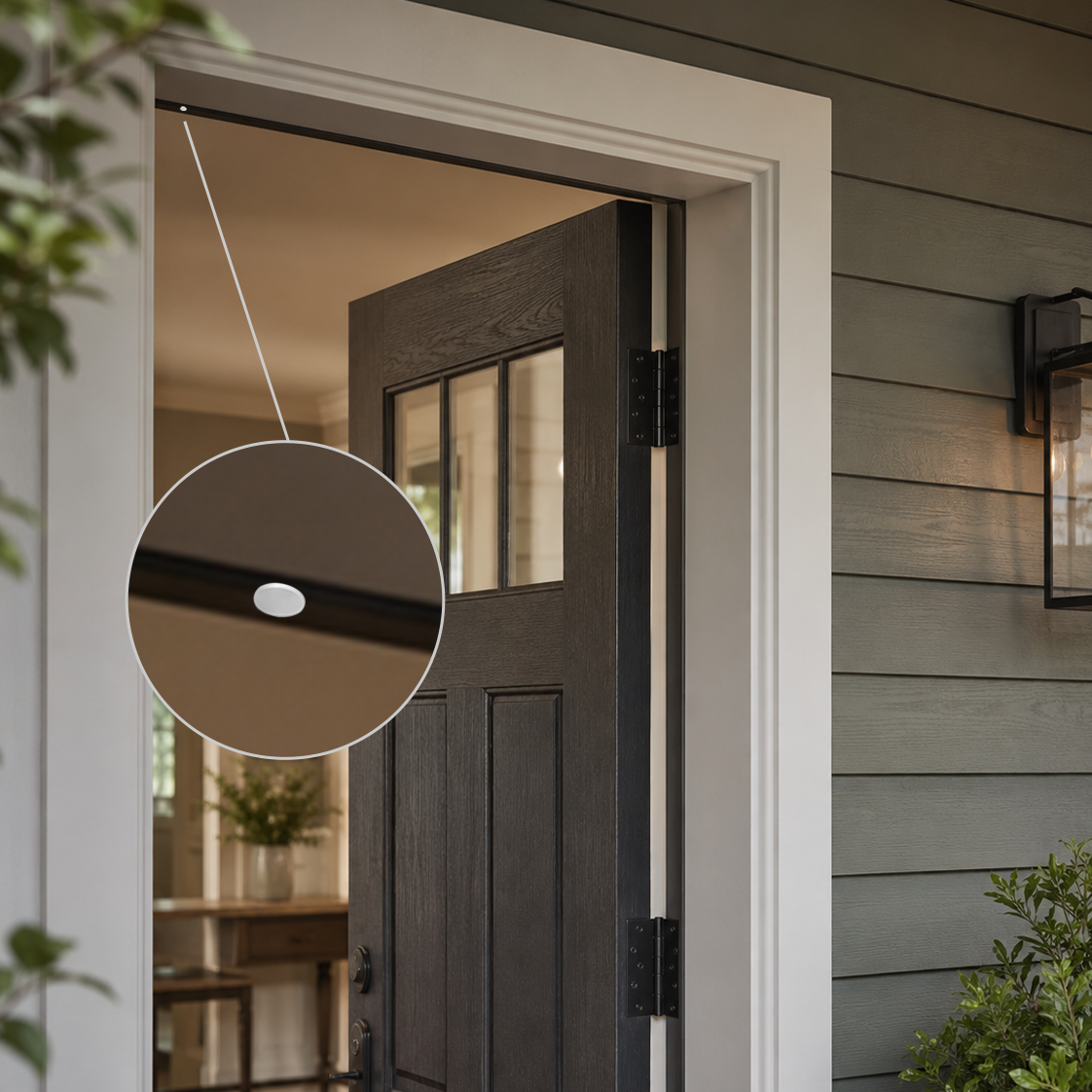

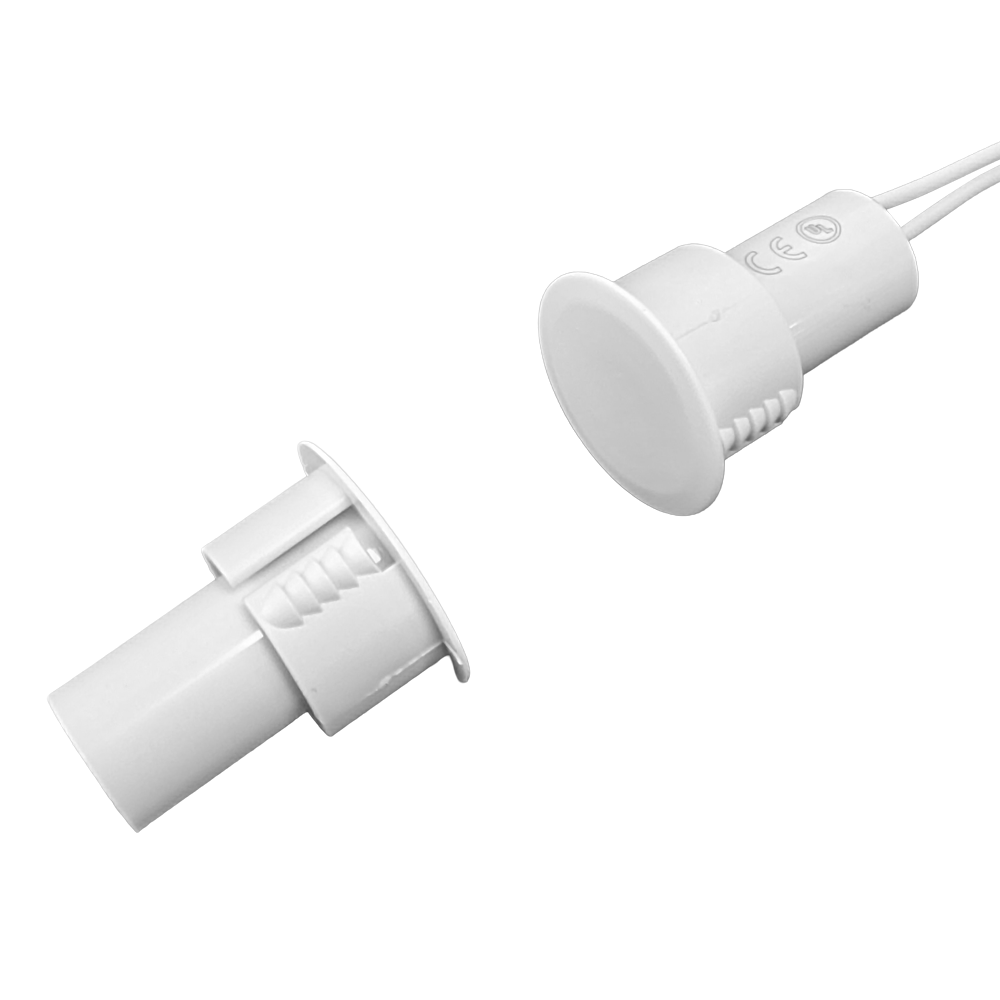

This recessed mounted contact sensor is a hardwired security solution designed to provide discreet and reliable protection for residential or commercial space. It embeds directly into doors or windows, which offers a clean install with hidden profile that won’t disrupt your interior decor while preventing sensor tampering.
This sensor operates on a Normally Open (N/O) reed switch configuration for a standard closed-loop security system, meaning the circuit remains closed when the door or window is shut, triggering an alarm instantly if the connection is broken.
Features:
- 3/4 inch diameter press-to-fit design
- Suitable for steel door install
- Self-locking
- Magnetic contact switch easy to install in tight spaces
- Closed Gap, 3/4″ (19mm)
- Departure Gap, 0.95″ (24mm)
- UL Approved
| Physical Characteristics | |
|---|---|
| Color | White |

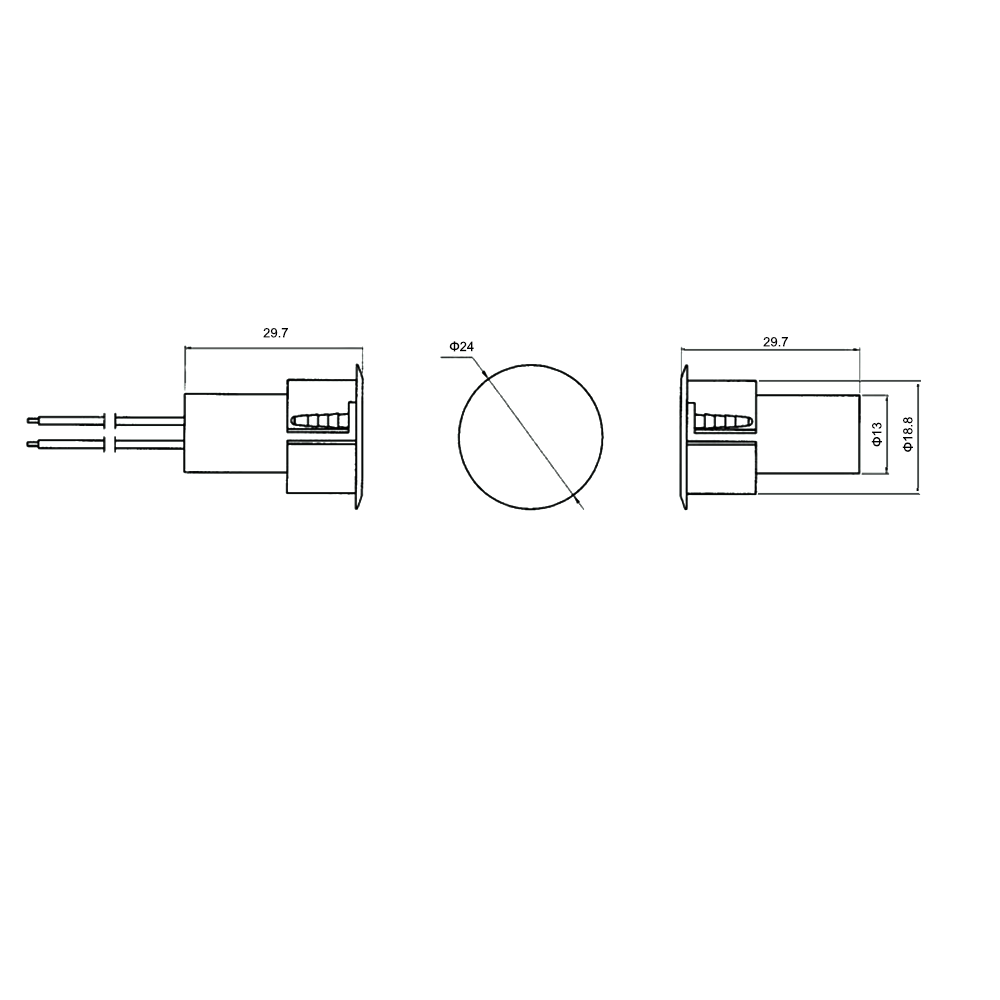

| Dimensions | 29.7 x 24mm |
| Loop Type | Closed |
| Reed Form | N/O (Normally Open) |
| Closed Gap | 3/4″ (19mm) |
| Departure Gap | 0.95″ (24mm) |
| Lead | 18″ 22AWG stranded |
| Maximum Initial Contact Resistance | 0.150 Ohm |
| Maximum Contact Rating | 7.5W |
| Maximum Switching Voltage | 100 VDC/VAC |
| Maximum Switching Current | 0.4A |
| Wire Range | #20~#24AWG |
| Approvals | |
| c(UL)us | Compliant |
| Environmental | |
| RoHS | Compliant |
| CE | Compliant |
| Packaging Information | |

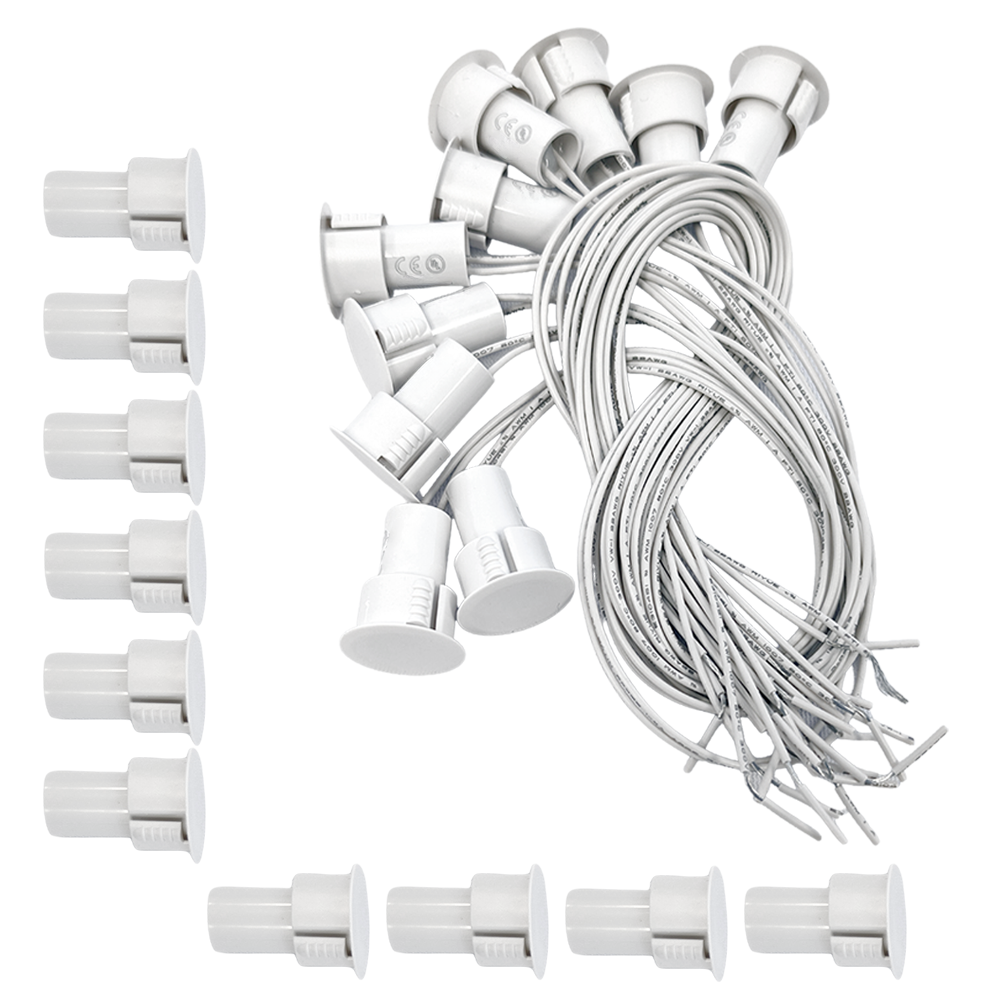

| Package Quantity | 10x Contacts with leads 10x Magnets |
| Product Weight | 0.50 lbs |
