Description
Overview

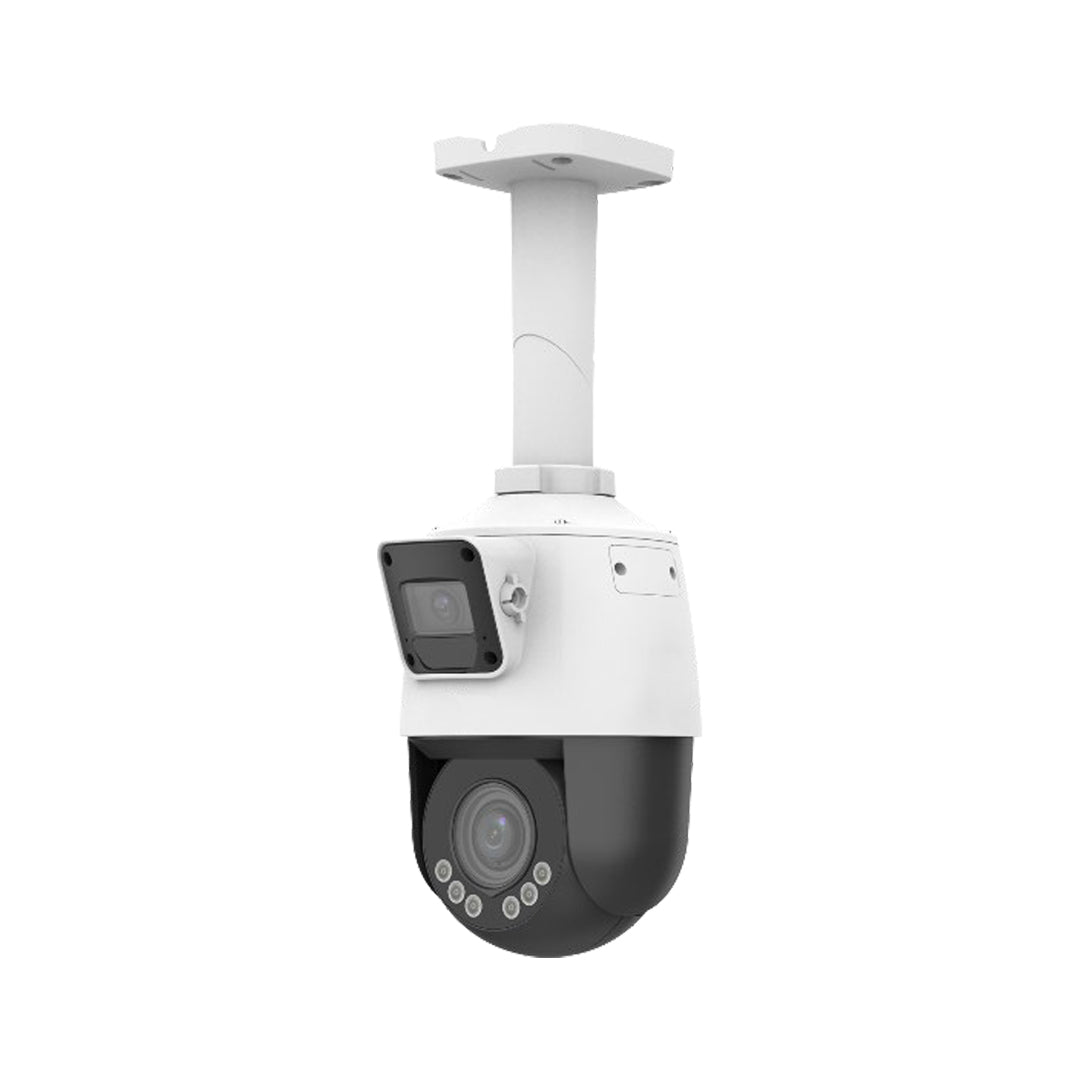

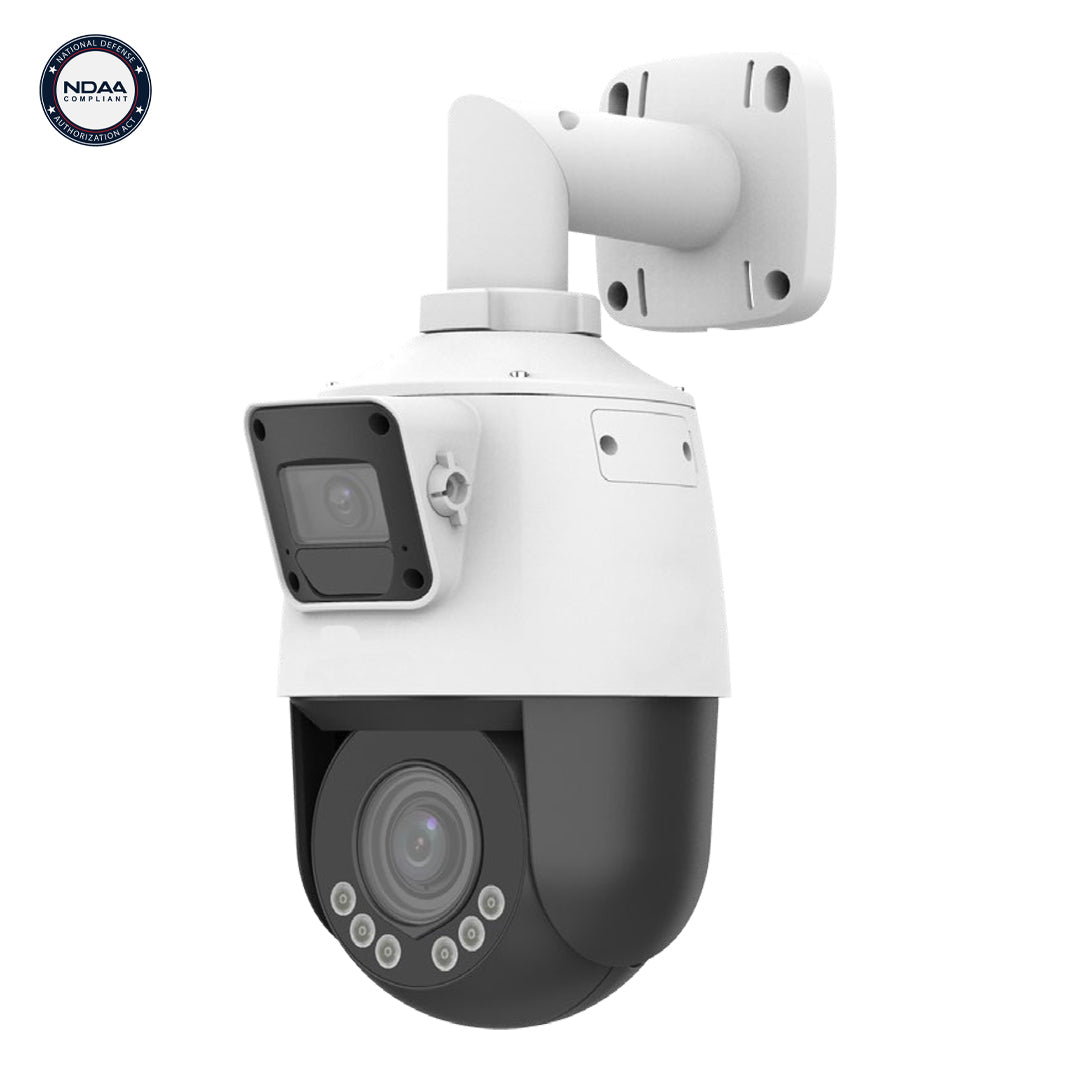

This pendant 2MP PTZ indoor IP camera provides sharp, high definition images in daylight or night time settings. This dual-lens camera has a 2.8mm fixed panorama lens and 2.8mm to 12mm varifocal lens with 4x optical zoom which delivers 104.1 ° to 30.6 ° horizontal field of view for detail lens. Its maximum resolution is 1920×1080 at 25 fps and supports Ultra 265 video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. It has 98 feet of IR range using an IR cut filter and IR LEDs.
Note: This camera will utilize 2 channels on the NVR.
 |
Features
|
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Standalone Camera Setup
Specifications
|
Camera
|
|
|---|---|
| Image Sensor | 1/2.8″ (2 MP) CMOS |
| Minimum Illumination | Color: 0.002 lux @ (F1.6, AGC on) 0 Lux with IR/Warm light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| S/N | >52dB |
| WDR | 120dB |
|
Lens
|
|
| Lens Type |
Panorama – [email protected] Detail – [email protected], AF automatic focusing and motorized zoom lens |
| Optical Zoom | 4x |
| Iris | Fixed Aperture |
| Angle of View (H) |
Panorama – 102.4° Detail – 106.6°~30.6° |
| Angle of View (V) |
Panorama – 54.9° Detail – 56.5° ~ 17.4° |
| Angle of View (O) |
Panorama – 133.1° Detail – 138.6° ~ 37.6° |
|
DORI
|
|
| DORI Distance |
Panorama – 2.8mm Lens, 43.4m(142.5ft) Detect, 17.4m(57.0ft) Observe, 8.7m(28.5ft) Recognize, 4.3m(14.3ft) Identify Detail – 2.8mm Lens, 43.4m(142.5ft) Detect, 17.4m(57.0ft) Observe, 8.7m(28.5ft) Recognize, 4.3m(14.3ft) Identify Detail – 12mm Lens, 162.9m(534.6ft) Detect, 65.2m(213.8ft) Observe, 32.6m(106.9ft) Recognize, 16.3m(53.5ft) Identify |
|
Illuminator
|
|
| IR Range |
Panorama – Up to 10m (32.8 ft) Detail – Up to 50m (164ft) |
| Warm Light Range | Detail – Up to 10m (33ft) |
| Wavelength | 850nm (IR) |
| IR On/Off Control | Auto/Manual |
|
Video
|
|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate |
Main Stream: 1080P (1920*1080),Max 25fps Sub Stream: 720P (1280*720), Max 25fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support (Main stream) |
| ROI | Up to 8 areas |
| OSD | Up to 4 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Video Stream | Dual streams |
|
|
|
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Flip Vertical/Flip Horizontal/180° |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
|
Events
|
|
| Basic Detection | Motion detection, Audio detection |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
|
Audio
|
|
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-Way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHz |
|
Storage
|
|
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR |
|
Network
|
|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user |
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | Phantom CamStation Phantom CamView |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
|
Pan & Tilt
|
|
| Pan Range | Detail – 0° ~ 345° |
| Pan Speed | Details – 0.1°/s ~ 40°/s Preset speed: 40°/s |
| Tilt Range |
Panorama – 18° ± 5° Detail – 10° ~ 110° |
| Tilt Speed | Detail – 0.1° ~ 50°/s Preset speed: 50°/s |
| Number of Presets | 256 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 1000s~1800s |
| Preset Image Freeze | N/A |
| Home Position | Supported |
|
Interface
|
|
| Built-In Mic | Support (Mic*2) |
| Built-In Speaker | Supported |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
|
Certification
|
|
| EMC |
CE-EMC FCC |
| Safety |
CE LVD CB UL |
| NDAA Compliant | Yes |
| Environment | CE-ROHS |
| Protection | IP66 |
|
General
|
|
| Power |
DC12V, PoE (IEEE 802.3af, Mode B – Pins 4, 5, 7 and 8) Power consumption: MAX 16W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) |
Wall Mount: Φ134 x 192 x 302mm (Φ5.3” x 7.6” x 11.9”) Ceiling Mount: Φ134 x 154 x 363mm (Φ5.3” x 6.1” x 14.3”) |
| Weight | 1.03kg (2.27lb) |
| Working Environment/Storage Environment |
-20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)
-30°C ~ 70°C (-40°F to 158°F), Humidity:≤95% RH(non-condensing) |
| Surge Protection | 2KV |
| Reset Button | Supported |
