Description

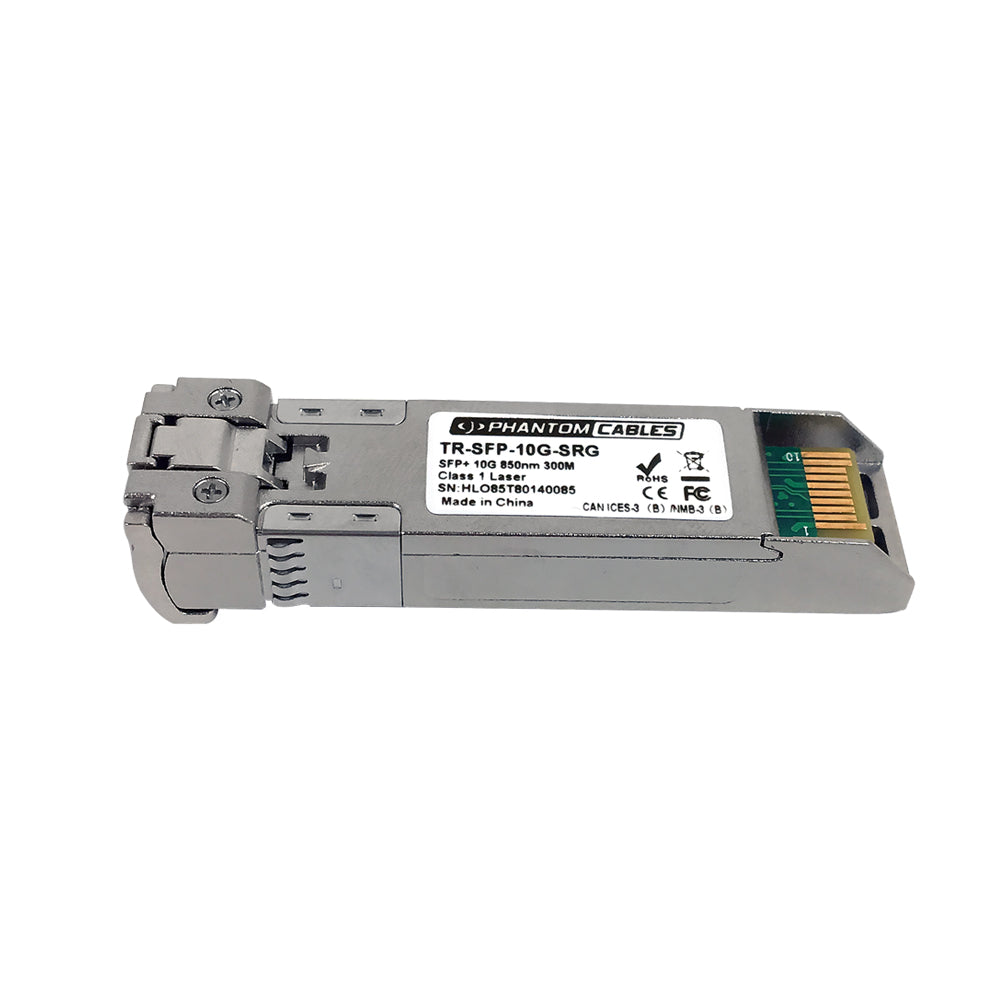

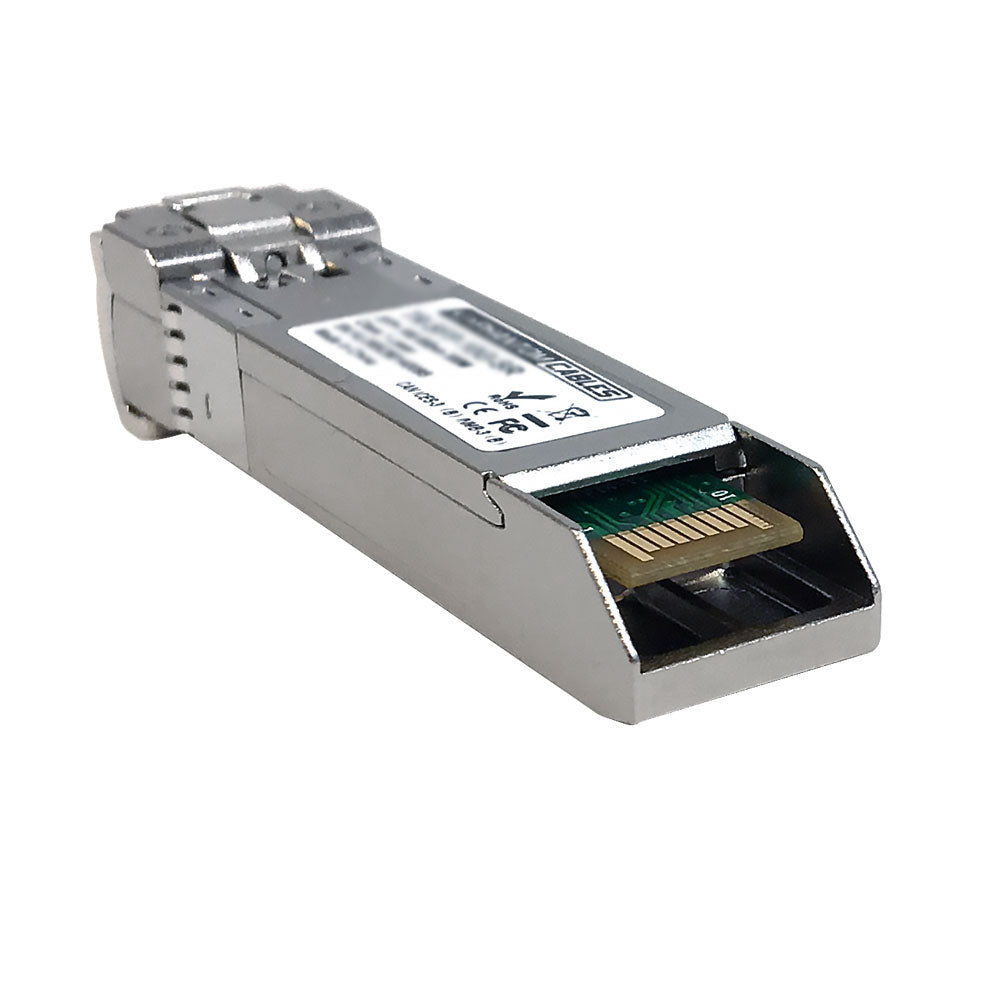

This is an Enhanced Small Form-factor Pluggable (SFP+) transceiver module with maximum data transfer rate of 10 Gbps up to 300m over multimode fiber cable. It is used in compatible network devices with an SFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
SFP+ / QSFP+ Generic Transceivers Compatible Switches
Avaya – Force10 – D-Link – EMC2 – F5 Networks – Fortinet – Hirschmann – Linksys – Moxa – MRV – Netgear – Nokia Siemens Networks – Palo Alto Network – Qlogic – RAD – Ruijie Networks – Supermicro – Synology – Telco Systems – TP-Link – Trendnet – Ubiqui – WatchGuard – ZTE
|
Physical Characteristics
|
||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 80°C | |
| Laser Type | Class 1 | |
|
Connectors
|
||

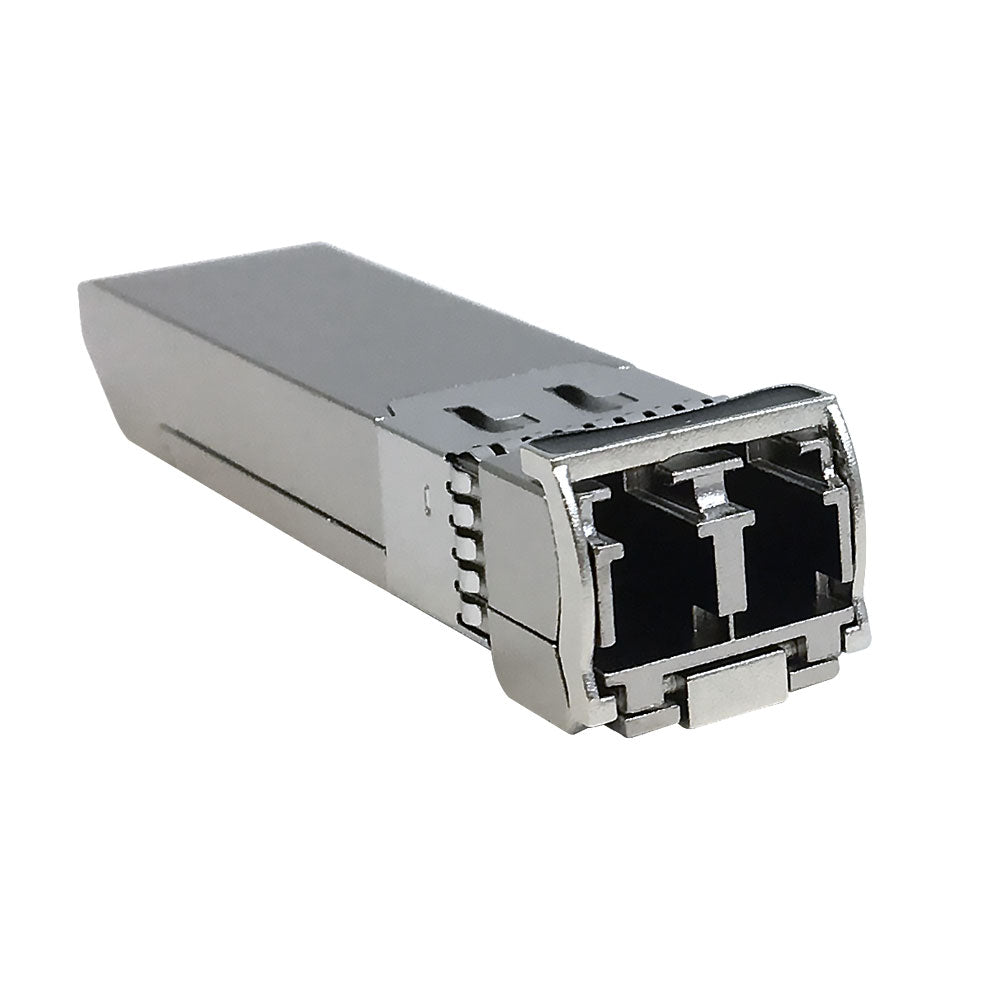

| Connector | LC Duplex | |
|
Performance
|
||
| Media Supported | 10GBase-SR Multimode Fiber | |
| Maximum Transmission Distance |
300m with 50/125µm OM3 MMF |
|
| Wave Length | 850nm | |
| DDM Support | Compliant | |
|
Certifications
|
||
| CE | Compliant | |
| FCC | Compliant | |
| RoHS | Compliant | |
|
Packaging Information
|
||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
|
Warranty Information
|
||
| Warranty | 5 Year Warranty | |
