Description

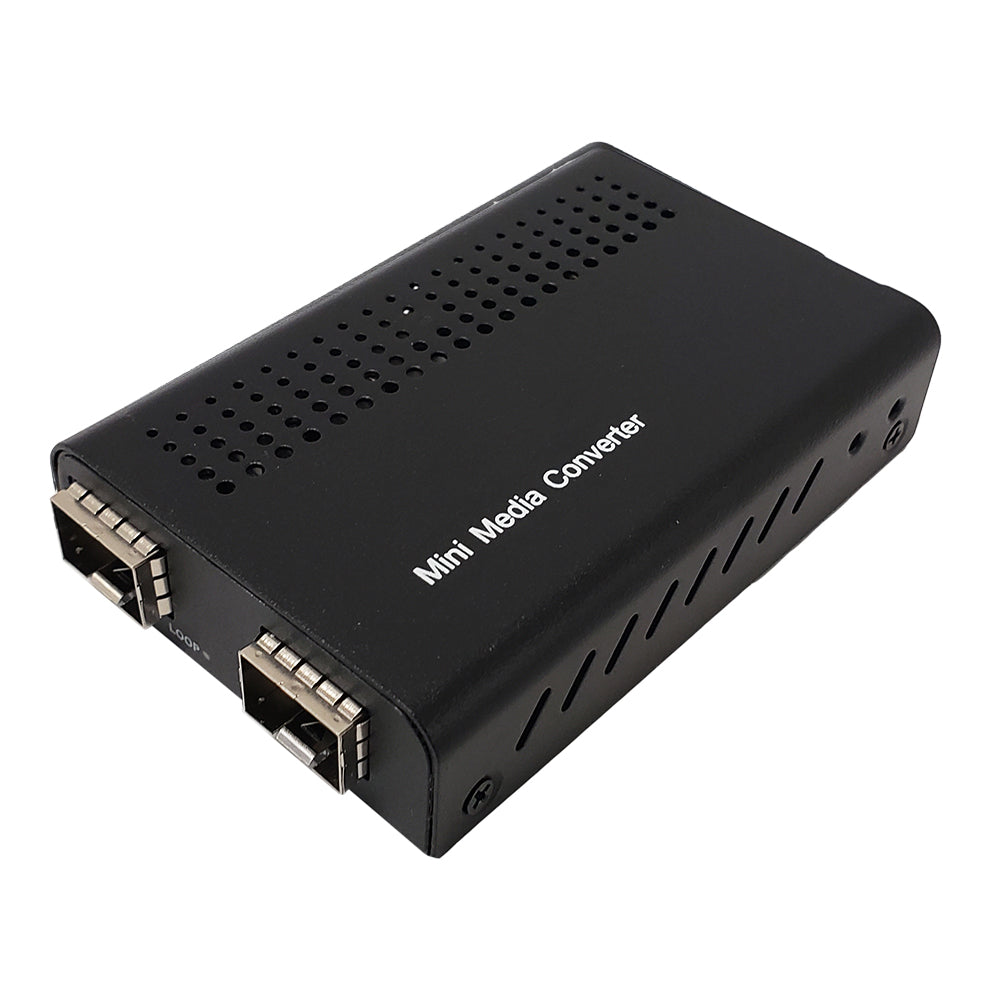

This bi-directional 10G singlemode to multimode media converter allows communication between singlemode and multimode fiber optic cable networks. It can be used for connection between fiber to fiber 10Gbps equipment function as fiber mode converter, or as fiber repeater for long distance transmission.
Note: Transceivers are not included.
Features
- To meet the requirement for Metro optical networks or optical access network high-speed interconnect, and transparent transmission
- 850nm, 1310nm, 1490nm and 1550nm wavelength conversion, with EDFA optical amplification and dispersion management, to extend the transmission distance
- Supporting Jumbo frame
- Support SAN, KAN, WAN, point to point transmission
- Proved Multi-data & multi-rate interfaces, to solve a variety of optical fiber resource constraints problem in network
- Transparent Transport and very low delay
- Support ITUT prescribed DWDM/CWDM wavelength
- Support hot plugging
- Full State LED display
- Easy installation
Application
Specifications
|
Physical Characteristics
|
||
|---|---|---|
| Color | Black | |
| Dimensions | 90mm x 60mm x 20mm (L x W x H) | |
| Housing | Metal | |
| Operating Temperature | 0°C ~ 50°C | |
| Storage Temperature | -10°C ~ 70°C | |
| Relative Humidity | 5% to 90% (non-condensation) | |
|
Power
|
||
| Power Supply | DC 12V/1A (external power) | |
| Power Adapter | AC110-240V ~50/60Hz 0.8A | |
| Power Consumption | ?3W (without SFP+ module) | |
|
Connectors
|
||
| Interface Type | SFP+ to SFP+ | |
|
Compatible Transceivers (Not Included)
|
||
| TR-SFP-10G-LRG | 10Gbase-LR SFP+ 1310nm SM LC Transceiver, 10km | |
| TR-SFP-10G-SRG | 10Gbase-SR SFP+ 850nm MM LC Transceiver, 300m | |
|
Performance
|
||
| Transmission Speed | 125Mb/s~11.7Gb/s | |

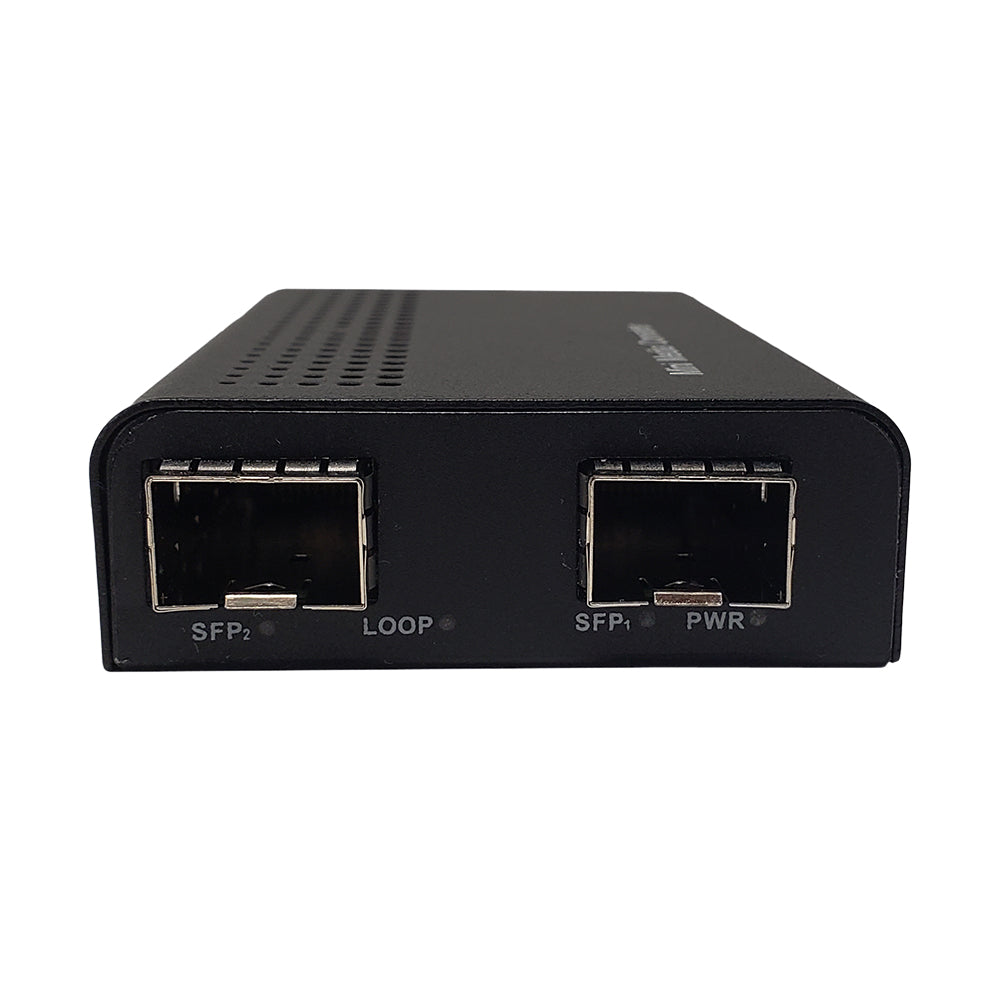

| LED Indicators | SFP2, LOOP, SFP1, PWR | |
| Latency | 3us Ultra-low | |
| Transmission Distance | Depends on Plug-in Fiber Transceiver | |
| DIP Switch | Loopback/LFP (Link Fault Pass Through)/ALS (Automatic Laser Shutdown) Function | |
| Maximum Packet Forwarding Rate | 14,880,950/S | |
| Standards and Protocols | IEEE802.3an, IEEE802.3ae | |
| Jumbo Frame | 16k | |
| MTBF (hrs) | > 50,000Hrs | |
|
Certifications
|
||
| CE | Compliant | |
| FCC | Compliant | |
| RoHS | Compliant | |
|
Packaging Information
|
||
| Package Quantity | 1 | |
| Product Weight | 0.85 lbs [0.03kg] | |
|
Warranty Information
|
||
| Warranty | 1 Year | |
