Description
Overview

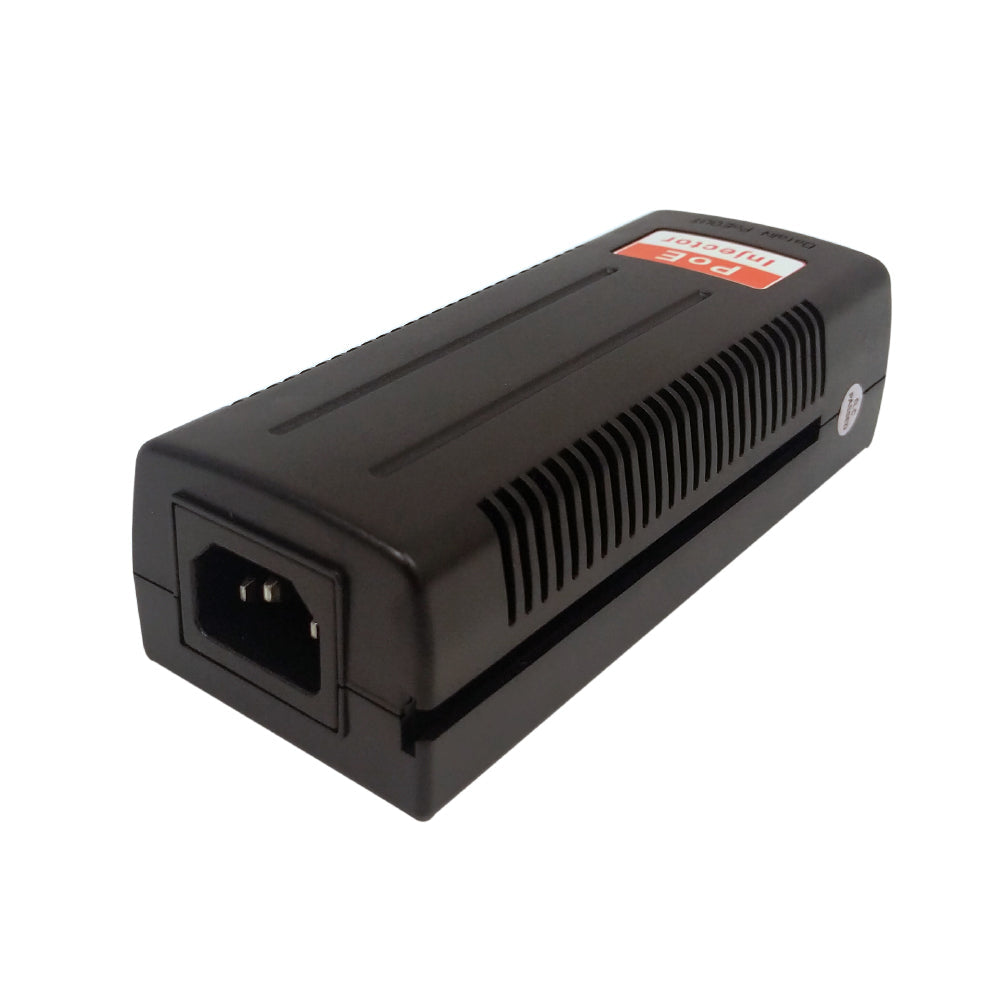

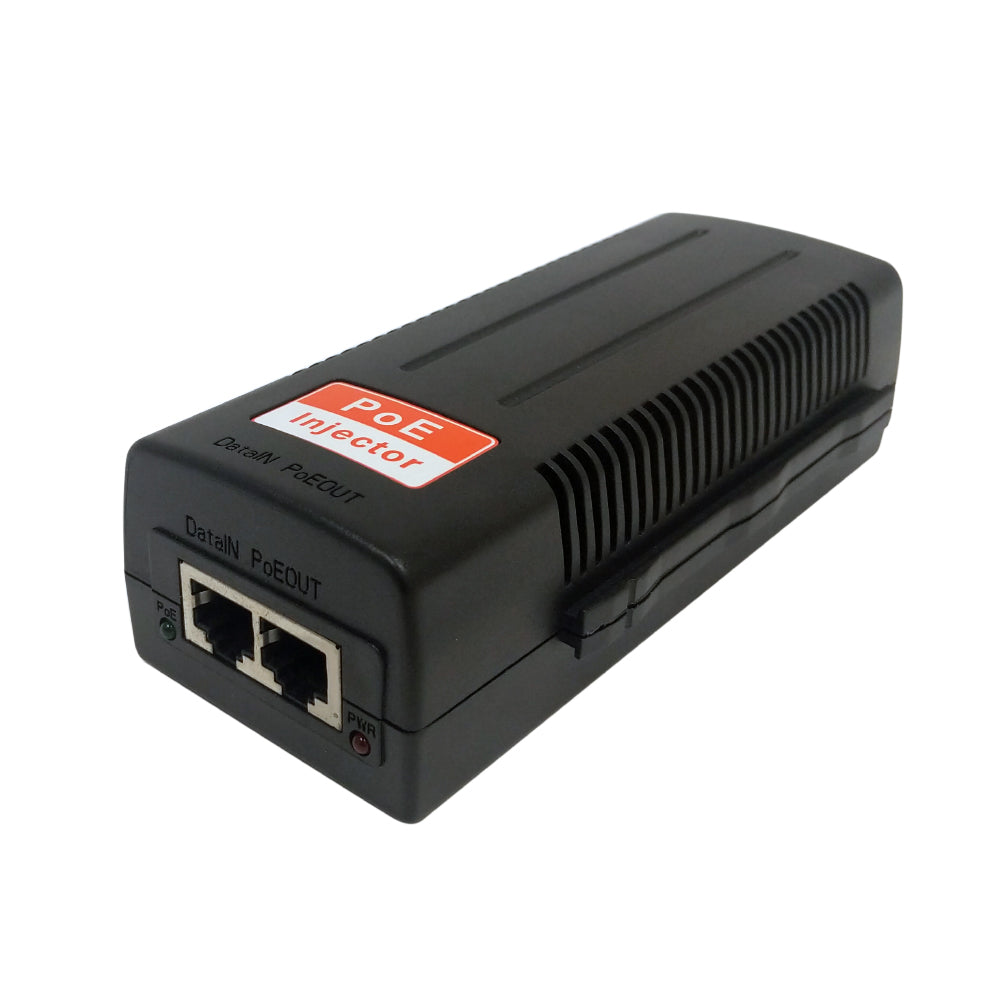

This compact 30 watts PoE injector is a single port passive PoE injector. It can convert standard 100 ~ 240V/AC power into low voltage DC that runs over existing LAN cable to power up IEEE 802.3af/at compliant network accessories and IP security cameras. No external power supply is required providing a compact, cost effective and reliable power solution over existing Ethernet infrastructure.
Features
- Up to 30W of power on 2-pairs
- Supports 100/1000 Base-T applications
- Power input LED indicators
- Internal AC/DC converter
- No need for external power supply
- Easy plug-and-play installation
- Multi-protection
Application
Specifications
|
Physical Characteristics
|
||||
|---|---|---|---|---|
| No. of Channels | 1 | |||
| Body Material | Plastic Enclosure | |||
| Operating Temperature | -10°C to 40°C | |||
| Storage Temperature | -10°C to 60°C | |||
| Operating Humidity | Maximum 85% (no condensation) | |||
| Storage Humidity | Maximum 90% (no condensation) | |||
| Dimensions | 145 x 60 x 40mm | |||
| Connectors | Shielded RJ45, EIA 568A and 568B | |||
| Indicators | PWR Indicator: AC Power PoE Indicator: Channel Power |
|||
|
Performance
|
||||
| Pass Through Data Rates | 100/1000 Mbps | |||
| Max Power | 30 Watts | |||
| PoE Pin Assignment & Polarity | 1/2 (-), 3/6(+) | |||
| PoE Output Voltage | DC 50V, 0.6A | |||
| User Port Power | 15.4W & 30W | |||
| AC Input Current/Voltage | 0.5A / 100 to 240 VAC | |||
| Power Consumption | 0.5 Watts | |||
| Frequency | 50 to 60 Hz | |||
| Over Current Protection | Compliant | |||
| Over Load Protection | Compliant | |||
| Over Voltage Protection | Compliant | |||
| Anti-interference Protection | Compliant | |||
|
Approval
|
||||
| c(UL)us | Compliant | |||
| CE, FCC | Compliant | |||
|
Environmental
|
||||
| RoHS | Compliant | |||
| Warranty Information | ||||
| Warranty | 2 Years | |||
|
Packaging Information
|
||||
| Package Quantity | 1 – PoE Injector 1- 3 foot C13 to 5-15P Power Cable |
|||
| Product Weight | 0.72 lbs [0.33kg] | |||
